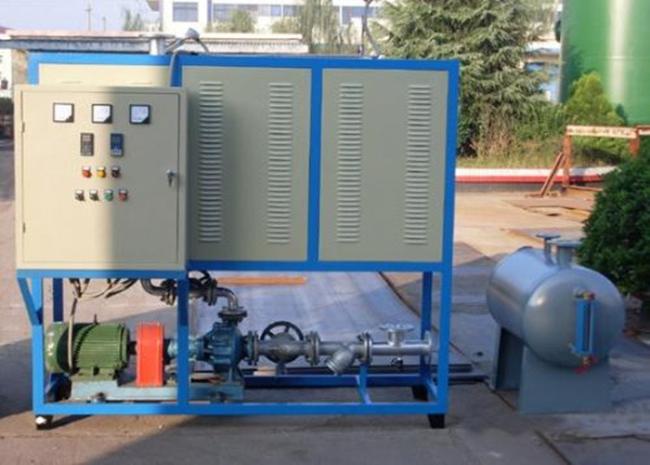

8t Thermal Oil Furnace , Electric Thermal Oil Boiler Environment Protection
8t High efficiency environment protection automatic electric heating thermal oil boiler
The electric heating thermal oil system is a new type of environmentally friendly thermal energy conversion equipment, often electric as the power source, through the original heat transfer (electric heating tube) will be the power of heat, heat transfer oil as a heat transfer medium through the high temperature oil pump in the system mandatory circulation, so that it is heated around, to meet the need for heat equipment continuous heat energy. Such equipment is characterized by the small size of the equipment, installation is more flexible, through the conversion of electrical energy to heat energy is very environmentally friendly, while high heat transfer efficiency can ensure that the lower operating pressure to obtain a higher operating temperature. After investigation, the device in the process of use will generally exist after a period of use of electricity increase, while heat exchange efficiency decline and other problems, resulting in the phenomenon of short thermal oil service life, the system after a period of use easy to form coking, carbon accumulation.
Part of product parameters
DRYL-5600
| NO; | Name | Unit | Number | Description |
| 1 | Rated thermal power | KW | 5600 | |
| 2 | Rated working power | Mpa | 1.0 | |
| 3 | Rated inlet/outlet ℃ | ℃ | 310/290 | |
| 4 | Design efficiency | ％ |
92.45(Oil) 92.13(Gas) |
|
| 5 | Boiler heat efficiency | ％ | More than 98% | Be added economizer |
| 6 | Design fuels | / | Light oil,Gas | |
| 7 | Fuels LHV | MJ/kg | 42.917(Oil) | |
| MJ/Nm3 | 35.438(Gas) | |||
| 8 | Consumption of fuels | kg/h | 70.77(Oil) | |
| Nm³/h | 86.53(Gas) | Be added economizer | ||
| 9 | Radiation heating area | m² | 7.199 | |
| Convection heating area | m² | 28.71 | ||
| GGH heating area | m² | 10.965 | ||
| 10 | Fume temperature | ℃ | 136.68(Oil) | |
| ℃ | 137.02 (Gas) | |||
| 11 | Fume temperature | ℃ | 60-80 | Be added economizer |
| 12 | Excess air coefficient | / | 1.15 | |
| 13 | Volume | m3 | 0.46 | |
| 14 | Bulk weight | kg | 4250 | |
| 15 | Bulk size | mm | 8956×2827×2781 | |
| 16 | Chimney | mm | Φ325×10000 | |
| 17 | Combustion model | / | Micro positive pressure | Chamber combustion |
| 18 | Boiler structure feature | Horizontal-type chamber combustion | ||
| 19 | Control way | Full automation/Manual | ||
| 20 | Ignition way | High-tension/Electrode | ||
Pre-sale service:
We help customer choose the best boiler model according to
different requirements of various industry. Before delivery we
will provide foundation drawing, layout drawing, boiler room
layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the
production process to ensure on time delivery with perfect
finished product.
After-sale service:
1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is
available.
3. Our engineers will held a training for boiler workers to
ensure the safe operation.
4. Free maintenance and repair for one year and lifelong
service.
