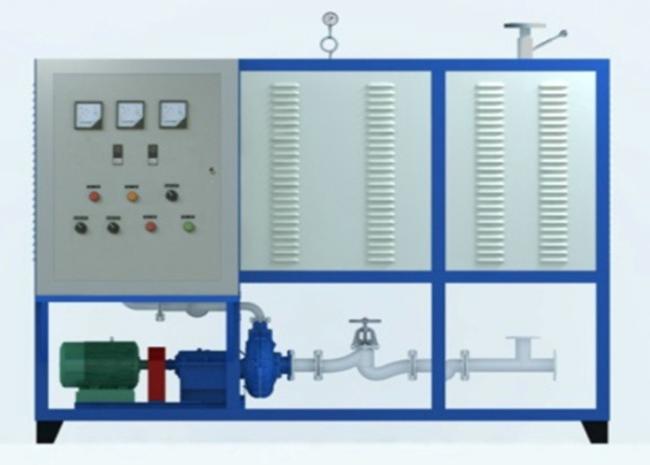

Non Pollution Electric Thermal Oil Boiler Automatic Running Large Output
Non Pollution High Efficiency Automatic Electric Heating Thermal Oil Boiler
The increase in electrical energy is due to the increase in power in the conversion of heat energy, because the electric heating pipe is in contact with the thermal oil lead to the local temperature is too high, and the thermal oil encountered high temperature after the production of fission, coking, carbon build-up is the product of high temperature fission, day after day accumulated to the surface of the electric heating tube, these coking, carbon accumulation is very good formation of high-strength thermal resistance, heat can not be transferred to the heating oil in a timely manner, if the heat ingrestic damage will not occur in time. Then when used in its equipment to regularly clean the equipment and electric heating pipe, and cleaning materials are generally thermal oil on-line cleaning agent, directly into the system running cycle, will actively and carbon accumulation from the electric heating pipe and equipment peeled off to gradually decompose into fine particles, restore the temperature required in the past. Heat-conducting oil in use also regularly test its indicators are normal, if beyond the national value to immediately stop use, cleaning equipment after replacing new oil.
Part of product parameters
YY(Q)W-700Y(Q)
| NO; | Name | Unit | Number | Description |
| 1 | Rated thermal power | KW | 700 | |
| 2 | Rated working power | Mpa | 1.0 | |
| 3 | Rated inlet/outlet ℃ | ℃ | 310/290 | |
| 4 | Design efficiency | ％ |
92.45(Oil) 92.13(Gas) |
|
| 5 | Boiler heat efficiency | ％ | More than 98% | Be added economizer |
| 6 | Design fuels | / | Light oil,Gas | |
| 7 | Fuels LHV | MJ/kg | 42.917(Oil) | |
| MJ/Nm3 | 35.438(Gas) | |||
| 8 | Consumption of fuels | kg/h | 70.77(Oil) | |
| Nm³/h | 86.53(Gas) | Be added economizer | ||
| 9 | Radiation heating area | m² | 7.199 | |
| Convection heating area | m² | 28.71 | ||
| GGH heating area | m² | 10.965 | ||
| 10 | Fume temperature | ℃ | 136.68(Oil) | |
| ℃ | 137.02 (Gas) | |||
| 11 | Fume temperature | ℃ | 60-80 | Be added economizer |
| 12 | Excess air coefficient | / | 1.15 | |
| 13 | Volume | m3 | 0.46 | |
| 14 | Bulk weight | kg | 4250 | |
| 15 | Bulk size | mm | 3256×1727×2181 | |
| 16 | Chimney | mm | Φ325×10000 | |
| 17 | Combustion model | / | Micro positive pressure | Chamber combustion |
| 18 | Boiler structure feature | Horizontal-type chamber combustion | ||
| 19 | Control way | Full automation/Manual | ||
| 20 | Ignition way | High-tension/Electrode | ||
YY(Q)W-1400Y(Q)
| NO; | Name | Unit | Number | Description |
| 1 | Rated thermal power | KW | 1400 | |
| 2 | Rated working power | Mpa | 1.0 | |
| 3 | Rated inlet/outlet ℃ | ℃ | 310/290 | |
| 4 | Design efficiency | ％ |
92.33(Oil) 92.03(Gas) |
|
| 5 | Boiler heat efficiency | ％ | More than 98% | Be added economizer |
| 6 | Design fuels | / | Light oil,Gas | |
| 7 | Fuels LHV | MJ/kg | 42.917(Oil) | |
| MJ/Nm3 | 35.438(Gas) | |||
| 8 | Consumption of fuels | kg/h | 138.93(Oil) | |
| Nm³/h | 169.53(Gas) | Be added economizer | ||
| 9 | Radiation heating area | m² | 13.124 | |
| Convection heating area | m² | 71.233 | ||
| GGH heating area | m² | 29.845 | ||
| 10 | Fume temperature | ℃ | 139.26(Oil) | |
| ℃ | 139.27 (Gas) | |||
| 11 | Fume temperature | ℃ | 60-80 | Be added economizer |
| 12 | Excess air coefficient | / | 1.15 | |
| 13 | Volume | m3 | 1.08 | |
| 14 | Bulk weight | kg | 8389 | |
| 15 | Bulk size | mm | 4869×2070×2698 | |
| 16 | Chimney | mm | Φ400×10000 | |
| 17 | Combustion model | / | Micro positive pressure | Chamber combustion |
| 18 | Boiler structure feature | Horizontal-type chamber combustion | ||
| 19 | Control way | Full automation/Manual | ||
| 20 | Ignition way | High-tension/Electrode | ||
Pre-sale service:
We help customer choose the best boiler model according to
different requirements of various industry. Before delivery we
will provide foundation drawing, layout drawing, boiler room
layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the
production process to ensure on time delivery with perfect
finished product.
After-sale service:
1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is
available.
3. Our engineers will held a training for boiler workers to
ensure the safe operation.
4. Free maintenance and repair for one year and lifelong
service.
