High Energy Efficient Electric Thermal Oil Boiler , Thermal Oil Furnace

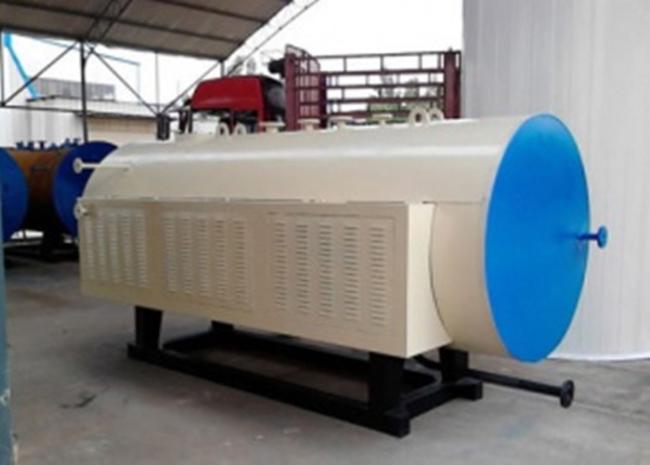

600,000 Kcal High Efficiency Electric Heating Thermal Oil Boiler
Thermal oil heater is a new type, safe, energy-efficient, low pressure (under normal pressure or lower pressure) and can provide high temperature and heat heat special industry furnace, to thermal oil as a heat carrier, through the heat oil pump heat carrier circulation, heat transfer to the use of heat equipment. It is based on coal, heavy oil, light oil, other combustible materials of the known gas body as fuel, thermal oil as the thermal carrier.
1, according to the use of thermal oil in different forms can be divided into gas addition, liquid-phase thermal oil heater;
2, according to the use of fuel and heating sources can be divided into coal-fired road, gas, fuel and electric heating heating heating oil heater;
3, according to the shape of the furnace can be divided into square box type, round back-shaped thermal oil furnace;
4, according to the furnace body structure can be divided into a whole, split and fast-loading thermal oil heater.
Parameters
DRYL-700
| NO; | Name | Unit | Number | Description |
| 1 | Rated thermal power | KW | 700 | |
| 2 | Rated working power | Mpa | 1.0 | |
| 3 | Rated inlet/outlet ℃ | ℃ | 310/290 | |
| 4 | Design efficiency | ％ |
92.45(Oil) 92.13(Gas) |
|
| 5 | Boiler heat efficiency | ％ | More than 98% | Be added economizer |
| 6 | Design fuels | / | Light oil,Gas | |
| 7 | Fuels LHV | MJ/kg | 42.917(Oil) | |
| MJ/Nm3 | 35.438(Gas) | |||
| 8 | Consumption of fuels | kg/h | 70.77(Oil) | |
| Nm³/h | 86.53(Gas) | Be added economizer | ||
| 9 | Radiation heating area | m² | 7.199 | |
| Convection heating area | m² | 28.71 | ||
| GGH heating area | m² | 10.965 | ||
| 10 | Fume temperature | ℃ | 136.68(Oil) | |
| ℃ | 137.02 (Gas) | |||
| 11 | Fume temperature | ℃ | 60-80 | Be added economizer |
| 12 | Excess air coefficient | / | 1.15 | |
| 13 | Volume | m3 | 0.46 | |
| 14 | Bulk weight | kg | 4250 | |
| 15 | Bulk size | mm | 3256×1727×2181 | |
| 16 | Chimney | mm | Φ325×10000 | |
| 17 | Combustion model | / | Micro positive pressure | Chamber combustion |
| 18 | Boiler structure feature | Horizontal-type chamber combustion | ||
| 19 | Control way | Full automation/Manual | ||
| 20 | Ignition way | High-tension/Electrode | ||
Pre-sale service:
We help customer choose the best boiler model according to
different requirements of various industry. Before delivery we
will provide foundation drawing, layout drawing, boiler room
layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the
production process to ensure on time delivery with perfect
finished product.
After-sale service:
1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is
available.
3. Our engineers will held a training for boiler workers to
ensure the safe operation.
4. Free maintenance and repair for one year and lifelong
service.
