2400000 Kcal Electric Thermal Oil Boiler , Electric Thermic Fluid Heater
2,400,000 Kcal High Efficiency Electric Heating Thermal Oil Boiler

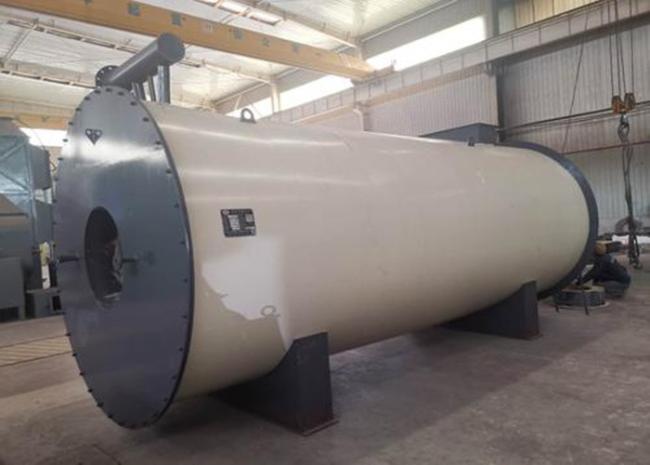

Conductive thermal oil furnace is the electric heater directly inserted into the organic carrier (thermal oil) direct heating, and through the high temperature oil pump liquid phase circulation to the heated heating oil to the heating equipment, and then by the heating equipment outlet back to the electric heating furnace heating, forming a complete cycle heating system. The electric heating thermal conductive oil furnace uses several explicit temperature control instrument control, and has the function of super temperature alarm, low oil level alarm and super-pressure alarm.
Parameters
DRYL-4200Y(Q)
| NO; | Name | Unit | Number | Description |
| 1 | Rated thermal power | KW | 4200 | |
| 2 | Rated working power | Mpa | 1.0 | |
| 3 | Rated inlet/outlet ℃ | ℃ | 310/290 | |
| 4 | Design efficiency | ％ |
92.45(Oil) 92.13(Gas) |
|
| 5 | Boiler heat efficiency | ％ | More than 98% | Be added economizer |
| 6 | Design fuels | / | Light oil,Gas | |
| 7 | Fuels LHV | MJ/kg | 42.917(Oil) | |
| MJ/Nm3 | 35.438(Gas) | |||
| 8 | Consumption of fuels | kg/h | 70.77(Oil) | |
| Nm³/h | 86.53(Gas) | Be added economizer | ||
| 9 | Radiation heating area | m² | 7.199 | |
| Convection heating area | m² | 28.71 | ||
| GGH heating area | m² | 10.965 | ||
| 10 | Fume temperature | ℃ | 136.68(Oil) | |
| ℃ | 137.02 (Gas) | |||
| 11 | Fume temperature | ℃ | 60-80 | Be added economizer |
| 12 | Excess air coefficient | / | 1.15 | |
| 13 | Volume | m3 | 0.46 | |
| 14 | Bulk weight | kg | 4250 | |
| 15 | Bulk size | mm | 6000×3000×2800 | |
| 16 | Chimney | mm | Φ325×10000 | |
| 17 | Combustion model | / | Micro positive pressure | Chamber combustion |
| 18 | Boiler structure feature | Horizontal-type chamber combustion | ||
| 19 | Control way | Full automation/Manual | ||
| 20 | Ignition way | High-tension/Electrode | ||
Pre-sale service:
We help customer choose the best boiler model according to
different requirements of various industry. Before delivery we
will provide foundation drawing, layout drawing, boiler room
layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the
production process to ensure on time delivery with perfect
finished product.
After-sale service:
1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is
available.
3. Our engineers will held a training for boiler workers to
ensure the safe operation.
4. Free maintenance and repair for one year and lifelong
service.
