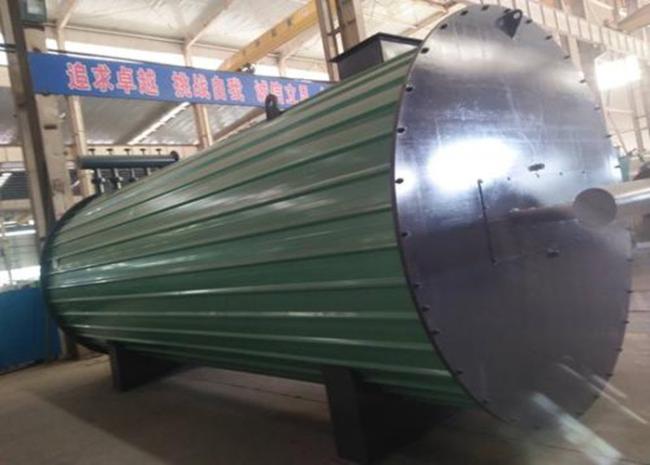

Electric Heating Thermic Oil Boiler 4800000 Kcal Explosion Proof Simple Operation
4,800,000 Kcal High Efficiency Electric Heating Thermal Oil Boiler
Although the working pressure of the conductive thermal oil furnace is relatively low, but the temperature of the thermal conduction fluid in the furnace is high, and most of them have the characteristics of inflammable and explosive, once in operation, will cause fire, explosion and other accidents, and even cause casualties and property damage. Therefore, the safe operation and management of organic heat carrier furnace must be highly heavy. Because it has the advantages of high temperature (capacity above 320 degrees C) low pressure (0.3-0.5MPa), and its heating temperature can be precisely controlled, it can replace the original steam boiler heating. At the same time, the equipment does not need water treatment equipment and no steam boiler running, risk, drip, leakage and other heat loss, so its one-time investment saving, low operating costs, is a safe, efficient, energy-saving heating equipment.
Parameters
DRYL-5600Y(Q)
| NO; | Name | Unit | Number | Description |
| 1 | Rated thermal power | KW | 5600 | |
| 2 | Rated working power | Mpa | 1.0 | |
| 3 | Rated inlet/outlet ℃ | ℃ | 310/290 | |
| 4 | Design efficiency | ％ |
92.45(Oil) 92.13(Gas) |
|
| 5 | Boiler heat efficiency | ％ | More than 98% | Be added economizer |
| 6 | Design fuels | / | Light oil,Gas | |
| 7 | Fuels LHV | MJ/kg | 42.917(Oil) | |
| MJ/Nm3 | 35.438(Gas) | |||
| 8 | Consumption of fuels | kg/h | 70.77(Oil) | |
| Nm³/h | 86.53(Gas) | Be added economizer | ||
| 9 | Radiation heating area | m² | 7.199 | |
| Convection heating area | m² | 28.71 | ||
| GGH heating area | m² | 10.965 | ||
| 10 | Fume temperature | ℃ | 136.68(Oil) | |
| ℃ | 137.02 (Gas) | |||
| 11 | Fume temperature | ℃ | 60-80 | Be added economizer |
| 12 | Excess air coefficient | / | 1.15 | |
| 13 | Volume | m3 | 0.46 | |
| 14 | Bulk weight | kg | 4250 | |
| 15 | Bulk size | mm | 9000×3687×2900 | |
| 16 | Chimney | mm | Φ325×10000 | |
| 17 | Combustion model | / | Micro positive pressure | Chamber combustion |
| 18 | Boiler structure feature | Horizontal-type chamber combustion | ||
| 19 | Control way | Full automation/Manual | ||
| 20 | Ignition way | High-tension/Electrode | ||
Pre-sale service:
We help customer choose the best boiler model according to
different requirements of various industry. Before delivery we
will provide foundation drawing, layout drawing, boiler room
layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the
production process to ensure on time delivery with perfect
finished product.
After-sale service:
1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is
available.
3. Our engineers will held a training for boiler workers to
ensure the safe operation.
4. Free maintenance and repair for one year and lifelong
service.
