Commercial 50mm-80mm Thickness Insulated Sectional Garage Door With Optional Ventilation

Price Negotiable
Price: NEGOTIATION
MOQ: 1 UNIT
Delivery Time: 10-20 days depend on quantity
Brand: DESEO
Product Description

Commercial Sectional Doors 50mm-80mm Thickness Insulated Sectional Garage Door with Optional Ventilation

Product Description:

High performance color coated steel material thermal Insulated Sectional are a versatile and durable option for commercial and industrial settings, offering both functionality and energy efficiency. These sectional overhead doors are designed to provide reliable insulation, security, and ease of operation, making them ideal for a wide range of applications.



Available in a variety of colors including white, brown, gray, and more, these insulated sectional overhead doors can be tailored to complement the aesthetics of your building. The color options allow for seamless integration with your existing design scheme or the opportunity to make a bold statement with a contrasting hue.



Constructed with high-quality steel material, the Insulated Sectional Doors are built to withstand the demands of daily use in commercial and industrial settings. The steel construction provides durability and strength, ensuring long-lasting performance and protection for your property.



Features:

  • Product Name: Insulated Sectional Doors
  • Ventilation: Optional
  • Application: Warehouse, Factory, Auto, Mall
  • Colors: White, Brown, Gray, Etc.
  • Size: Customized
  • Panel Design: Flat Or Contoured


Technical Parameters:

Ventilation Optional
Hardware High-quality Hinges, Locks, Handles, Etc.
Panel Design Flat Or Contoured
Finish Powder Coated
Colors White, Brown, Gray, Etc.
Weatherstripping Vinyl Or Brush
Size Customized
Insulation Polyurethane Foam
Material Steel
Application Warehouse, Factory, Auto, Mall



Technical Data:



Item Description
Material SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate
Thickness of Panel Mateiral 0.326 / 0.45mm / 0.55mm / 0.6mm
Thickness of Guiding Rail Gualvanized Steel,thickness: 2mm
Thickness of Panel 40mm / 50mm
Width of Panel 430mm / 550mm
Density of Sandwiches 48kg/m3
Surface Treatment Power coating,thickness of coating:30um
Heat Preservation 4.5W/m.h
Wind Resistance Beaufort scale 11, 28m/s
Noise Level: ≤60db
Sound Insulation Level 24 Db
Fire Retardation: Class A
Speed 0.2-0.4m / s
Max Dimension 12m * 8m
Sealing Performance EPDM rubber all round sealing : two side, top, bottom,between door panels
Steel cord Flexible ,3.8mm
Power Supply 380V 50Hz / 220V 50Hz
Service Life 10 years
Emergency Operation Manual Hoist Chain to open the door in case of power off
Balance System a. Balance the weight of door through the torsion spring
b. Easily manual operation: 140N to open
c. Spring brake device:Anti-broken device
d. Service Life:100 thousand open & close
e. Prolong the service life of the motor
Safety Airbag protection, door anti-fall device, wire rope anti-break protection device.
Optional Item Window,pedestrian door



Specifications:

1. Our factory's Qualified automatic industrial door reach to official standard of European Union, Complete set of industrial door has tested, checked and certified by Italy Test institute which is designated and Authorized by European Union

2. Industrial door 's each section panel joint is adopt "Finger-protection"(Pinch-resistant) safety Design in order to avoid any finger injury when door open and close.

3. Industrial door size and Color can be customized according to customer's requiremtns. Full range of Colors such as Green, Brown, Cream, Red, Grey, Blue, Black, Wood Golden Oak, Mahogany and Cherry colors, etc.

4. Double thickers layer of steel plate with Polyurethane Foam Inside --- Heat Insulation.

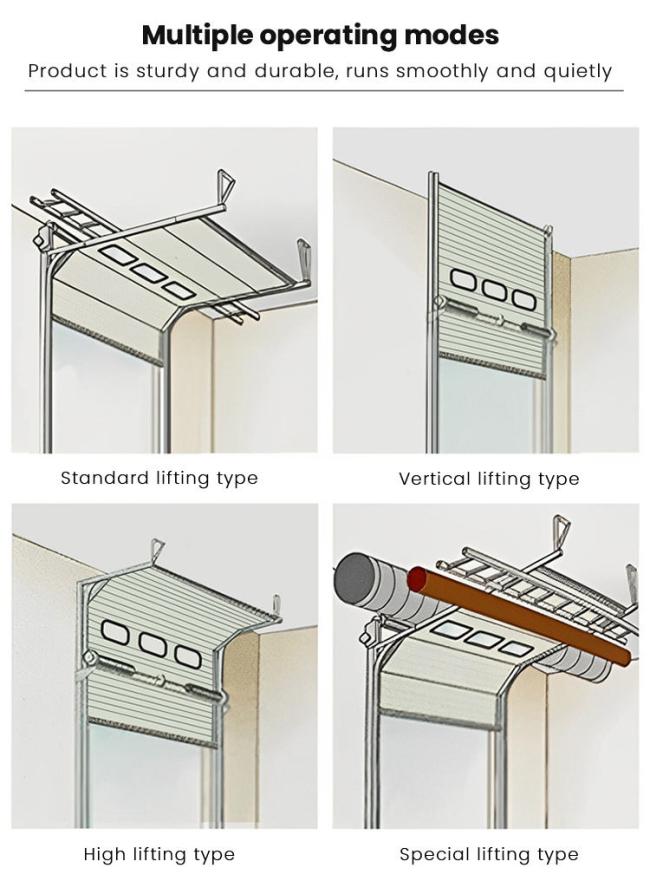

5. Industrial door with Double Track system in order to avoid any installation problem caused by lower headroom distance.



Packing and Shipping:

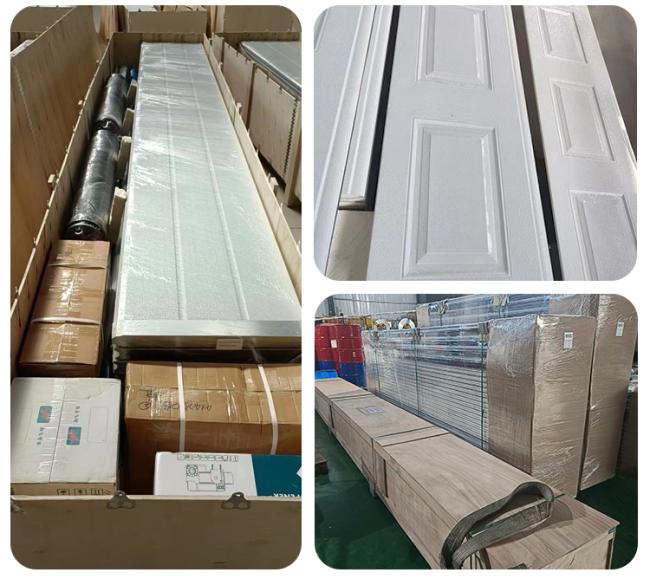

Product Packaging for Insulated Sectional Doors:

Each insulated sectional door is carefully wrapped in protective foam and plastic wrap to prevent any damage during transportation.

Shipping Information:

Our insulated sectional doors are shipped in sturdy cardboard boxes to ensure safe delivery. We partner with trusted shipping carriers to deliver your order in a timely manner.
