Automatic vertical Industrial lift interior High Speed Spiral Door Sandwich Panel 70mm For Outdoor Passage

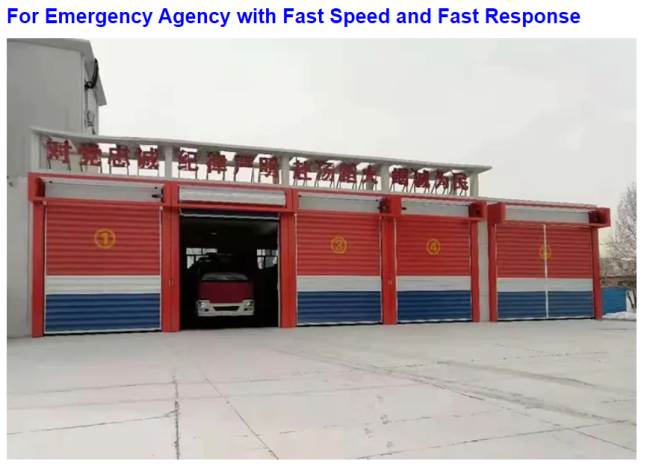

Aluminum high speed door,as a new-type metal industrial door, combines the features of high efficiency, insulation, energy saving, security, wind resistance and environmental protection. The opening speed is up to 1.8m/s, making the product applicable for indoor and outdoor logistics channels requiring frequent high-speed traffic.
| Panel Color | White RAL9010,White Aluminium RAL9006,Other Colors Can Be Customized |
| Max. size | W:9000mm,H:8000mm |
| Open speed | 0.6m/s~2.0m/s (adjusatble) |
| Close speed | 0.6m/s (adjustable) |
| Standard thickness of door panel | 44mm |
| Thermal insulation of door panel | K≤1.5W/(m²·K) |
| Finishing | Anodizing + organic coloring |
| Wind load resistance | 32m/s (≤12F) |
| Working voltage/frequency | 380V/14A/50Hz |
| Material | Aluminum Alloy |
| Service life | > 500,000 times |
| MOQ | 1 Set |
| OEM | Accepted |
| Packing | Wooden Box |
| Delivery Time | 15-25 Days |
Construction
Double-walled 220mm aluminum slats
Integral weatherseal between the aluminum slats
Heavy-duty hinge system for door panel assembly
Durable powder coated steel side columns and head console (excludes US/R models)
Extension springs in side column
Options
Insulated slats
Vision slats
Ventilated slats
Hood and motor covers
Classic RAL and custom color match powder coated finish
