Product introduction

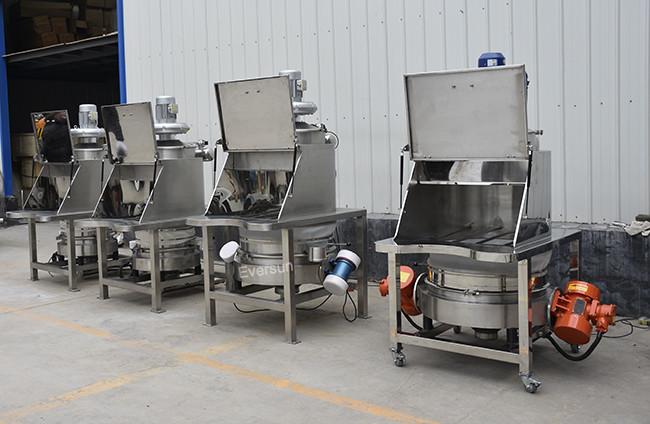

TLZ Dust-Free Small Bag Discharging Station Dumping Station With Sieve

It is a bag opening equipment that manually breaks the bag and pours the material into the unloading station. According to the technological requirements, it can be used for unloading small bags of powdery materials with vibrating hopper or mixing hopper. This machine is equipped with new dust collector equipment and vibrator auxiliary feeding, so that there is no dust, smooth, no extravagance and waste of raw materials in the whole feeding process. It is a more ideal manual service dust-free feeding station machine equipment in China at the present stage.

Work flow of dust-free unloading station

The operator places the bag on the bracket and pushes it into the grid. Next, the operator will cut a vertical slit in the material bag, and pour the shaking bag to empty it, the material falls into the hopper by gravity, and can be connected with the conveying unit equipment through the bottom of the conveying pipe, the material is effectively output to the location. The built-in air filter can collect the dust produced in the process of empting the bag. The filter is through the reverse compressed air injection to clean, clean dust and fall back into the hopper, can achieve continuous uninterrupted feeding.

Product parameter











Product features

● Easy to clean, hygienic standard design.

● Feeding platform for negative pressure, no dust leakage dust-free environmental protection, feeding process of materials without loss, to protect the clean environment.

● Feeding process operation safety, reduce labor intensity, protect personnel safety production.

● It can be connected with positive pressure/negative pressure conveying for the production line.

● The equipment can be applied to a variety of production processes, not only as a single powder feeding and unloading

equipment, but also connected to spiral, negative pressure vacuum feeder and other forms of conveying equipment to achieve dust-free feeding.

 Function configuration

Feeding specification: 0~50KG/BAG

Feeding mode: single feeding port/double feeding port

Material lifting: manual/lifting bucket/lift truck/forklift truck

Broken arch type: pneumatic high frequency vibration/activated hopper vibration

Backblow type: pneumatic pulse

Optional equipment: iron remover/single-layer vibrating screen/coarse crusher/bag collection device/measuring, weighing and conveying application range

It is mainly used for unpacking and feeding 25KG or 50KG small bag packaging such as plastic resin, cement and food additives and other dry powder and granular materials in plastic, rubber, food, medicine, chemical and other fields.
