Product introduction

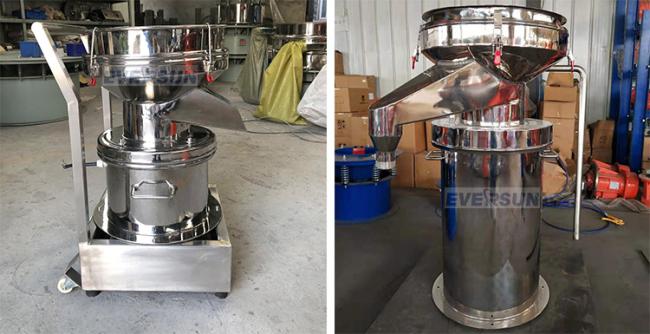

Stainless Steel 450 Type Movable Vibration Filter Sieve Machine For Coconut Oil

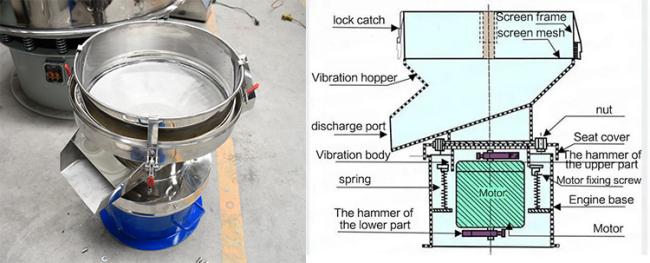

450 type vibration filter is suitable for all industries manufacturers single-layer screening and filtration, it is mainly composed of lock, vibration bucket, screen, discharge port, vibration motor, spring, frame and other parts, stainless steel (304) material, small model, light weight, can move freely, do not occupy space. Processing production is not much or less impurity materials, in food, medicine, chemical industry, metallurgy, abrasives, ceramics, coatings, diamond, mining. Mesh is not blocked, powder does not fly. It can be screened up to 400 mesh.

It uses a new special power generator, three-dimensional power is more prominent, it can screen dry, wet, fine, rough, heavy, light, 0 ~ 400 purpose material, liquid, slurry, 0 ~ 600 mesh can be filtered; 450 is the model of this machine. Besides this model, we can also customize the machine according to your requirement.

Product parameter

Product features

1. Fast addition, easy disassembly and installation, so that the cleaning method becomes more simple.

2. Large aperture discharge channel, discharge quickly, improve work efficiency.

3. The bottom is installed with universal wheel, easy to move, avoid manual handling.

4. The body is made of 304 stainless steel, so that the service life is more lasting.

5. Metal woven screen, mesh number can be customized, more delicate material impurity removal.

6. It can be designed like a trolley, and the working location can be changed flexibly.

7. Automatic discharge of materials, continuous operation.

Working principle

450 type vibration filter is a new type of vertical vibration motor as the vibration source, vertical vibration motor on the lower end is equipped with a partial weight, can produce horizontal, vertical, tilt of the three dimensional motion, vibration force through the plate transfer to the screen frame and materials to achieve excellent classification. By adjusting the phase Angle of the upper and lower eccentric weights, the movement path of the material on the screen surface can be changed to ensure that the material is fully graded.
