Product introduction

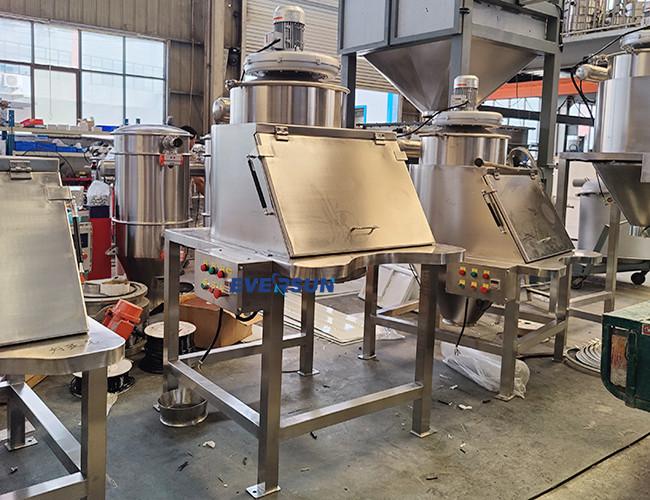

Ton bag/small bag dust-free discharge station for powder conveying

 Dust-free discharge station is a kind of feeding equipment, which is suitable for unpacking, feeding, screening and unloading of small and medium-sized bag materials in food, pharmaceutical, chemical and metallurgical industries, especially for manual feeding and pre-screening of powder materials.

This machine can be dust-free when feeding, so it is called dust-free. When the material in the bag is released by this feeding machine, dust will float up when the bag is released, which will have no impact on the factory environment. Therefore, this dust-free feeding machine can solve this problem. Why there is no dust in this machine? The main reason is that the whole process is closed and airtight when the machine is designed, and the machine is not allowed to crack when welding, so that the outside material will not run into the inside of the machine, and the material inside the machine will not be exposed to the outside.

Product parameter







Product features

● Easy to clean, hygienic standard design.

● Feeding platform for negative pressure, no dust leakage dust-free environmental protection, feeding process of materials without loss, to protect the clean environment.

● Feeding process operation safety, reduce labor intensity, protect personnel safety production.

● It can be connected with positive pressure/negative pressure conveying for production line feeding.

● Dust-free discharge station generally put material is not very good liquidity material, when the machine shaking can also filter the material, classification, so that different materials will be transported to different places.

Dust-free discharge station can be connected to rotary discharge valve, butterfly valve, cartridge valve, powder metering valve, vacuum feeding machine, vacuum conveyor, screw conveyor, vibrating screen, bin, hopper, reversing valve and other equipment.


Application case

 The equipment is suitable for food, pharmaceutical, chemical, metallurgical industries of small and medium-sized bag material unpacking, delivery, screening and unloading, especially suitable for powder manual feeding and pre-screening, the equipment is mainly used in many industries of powder dust-free closed feeding, granular material, sheet raw materials, powder in the medium and short distance conveying, distribution occasions, It is widely used in the production process of pharmaceutical, food, chemical, ceramics, feed, pigment, dye, agricultural and sideline products.
