Customized 316L/304 Stainless Steel Materials Ultrasonic Vibrating Sieve For Screening And Filtration
Customized 316L/304 Stainless Steel Materials Ultrasonic Vibrating Sieve For Screening And Filtration

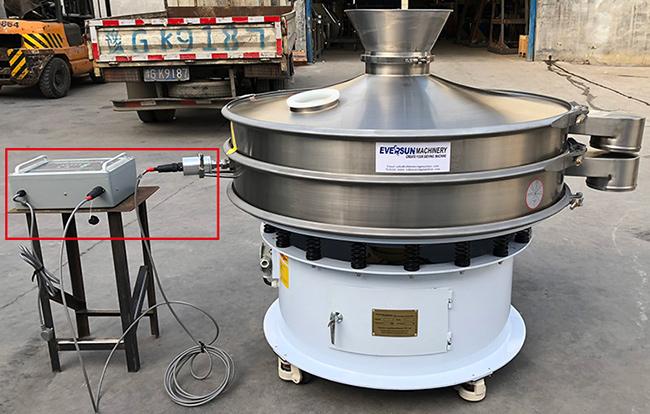

S49-AC series ultrasonic vibrating screen is to convert 220V, 50Hz or 110V, 60Hz electrical energy into 18KHz high-frequency electrical energy, input the ultrasonic transducer, and turn it into 18KHz mechanical vibration, so as to achieve the purpose of efficient screening and net cleaning, so that ultrafine powder screening is easy. Based on the traditional vibrating screen, the system introduces a low amplitude and high frequency ultrasonic vibration wave (mechanical wave) on the screen to improve the screening performance of ultrafine separation. Especially suitable for high value-added fine split users.
Feture:
- Product Name: Ultrasonic Vibrating Screen
- Service: Customized Machine Can Be Available
- Screen Size: 200-2600 Mm
- Screen Layer: 1-5 Layers
- Packing: Mood
- Application: Food, Chemical, Pharmaceutical, Etc.
Technical Parameters:
| Model | Power (kw) |
Mesh size | Sieve effective diameter(mm) | Layer(s) | Dimension of machine(mm) | ||
| Length | Width | Height | |||||
| BC-400 | 0.18 | 2-635 | 355 | 1~5S | 580 | 580 | 560-760 |
| BC--600 | 0.55 | 2-635 | 555 | 800 | 800 | 680-880 | |
| BC-800 | 0.75 | 2-635 | 755 | 900 | 900 | 780-1080 | |
| BC--1000 | 1.1 | 2-635 | 925 | 1160 | 1160 | 880-1180 | |
| BC-1200 | 1.75 | 2-635 | 1125 | 1360 | 1360 | 980-1360 | |
| BC-1500 | 2.2 | 2-635 | 1425 | 1850 | 1850 | 1130-1550 | |
| BC--1800 | 3 | 2-635 | 1725 | 2200 | 2200 | 1360-1680 | |
| BC--2000 | 3.7 | 2-635 | 1910 | 2340 | 2340 | 1360-1680 | |
characteristic
The EXZS ultrasonic screening machine is designed to be easy to use and efficient, with a noise level of ≤75dB and a structure material option of 316L stainless steel, 304 stainless steel, or carbon steel. It can be configured with 1-5 layers of screens and a screen mesh range of 20 microns to 20 mm, making it suitable for a wide range of product applications.
The EXZS ultrasonic vibration screen is certified with ISO and CE, ensuring that it meets the highest quality standards. It has a minimum order quantity of 1 set, with a negotiable price, and is packaged in a standard export wooden box. With a delivery time of within 7-15 work days and payment terms of T/T, Western Union, MoneyGram, and L/C, it is easy to acquire and use.
Overall, the EVERSUN EXZS ultrasonic vibrating screen is an essential tool for industries that require high purity and efficiency in their screening processes. Its versatility, ease of use, and high-quality construction make it a must-have for any business looking to improve their product screening capabilities.
The EXZS ultrasonic screening machine is designed to be easy to use and efficient, with a noise level of ≤75dB and a structure material option of 316L stainless steel, 304 stainless steel, or carbon steel. It can be configured with 1-5 layers of screens and a screen mesh range of 20 microns to 20 mm, making it suitable for a wide range of product applications.
The EXZS ultrasonic vibration screen is certified with ISO and CE, ensuring that it meets the highest quality standards. It has a minimum order quantity of 1 set, with a negotiable price, and is packaged in a standard export wooden box. With a delivery time of within 7-15 work days and payment terms of T/T, Western Union, MoneyGram, and L/C, it is easy to acquire and use.
Overall, the EVERSUN EXZS ultrasonic vibrating screen is an essential tool for industries that require high purity and efficiency in their screening processes. Its versatility, ease of use, and high-quality construction make it a must-have for any business looking to improve their product screening capabilities.
The EXZS ultrasonic screening machine is designed to be easy to use and efficient, with a noise level of ≤75dB and a structure material option of 316L stainless steel, 304 stainless steel, or carbon steel. It can be configured with 1-5 layers of screens and a screen mesh range of 20 microns to 20 mm, making it suitable for a wide range of product applications.
The EXZS ultrasonic vibration screen is certified with ISO and CE, ensuring that it meets the highest quality standards. It has a minimum order quantity of 1 set, with a negotiable price, and is packaged in a standard export wooden box. With a delivery time of within 7-15 work days and payment terms of T/T, Western Union, MoneyGram, and L/C, it is easy to acquire and use.
Overall, the EVERSUN EXZS ultrasonic vibrating screen is an essential tool for industries that require high purity and efficiency in their screening processes. Its versatility, ease of use, and high-quality construction make it a must-have for any business looking to improve their product screening capabilities.
The EXZS ultrasonic screening machine is designed to be easy to use and efficient, with a noise level of ≤75dB and a structure material option of 316L stainless steel, 304 stainless steel, or carbon steel. It can be configured with 1-5 layers of screens and a screen mesh range of 20 microns to 20 mm, making it suitable for a wide range of product applications.
The EXZS ultrasonic vibration screen is certified with ISO and CE, ensuring that it meets the highest quality standards. It has a minimum order quantity of 1 set, with a negotiable price, and is packaged in a standard export wooden box. With a delivery time of within 7-15 work days and payment terms of T/T, Western Union, MoneyGram, and L/C, it is easy to acquire and use.
Overall, the EVERSUN EXZS ultrasonic vibrating screen is an essential tool for industries that require high purity and efficiency in their screening processes. Its versatility, ease of use, and high-quality construction make it a must-have for any business looking to improve their product screening capabilities.
Packing and Shipping:
Product Packaging:
- The ultrasonic vibrating screen will be packed in a sturdy wooden crate to ensure safe transportation.
- The crate will be sealed with strong straps to prevent any movement or damage during shipping.
- Inside the crate, the product will be securely padded and protected with foam and bubble wrap.
- The packaging will include a user manual and necessary accessories.
Shipping:
- The ultrasonic vibrating screen will be shipped via a reliable courier service.
- Shipping costs will vary depending on the destination and shipping method selected.
- Delivery times will also vary depending on the destination, but we will do our best to ensure a timely delivery.
- Customers will be provided with a tracking number so they can monitor the progress of their shipment.
- Please note that any customs fees or import duties will be the responsibility of the customer
![]()
