Custom 316L/304 Stainless Steel Powder Particle Rotary Vibrating Screen
Custom 316L/304 Stainless Steel Powder Particle Rotary Vibrating Screen
product presentation

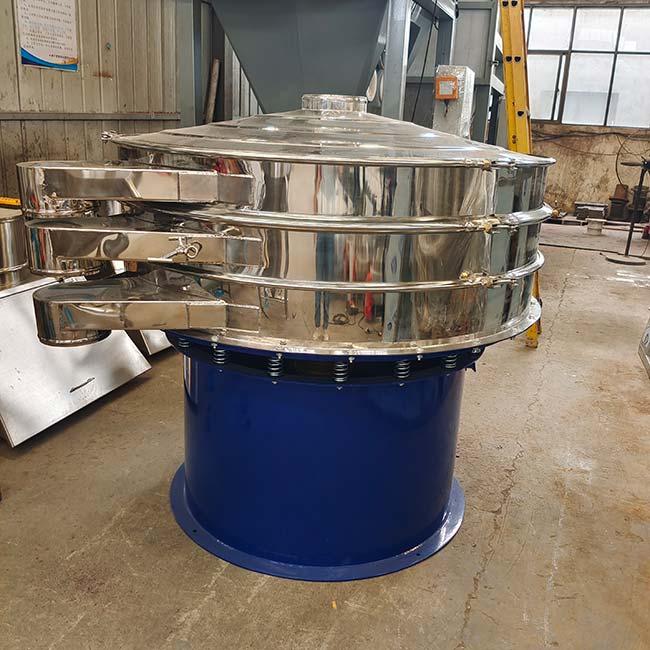

Rotary vibrating screen is a universal precision screening and filtration equipment, it is a special, high-precision fine grain screening machinery, mainly suitable for screening particles, flake materials, fine powder, micro powder, ultra-light, ultra-fine materials, can screen dry and wet materials, liquid solid separation and recovery, can also be used for wastewater screening and recovery operations, etc. Widely used in mining, building materials, metallurgy, casting, abrasives, cement, chemical, light industry, glass and other industries
Feture:
- Product Name: Ultrasonic Vibrating Screen
- Service: Customized Machine Can Be Available
- Screen Size: 200-2600 Mm
- Screen Layer: 1-5 Layers
- Packing: Mood
- Application: Food, Chemical, Pharmaceutical, Etc.
Technical Parameters:
| Model | Power (kw) |
Mesh size | Sieve effective diameter(mm) | Layer(s) | Dimension of machine(mm) | ||
| Length | Width | Height | |||||
| BC-400 | 0.18 | 2-635 | 355 | 1~5S | 580 | 580 | 560-760 |
| BC--600 | 0.55 | 2-635 | 555 | 800 | 800 | 680-880 | |
| BC-800 | 0.75 | 2-635 | 755 | 900 | 900 | 780-1080 | |
| BC--1000 | 1.1 | 2-635 | 925 | 1160 | 1160 | 880-1180 | |
| BC-1200 | 1.75 | 2-635 | 1125 | 1360 | 1360 | 980-1360 | |
| BC-1500 | 2.2 | 2-635 | 1425 | 1850 | 1850 | 1130-1550 | |
| BC--1800 | 3 | 2-635 | 1725 | 2200 | 2200 | 1360-1680 | |
| BC--2000 | 3.7 | 2-635 | 1910 | 2340 | 2340 | 1360-1680 | |
characteristic
Suitable for a wide range of powder and mucus materials
Energy saving and environmental protection less material consumption, energy saving, environmental protection, simple maintenance
The fully enclosed structure is a fully enclosed structure, and the screening work is carried out in a closed space
Low noise efficiency High noise, high efficiency
Packing and Shipping:
Product Packaging:
- The ultrasonic vibrating screen will be packed in a sturdy wooden crate to ensure safe transportation.
- The crate will be sealed with strong straps to prevent any movement or damage during shipping.
- Inside the crate, the product will be securely padded and protected with foam and bubble wrap.
- The packaging will include a user manual and necessary accessories.
Shipping:
- The ultrasonic vibrating screen will be shipped via a reliable courier service.
- Shipping costs will vary depending on the destination and shipping method selected.
- Delivery times will also vary depending on the destination, but we will do our best to ensure a timely delivery.
- Customers will be provided with a tracking number so they can monitor the progress of their shipment.
- Please note that any customs fees or import duties will be the responsibility of the customer
