3" metal and resin Hybrid Transitional diamond grinding pads with velcro backing for concrete floor polishing

Transitional Diamond Toolings

Transitional Diamond Toolings

Transitional Polishing Pads Copper Bond Transitional diamond toolings are a kind of resin pads that are mixed with metal powder, ceramic/porcelain, copper, or other abrasive material with diamond grit. The mix formula is very uniform and results in a subtle and refined scratch pattern. These Transitional diamond toolings are also extremely tolerant to high beats and are ideal on heavy-duty concrete grinding machines.    Advantages of Transitional diamond tooling The transitional diamond tools are specifically designed to help make a better transition from metal scratch patterns to resin polishing steps.

When to start with Transitional Diamond Toolings

In some cases, such as restoration work it is possible to start the work with a #50 grit transitional polishing pad instead of using metal bond diamond discs. These transitional diamond toolings are robust enough to handle stains, anomalies, and some calcification in the floor. If the transitional polishing pads are used in the right circumstances, these transitional diamond tooling pads can drastically reduce the number of steps in the preparation and restoration processes.

Transitional Diamond Polishing pads

	Copper Bond Transitional Polishing Pad Efficient removal of metal bond scratches  Consistent scratch pattern to set up resin polishing  The thick segment design works well on heavy and light machines	Diameter : 3 inch /75 mm Grit : #50, #100, #200
	Copper Hybrid Transitional Grinding Pads The copper hybrid concrete transitional polishing pad is an excellent transition from metal bonded tools to diamond resin tools. An ideal tool to prepare concrete floors for a cream polish	Diameter: 3 inch / 76 mm Grit : #30, #50, #100, #200, #400
	Ceramic Bond Transitional Pads Ceramic bond transitional diamond pads heat very effectively and quickly remove scratches left behind by metal bond diamond tools. Very subtle scratch pattern and is an ideal transition tool between metals and resins.	Size: 3 inch  / 75 mm  Grit: #30, #50, #100, #200

Features

• New Diamond Formula with special Hybrid Transitional diamond grinding pads
• Hybrid Transitional diamond grinding pads are great tools for removing scratches caused by metal grinding before resin diamond polishing pads
• 10 mm -15mm Diamond segment thickness with velcro backing
• Hybrid Transitional diamond grinding pads have aggressive grinding on the concrete floor surface
• Diameter 3 inches suitable for mostly floor grinders in the market
• Grit #30, #50, #100, #200, #400 are available for hybrid transitional polishing pad
• High heat resistance and anti-water soluble materials for best performance
• Suitable for polishing all kinds of flat concrete, terrazzo floor
• Wet/Dry use recommended

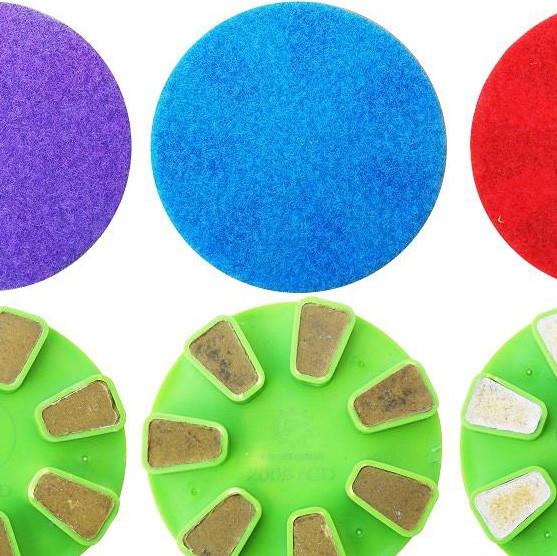

Product View

Application

Floor material :

Concrete, Terrazzo

Machine stypes:

• Heavy-duty floor grinding machines with velcro attachment
• Walk-behind grinder
• Redilock grinder
• Floor grinding machines
• Quick-release grinder
• Fast change floor grinder
• Redi lock grinding machines
• HTC floor grinder
• Husqvarna Grinder
• Scanmaskin Grinder
• Tercco Floor Grinder
• STI grinder

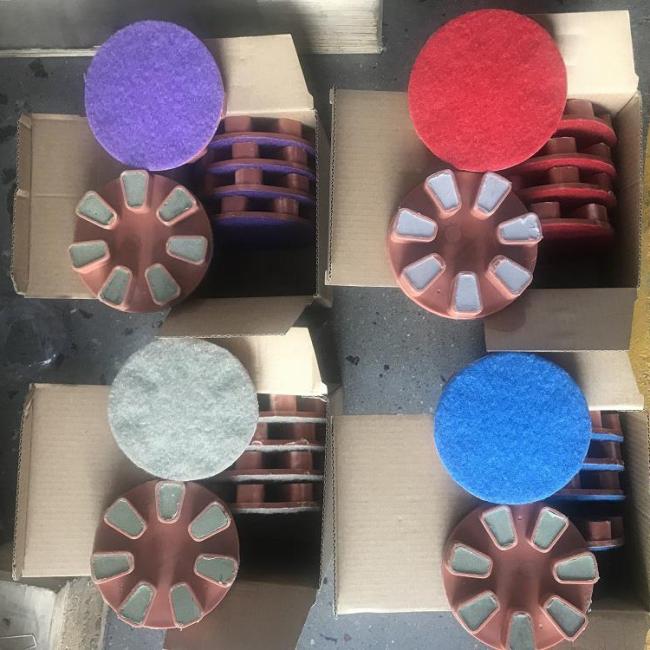

Production View
