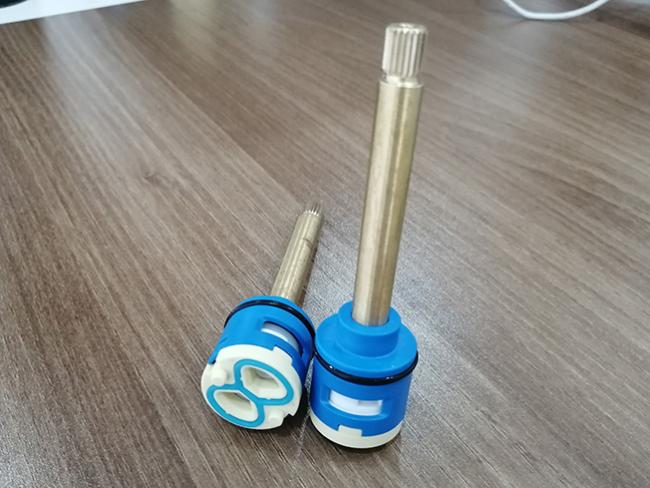

Long Brass Spindle Two Way 25mm Diverter Cartridge For Faucet
High performance long brass spindle two way 25mm diverter cartridge for faucet
Taizhou Kaili Ceramic Cartridge Co.,Ltd., manufacturing over 10 millions set of ceramic cartridges annually, locating in Binhai Industrial Zone, Taizhou, Zhejiang.
Our ceramic cartridges have been certified by ISO 9001/2008 quality system, as well as National Building Material Industry Hard Ware and Plumbing Equipment Quality Supervision and Test Center.
Products including, Ceramic Cartridge, Faucet Cartridge, Diverter Cartridge, Ceramic Disc Cartridge, Cartridge with distributor, water-saving cartridge, idling cartridge, reverse cartridge, dual-seal cartridge, Single-seal Cartridge,Tap Cartridge,Side-outlet Cartridge etc.
Professional& experienced engineers, advanced CNC machines enable us to supply you the good quality cartridges.
| Min.Temperature | -23℃ | Max.Temperature | 90° |
| Lever Break Torque | ≧10N.m | Max.Turning Angle | 100° |
| Gland Nut Torque | 9-11N.m | Max.Opening Angle | 23° |
| Pressure(bar) | 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 | ||
| Average Flow Rate(L/min) | 6.5 8.2 10.1 12 14 15.6 17.3 19 20.6 22.1 | ||
| Average Flow Rate(L/min) | 10.5 12.4 14.5 16.6 18.4 20 21.7 23.4 25.1 27 | ||
| Testing Performance | |||
| Noise Level | 18-19db(A)bar with filter | noise readucer | Selectable |
| Air-Leak Test | 8bar | Ceramic Disc | Al₂O₃96% |
| Burst Test | Staic water pressure at MAX.30 bar, no deformation on cartridge | ||
| Life Test | Min.70,000 Cycles(EN817, GB1845-2014) | ||
| Ceramic Disc Technical Request | ||||
| Sealing Surface Of Ceramic Disc | Hardness | 1100HV5 | Flatness | ≦0.25um |
| Surface Roughness | Ra≦0.25um | Porosity | 60-80% | |
High quality faucet valve ceramic disc ensure the stable quality and high performance for the faucet valve ceramic cartridge.
The ceramic disc is 95% Alumina Porcelain
Plastic Handle: Material PA-6 Handle Seat: POM
Cover body for faucet ceramic cartridge Material: PBT
Each inner white box pack 50pcs
300pcs faucet ceramic cartridge pack into one cartron.
Container loading faucet valve ceramic cartridge
For more.
Please contact us
Whatsapp/Wechat/Mob:+86-13738539388
Email:mickeylin@ctzkaili.com
FAQ
Q1.How many years quality guarantee for your faucets?
we provide 3-5years qualiy guarantee.If any defective is confirmed to be caused by us, Substituation or repair part will be sent in the next order.
Q2. What is your MOQ?
1000PCS each model,trial order for mixing items is also warmly welcomed.
Q3.Can we get some samples for test?
Sure, samples are always availabe for you. But you have to pay for the sample charge and freight charge.
Q4.Can your factory print our logo/brand on the product?
Our factory can laser print customer’s logo on the product with the permission from customers.Customers need to provide us a logo usage authorization letter to allow us to print customer's logo on the products.
Q5. Which areas do you export?
Our main market is in South Europe, East Europe, West Europe, South America, Middle east, Asia and Africa.
Q6. Does your factory have the design and development capabilities, we need the customized products?
The staffs in our R&D department are well experienced in the faucet industry, with more than 10 years experience. We can make customized products especially for you; please kindly contact us for more details.
Q7. How is your factory production capability?
We has a Full production line including Casting Line, Machining Line, Polishing Line and Assembling line. We can manufacture products up to 3000000 pcs per month.
