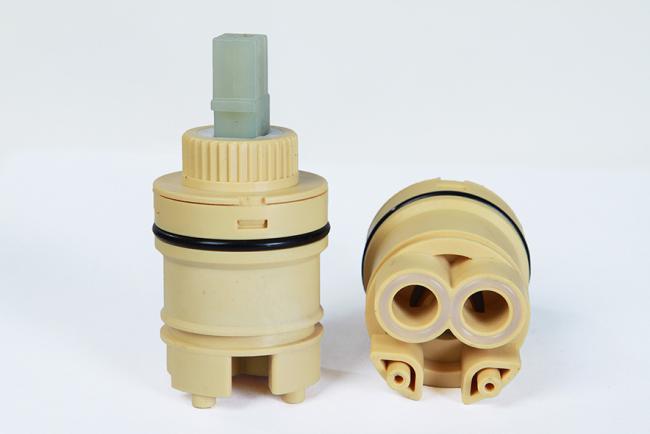

35MM Shower Mixer Faucet Idling Side Outlet Ceramic Cartridge With Foot
KL-35GB 35MM Shower mixer faucet Idling Side-Outlet Ceramic Cartridge with Foot
35mm shower mixer ceramic cartridges are hot sell and widely used by faucet and taps factory.
Professional & experienced engineers, advanced CNC machines enable us to supply you the good quality cartridges.
|
Min.Temperature |
-23℃ |
Max.Temperature |
90° |
|
Lever Break Torque |
≧10N.m |
Max.Turning Angle |
100° |
|
Gland Nut Torque |
9-11N.m |
Max.Opening Angle |
23° |
|
Pressure(bar) |
0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 |
||
|
Average Flow Rate(L/min) |
6.5 8.2 10.1 12 14 15.6 17.3 19 20.6 22.1 |
||
|
Average Flow Rate(L/min) |
10.5 12.4 14.5 16.6 18.4 20 21.7 23.4 25.1 27 |
||
|
Testing Performance |
|||
|
Noise Level |
18-19db(A)bar with filter |
noise readucer |
Selectable |
|
Air-Leak Test |
8bar |
Ceramic Disc |
Al₂O₃96% |
|
Burst Test |
Staic water pressure at MAX.30 bar, no deformation on cartridge |
||
|
Life Test |
Min.70,000 Cycles(EN817, GB1845-2014) |
||
|
Cermin Disc Technical Specification |
||||
|
Sealing Surface Of Ceramic Disc |
Hardness |
1100HV5 |
Flatness |
≦0.25um |
|
Surface Roughness |
Ra≦0.25um |
Porosity |
60-80% |
|
High quality shower mixer faucet ceramic cartridge ensure the stable quality and high performance.
Plastic Handle: Material PA-6 Handle Seat: POM
Cover body for faucet ceramic cartridge Material: PBT
Each inner white box pack 50pcs
300pcs ceramic cartridge pack into one cartron.
Container loading ceramic cartridge
We have clean and comfortable production workshop.Dust-free plant.
We have seasoned and passionated workers to do better work.
We have advanced machines which include injection molding machine,
CNC machines,assembly production line,logo printing machine,lift testing machine,
water leakage testing machine,packaging machine etc.
We have the most cost-effective faucet cartridge for your choice.
Workers Happy --> Good Quality --> You are happy --> We are happy!
