UV Weather Resistance Test Chamber / UV Controlled Environment Chamber

UV Weather Resistance Test Chamber / UV Controlled Environment Chamber

Description

Weathering Resistance Degradation Exposure UV Controlled Climatic Chamber is suitable for aging tests of non-metallic materials that are resistant to sunlight and artificial light sources.simulate the UV spectra of sunlight, exposes materials to alternating cycles of UV light, moisture and temperature at controlled.


Weathering Resistance Degradation Exposure UV Controlled Climatic Chamber uses the solar eye irradiance control system to accurately control UV irradiance, ensuring reproducibility of test results and meeting ISO international standards.

Advantage

● Artificial irradiance control;
● Small footprint / large sample capacity.

● Save time and money;
● Suitable for comparison testing;

Standard

● Spraying water, automatic water supply
● Water reservoir 50 Liter

● Safety protection system
● Easy to mount samples on the holders

● Fluorescent UV lamps (8) - 40 W
● Black Panel Temperature (BPT) at controlled, BPT 30~70ºC
● Temperature from Ambient to 90ºC
● Can hold 48 pieces of specimens
● Programmable color display touch screen controller
● CE and RoHS compliance

Specifications

Test holder

1. Flat Specimen Holders, aluminum panels with rings.
Each specimen size is 75mm * 150mm, can hold 48 pieces of specimens

2. Special Specimen Holder
Customize special holder according to different specimens.

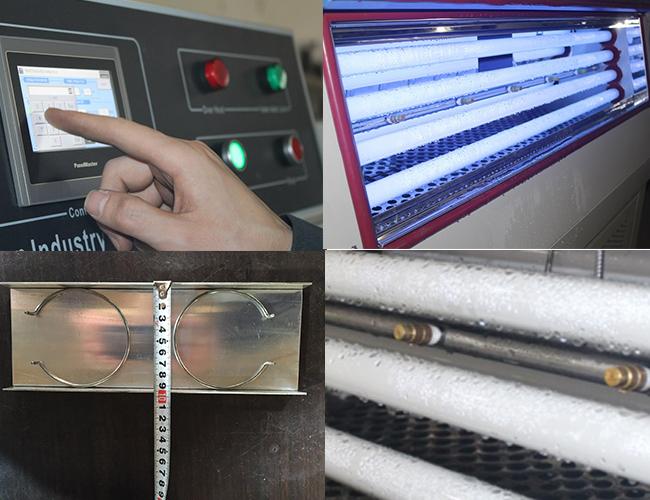

QUV lamp

1. UV chamber adopt QUV lamp made in USA.
2. UVA-340,UVB-313,UVB-351 3. UV lamp power is 40W. 4. Chamber install 8 pcs of QUV lamp.

Control Panel

Programmable color display touch screen controller
Measure and display temperature, humidity, water spraying,
black panel temperature and irradiance (UV-SI-260).
Show status and working time of 8 UV lamps

Water Spraying System

Total 10 water spray nozzles, 5 nozzles each side.
Automatic water supply
Water reservoir is 50 Liter.
