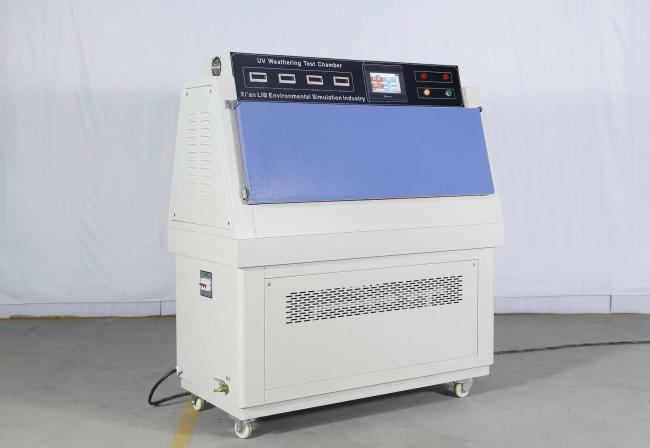

Easy Mount UV Weathering Test Chamber For Testing Materials / Products

Name

UV Accelerated Weathering Tester UV Test Chamber

Model

UV-260

UV-SI-260

Internal Dimension (mm)

452*1170*500

450*1170*500

Overall Dimension (mm)

680*1300*1500

680*1300*1500

Specimen Holder Size(mm)

75*150

Controller

Programmable color LCD touch screen controller
Ethernet connection, PC Link,USB

Temperature Range

Ambient ～ 90 ℃ ±2℃

Black Panel Temperature (BPT)

35 ～ 80 ℃

Bandwidth

290 ~ 400nm

Irradiance Control

N/A

0.3~20 W/㎡(340nm/313nm)

Standard

ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664

Water Spray Cycle

1~9999H59M (Adjustable)

Distance of Specimen and lamp

50mm

Power Supply

380V 50Hz

Maximum Noise

65 dBA

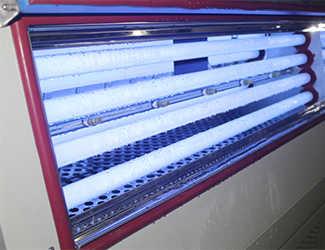

1. UV Lamp
UVA 340 nm and UVB 313 nm fluorescent UV lamps are available for the UV Test. The chamber is equipped with total of 8 lamps, each 40W.
Easy to change lamps

2. Controller
PID programmable color touch screen controller, network connection computer. Can edit 100 programs 20 segment.
LIB also can preset program into the controller based on user testing requirements.The set system language is English for standard.

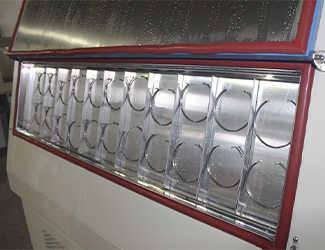

3. Sample Self
Flat specimen holders, aluminum panels with rings.
Each specimen size is 75mm * 150mm, can hold 56 pieces.
Special sample holder can be customized

4. Operating Principle
