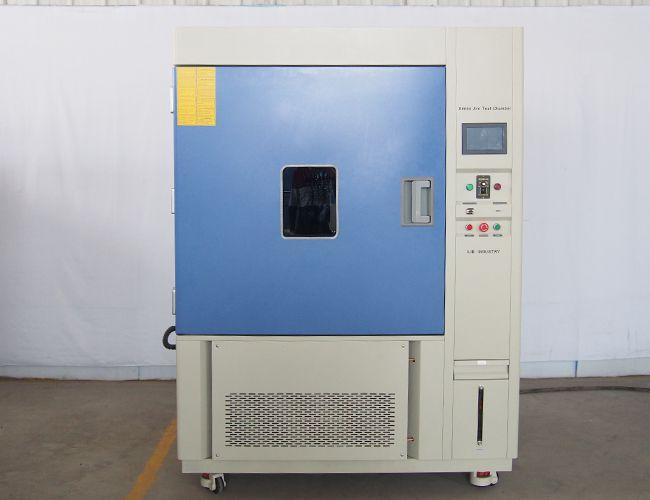

Safety Protection Xenon Weathering Test Chamber For Laboratory Material
Safety Protection Xenon Weathering Test Chamber For Laboratory Material
Description
Accelerated Weathering Testing for Plastics and Polymers is necessary to ensure that materials and products meet their expected functionality and lifetime.
An array of variables exist that ensure that the effects of ageing and weathering are hard to predict and as such can cause problems in the future which may reflect back upon the product and your business in a negative way.
Features
● 1 piece of 6500 W water-cooled xenon lamp with inner quartz and outer borosilicate filter
● Water spray system with build-in 50L water reservoir
● Control panel located on right side of test chamber
● Programmable color display touch screen controller to control and display test parameters
● Measurement and control of Irradiance 280-800 nm
● Measurement and control of Black Panel Temperature( BPT)
● Measurement and control of Chamber Temperature
● Measurement and control of Chamber humidity
● Safety protection system
● 380V, 50Hz
Standard
* Accelerated weathering: lASTM D4329, ASTM D 4587, ISO 4892
* Materials weathering tests by Xenon Arc - ASTM G155, ISO 4892, ASTM D2565, ASTM D4459
* Elevated temperature testing on properties of plastics by deterioration
* Accelerated ageing of automotive materials by Xenon Arc - SAE J2020, SAE J1885, SAE J1960, VDA 75202, PV3929, PV3930
Products Parameters
|
Name |
Chamber For Acceleratet Weather Testing Plastic |
|
Model |
XL-750 |
|
Internal dimensions D*W*H |
950*950*850 mm |
|
Overall dimensions D*W*H |
1300*1420*1800 mm |
|
Specimen Capacity |
42pcs |
|
Specimen holder size |
95*200mm |
|
Irradiation Source |
1 piece of 6500 W water-cooled xenon lamp with inner quartz and outer borosilicate filter |
|
Irradiance Range |
100~1200 W/㎡ |
|
Bandwidth Measurement |
280nm~800nm |
|
Chamber Temperature Range |
Ambient ~100℃±2°C |
|
Black Panel Temperature |
BPT 35 ~85℃±2°C |
|
Relative Humidity Range |
50~98% R.H±5% RH |
|
Water Spray cycle |
1～9999H59M, adjustable |
|
Controller |
programmable color display touch screen controller, PC Link, R-232 interface |
|
Radiometer |
Tolerance: ±5% |
|
Heating system |
Nichrome heater |
|
Cooling system |
Mechanical compression refrigeration system |
|
Refrigerating unit |
French TECUMSEH compressor |
|
Humidification system |
External isolation, stainless steel surface evaporation humidifier |
|
Air circulation |
Centrifugal wind fan |
|
Water supply system |
Automatic water supply; Water purification system |
|
Safety device |
Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; |
|
Interior material |
SUS304 stainless steel |
|
Exterior material |
Steel Plate with protective coating |
|
Thermal insulation |
Polyurethane foam |
|
Observation window |
Interior lighting , double-layer thermo stability silicone rubber sealing |
|
Power Supply |
AC380V 50HZ |
|
Test Area ◆ Standard sample holder: size is 95*200 mm, can mount 42 pieces of specimens. |
Large Viewing Window ◆Can observe samples during testing
|
|
Control Panel ◆ Build-in Standard or program. ◆ RS-232 interface, USB interface, Wireless web site |
Electrical System The circuit system and the waterway system are in different areas, and there is a separate baffle to protect the interior, which is more secure
|
Safety Device
● Refrigerant high-pressure protection
● Water shortage protection
● Earth leakage protection
● Humidifier dry-combustion protection
● over-temperature protection
● over-current protection
