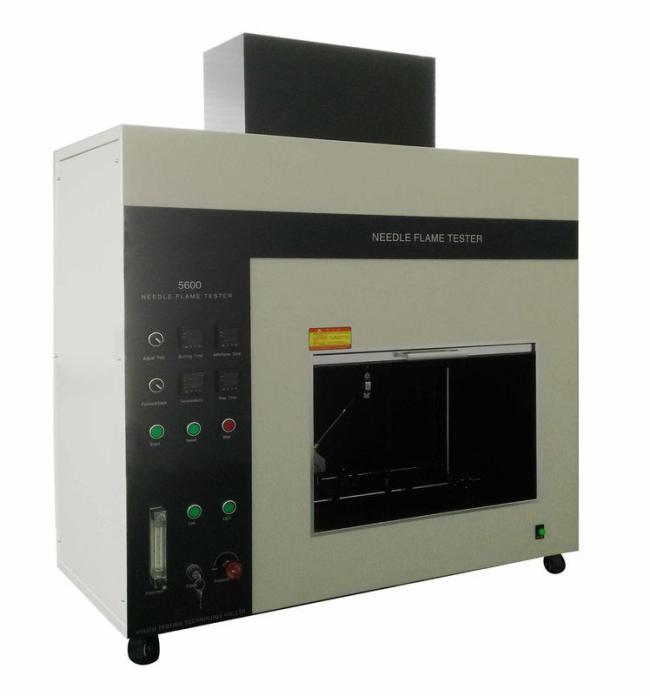

Stainless Steel Needle Flame Test Apparatus for Low Voltage Electrical Appliances

Stainless Steel Needle Flame Test Apparatus for Low Voltage Electrical Appliances

1. Electrical Needle Flame Tester used for lighting, low voltage electric appliance, household appliances, electric machine, motor, electric tools, electronic instrument, electrical instrument, electrical connector such as electrical and electronic equipment and parts, components of research, production and quality inspection department, also suitable for insulation materials, engineering plastics

2. AUTO Flame Tester with predetermined size (Φ 0.9 mm) needle burner, in 45 °angle burning product,measure the fire risk by product light-off or holde burning time

Features:

1. In accord with newest test standard
2. Good aluminum anodizing special clamp
3. One-touch timing device
4. In accord with standard combustion apparatus
5. Armoured glass window
6. Import control component
7. 2mm cold panel power baking varnish inside case

Characteristics:

With predetermined size (Φ 0.9 mm) needle burner, in 45°angle burning product, measure the fire risk by product light-off or hold burning time.

Application:

Used for lighting, low voltage electric appliance, household appliances, electric machine, motor, electric tools, electronic instrument, electrical instrument, electrical connector such as electrical and electronic equipment and parts, components of research, production and quality inspection department, also suitable for insulation materials, engineering plastics.

Technology data:

1. Accord with standard:IEC-60695,GB5169
2. Temperature display range:0-1200degree
3. Flame height adjust:5-45mm
4. Burning time adjust range:0-99.99s
5. Flame temperature resolution rate:1degree
6. Sustained combustion range:0~99.99s
7. Remainder combustion range:0~99.99s
8. Size:1120w*600d*1020h
9. Burning time Resolution rate:0.01s
10. Remainder time resolution rate:0.01s

Select configure:

1. high pure tetrane gas
2. flame temperature adjust device
3. other nonstandard clamp
