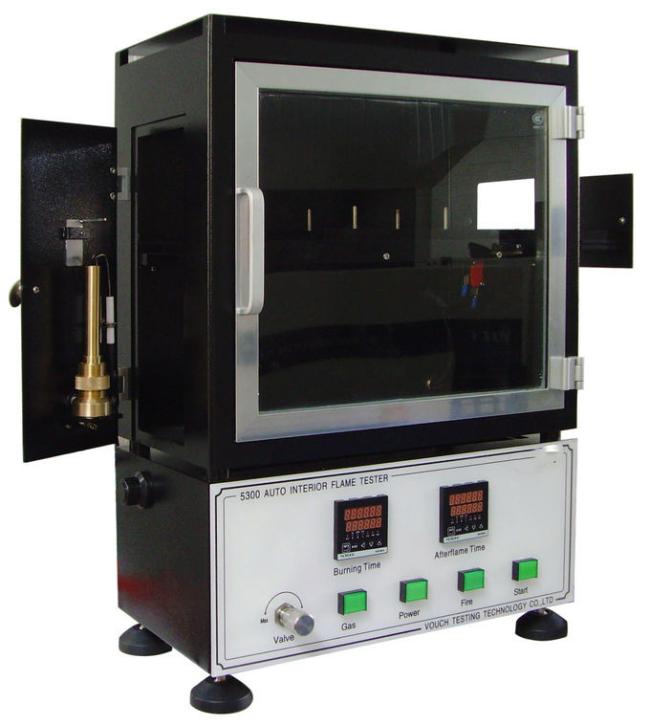

Vertical Combustion Testing Equipment , Stainless Steel Flame Test Chamber

Vertical Combustion Testing Equipment , Stainless Steel Flame Test Chamber

Technicial data:

Burning time adjust ment range:0-99.99s
Blance flame timing range:0.0s-99h59m59.9s
Burning time resolution:0.01s

Standard:GB/8410,TL1010,GMW3232,FMVSS302
SIZE: 395W*215*540H
Size of tester:385w*204*306h
Flame height adjustment:10-200mm
Blance flame time resolution:0.1s
Surface of box:white (powder baking varnish)

Features of machine:

• flame can be extinguished when test finished ,guarantee the temperature of test area.
• Wireless remote control timing device, specifically for the design of ventilation cabinet
• in accordance with standard burning apparatus
•  In accordance with newest test standard
•  Test sample timing automatically when in place,no need manual timing
•  tempered glass window

Standard configure:

Test room temperature display meter *1
Standard fixture *1
Flame height calibration device *1
