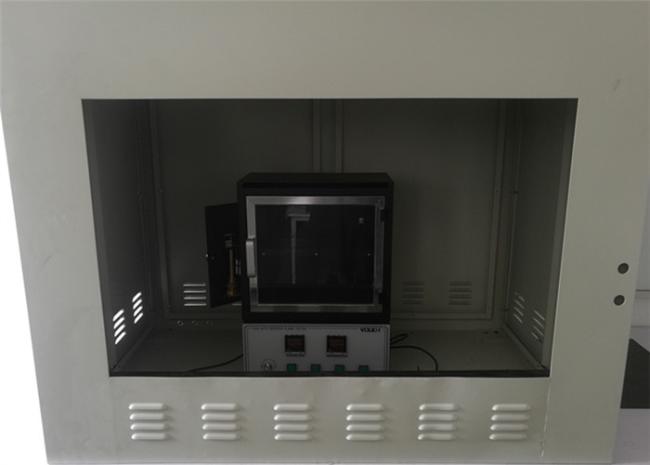

220V 50HZ Horizontal Flammability Testing Equipment For Auto Interior Parts

220V 50HZ Horizontal Flammability Testing Equipment For Auto Interior Parts

Features of machine:

1.) Wireless remote control timing device, specifically for the design of ventilation cabinet
2.) in accordance with standard burning apparatus
3.) tempered glass window

4.) In accordance with newest test standard
5.) Test sample timing automatically when in place,no need manual timing
6.) flame can be extinguished when test finished ,guarantee the temperature of test area.

Technicial data:

SIZE: 395W*215*540H
Flame height adjustment:10-200mm
Burning time adjust ment range:0-99.99s
Blance flame timing range:0.0s-99h59m59.9s

Burning time resolution:0.01s
Blance flame time resolution:0.1s

Size of tester:385w*204*306h
Surface of box:white (powder baking varnish)

Standard:GB/8410,TL1010,GMW3232,FMVSS302

Standard configure:

Test room temperature display meter *1
Standard fixture *1
Flame height calibration device *1

Select configure:

1.) 99.99%standard methane gas suite
2.) United States general standard test fixture
3.) Standard ventilation cabinet
