2500g φ1100mm Weighing Packaging Machinery Accessories
High Productivity Parallel Manipulator For Food, Medicine, Spices, Plastics and other industries

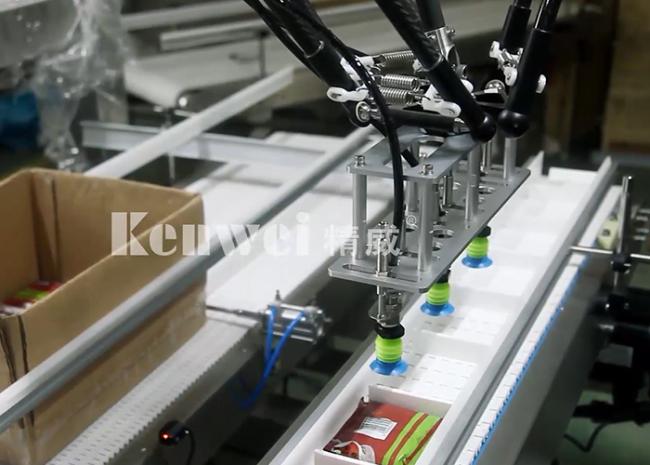

Parallel manipulator
The manipulator can be docked with front-end check weigher, metal detectors, X-ray foreign body detectors, and other packaging production line automation application equipment to achieve rapid sorting capabilities. The rotating main arm is made of carbon fiber material, which has a lighter structure and more stable performance. Adopt a servo control system to ensure the accuracy of a work application. It is suitable for all kinds of conveying materials in food, medicine, condiment, plastic, handicraft, electronics, and other industries.
Features
1. Overload automatic shutdown protection function.
2. Support multi-site dating.
3. Touch screen man-machine interface, multi-coordinate debugging, jog control, parameter setting, etc. Support teaching method, completely linear, circular arc, space trajectory movement.
4. Equipped with a teaching device for teaching and debugging, programming is simple and easy to learn, a rich instruction set can meet a wide range of application needs, users can carry out secondary development.
5. It can realize rapid classification capability and optional visual application system, which makes the positioning more accurate and easier to grasp. It can realize the intelligent operation of automatic sorting, automatic palletizing, and automatic sorting.
6. Can be docked with front-end check weighers, metal detectors, X-ray detectors, and other packaging production line automation application equipment. It has strong versatility, wide application range, high accuracy, and strong stability.
Mechanical character
1. Use a servo control system to ensure the accuracy of the work application.
2. The rotating main arm is made of carbon fiber, with a lighter structure and more stable performance.
3. The four-axis linkage structure can realize the grasping and rotation of materials in the specified direction.
4. Independent main body spraying, simple and beautiful appearance, convenient installation and maintenance.
5. The outer frame material of the car body is selected according to the use environment, and stainless steel/carbon steel is optional.
6. Optional visual or telescopic and full-line combined applications, supporting custom applications in the conveyor section, flexible configuration.
Technical specification
| Model | JW-D1100 |
| Identify Code | D1100-1-1 |
| Structure type | DELTA(four-axis parallel) |
| Repeat accuracy | ±0.1mm |
| Working range | φ1100mm |
| Max. speed | 150P/M |
| Max. load | 3000g |
| Power requirement | 220V/4000W/ 50/60Hz |
| Machine dimension | 12000(L)*1100(W)*610(H)mm |
| Machine net weight | 110 Kg |
Application
It is suitable for the classification and transportation of various materials in food, medicine, spices, plastics, handicrafts, electronic products and other industries.
Company profile

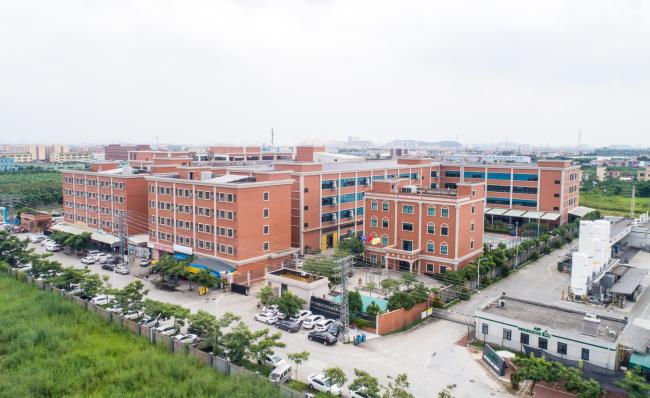

Guangdong Kenwei Intellectualized Machinery Co., Ltd, is currently a large production base of multihead weighers. As a professional manufacturer, we devote to R&D and manufacturing of multihead weighers, linear weighers, check weighers, metal detectors with high speed and high accuracy. We also provide customers with complete automatic weighing and packaging systems to meet the various customized requirements.
Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.
