1900x850x1480mm Stainless Steel 3 Person Cleanroom Workbench
1900x850x1480mm Stainless Steel 3 Person Cleanroom Workbench
Description:

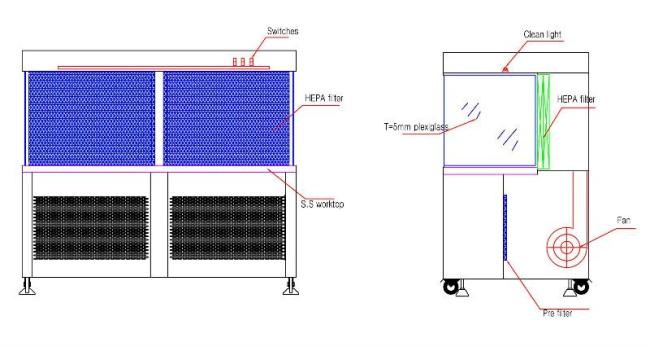

Laminar flow cabinet or laminar flow closet or tissue culture hood is a carefully enclosed bench designed to prevent contamination of semiconductor wafers, biological samples, or any particle sensitive materials. Air is drawn through a HEPA filter and blown in a very smooth,laminar flow towards the user. The cabinet is usually made of Stainles steel with no gaps or joints where spores might collect
Stainless Steel Laminar flow cabinet / clean bench is a specialized equipment to bring high cleanliness to partial area.
The bench top material: Stainless steel 304
Framework: High quality cold rolled steel plate with powder coated or stainless steel
Application:
It is widely applied to industries like electronics, instrument, apparatus, National Defense, medical care and pharmacy etc.
Optional accessory:
1. Hepa filter or ULPA filter
2. Static-free top or stainless steel top, the top can be punched
3. Framwork is used of common cold rolled steel plated with powder coated or stainless steel.
4. Domestic or EBM fans
5. Pressure gauge
Standard size and specification:
| Dimension (W x D x H) mm | 1900X850X1480 |
| Size for working area (W x D x H)mm | 1820X550X610 |
| Suitable people | 3 men |
| Size of HEPA filter(mm) | 915 x 610 x 69 |
| QTY of HEPA filter (pcs) | 2 |
| Noise | ≤62dB |
| Blow power | 320W |
| Fluorescent lamp | 30Wx2 |
| Material of Bench top | SUS304 |
| Produce/Inspection standard | US Federal standard 209E |
| Air velocity | 0.35-0.6m/s |
| Voltage | 380V/50Hz/3Ph |
| Voltage | AC 380V/50Hz/3PH, 220V/50Hz/1Ph or 110V/60Hz/1Ph |
| Cleanliness Class | 100 class (US Federal standard 209E) |
| Efficiency | 99.99% @0.3μm |
Note: Customized size and specification can be acceptable.
