XZG-6 Stirrer Spin Flash Dryer Process
The hot air enters into the bottom of the drier in tangent direction. Under the driving of the stirrer, a powerful rotating wind field is formed. The paste state materials enter into the drier through the screw charger. Under the powerful function of the sitting vanes at high-speed rotation, the materials are distributed under the function of strike, friction and shearing force. The block state materials will soon be smashed and contact the hot air fully and the materials are heated and dried. The dried materials after the de-watering will go up with the heat-air flow. The step rings will stop and keep the big particles. Small particles will be discharged out of the drier from the of the equipment by centrifugal force function and be smashed again after they fall down to the bottom.
XZG-6 Stirrer Spin Flash Dryer Application
XZG-6 Stirrer Spin Flash Dryer Technical Parameters
| Type | Barrel diameter(mm) | Main machine dimensions(mm) | Main machine power(kw) | Treatment wind capacity(m3/h) | Water evaporatoion(kgg/h) |
| SFD-2 | 200 | 250x2800 | 5-9 | 300-800 | 10-20 |
| SFD-3 | 300 | 4400x3300 | 8-15 | 600-1500 | 20-50 |
| SFD-4 | 400 | 500x3500 | 10-17.5 | 1250-2500 | 25-70 |
| SFD-5 | 500 | 600x4000 | 12-24 | 1500-4000 | 30-100 |
| SFD-6 | 600 | 700x4200 | 20-29-2500 | 5000 | 40-200 |
| SFD-8 | 800 | 900xx4600 | 24-35 | 3000-8000 | 60-600 |
| SFD-10 | 1000 | 1100x5000 | 40-62 | 5000-12500 | 100-1000 |
| SFD-12 | 1200 | 1300x5200 | 50-89 | 10000-20000 | 150-1300 |
| SFD-14 | 1400 | 1500x5400 | 60-105 | 14000-27000 | 200-1600 |
| SFD-16 | 1600 | 1700x6000 | 70-135 | 18700-36000 | 250-2000 |
XZG-6 Stirrer Spin Flash Dryer Flowchart

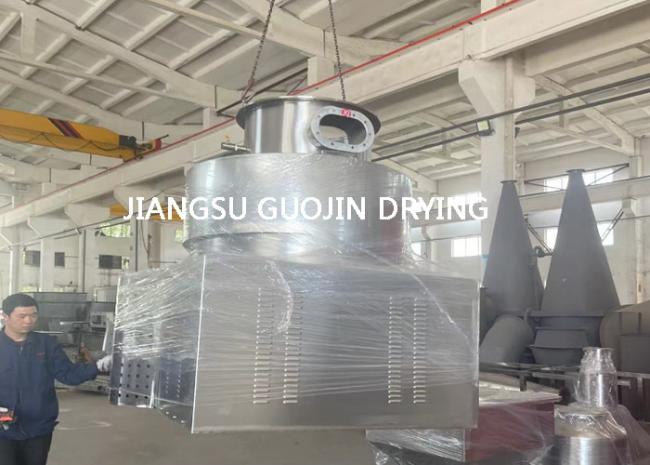

XZG-6Stirrer Spin Flash Dryer Show
