XZG-6 Stirrer Spin Flash Dryer For Filter Cake 500kg/H Powder
Price:
Negotiable
MOQ:
1 set
Delivery Time:
20-30days
Brand:
Guojin
Product Description
XZG-6 Stirrer Spin Flash Dryer For Filter Cake 500kg/h Powder
Raw material: Medical ingredients filter cake
Initial moisture: 15-16%
Final moisture: less 0.5%
Finished capacity: 500kg/h
Air inlet temperature: 180-190
Exhaust temperature: 85-90
Heat source: thermal oil
XZG-6 Stirrer Spin Flash Dryer Features
(1) Dynamic integration of cyclone, fluidized, spouted and grinding classification technologies.
(2) Equipments are compact and small-sized, enabling high efficiency and continuous production, achieving "small equipment, large-scale production".
(3) Great drying intensity, low energy consumption, high thermal efficiency.
(4) Short material residence time, good product quality, available for drying heat sensitive materials.
(5)Negative or slightly negative pressure operation, good impermeability, high efficiency, eliminating environmental pollution.
(2) Equipments are compact and small-sized, enabling high efficiency and continuous production, achieving "small equipment, large-scale production".
(3) Great drying intensity, low energy consumption, high thermal efficiency.
(4) Short material residence time, good product quality, available for drying heat sensitive materials.
(5)Negative or slightly negative pressure operation, good impermeability, high efficiency, eliminating environmental pollution.
XZG-6 Stirrer Spin Flash Dryer Application
1. Different kinds of feeding device can be chose, feeding is continuous and stable, there is on bridge phenomenon.
2. There is special cooling device at the bottom of dryer, it can avoid the material deteriorate in the bottom high temperature area.
3. Special air sealing device and bearing cooling device and make the life of transmission device longer effectively.
4. There is special air distributing device, it reduces the resistance of equipment, and make the air speed in drying chamber be balanced.
5. There are classification rings and turbojet plates in the drying chamber, fineness and final moisture of product and be adjusted and controlled.
6. In the drying chamber air speed is fast, drying time is short, it can avoid material stick on the wall and deterioration effectively.
XZG-6 Stirrer Spin Flash Dryer Technical Parameters
| Type | Barrel diameter(mm) | Main machine dimensions(mm) | Main machine power(kw) | Treatment wind capacity(m3/h) | Water evaporatoion(kgg/h) |
| SFD-2 | 200 | 250x2800 | 5-9 | 300-800 | 10-20 |
| SFD-3 | 300 | 4400x3300 | 8-15 | 600-1500 | 20-50 |
| SFD-4 | 400 | 500x3500 | 10-17.5 | 1250-2500 | 25-70 |
| SFD-5 | 500 | 600x4000 | 12-24 | 1500-4000 | 30-100 |
| SFD-6 | 600 | 700x4200 | 20-29-2500 | 5000 | 40-200 |
| SFD-8 | 800 | 900xx4600 | 24-35 | 3000-8000 | 60-600 |
| SFD-10 | 1000 | 1100x5000 | 40-62 | 5000-12500 | 100-1000 |
| SFD-12 | 1200 | 1300x5200 | 50-89 | 10000-20000 | 150-1300 |
| SFD-14 | 1400 | 1500x5400 | 60-105 | 14000-27000 | 200-1600 |
| SFD-16 | 1600 | 1700x6000 | 70-135 | 18700-36000 | 250-2000 |
XZG-6 Stirrer Spin Flash Dryer Flowchart

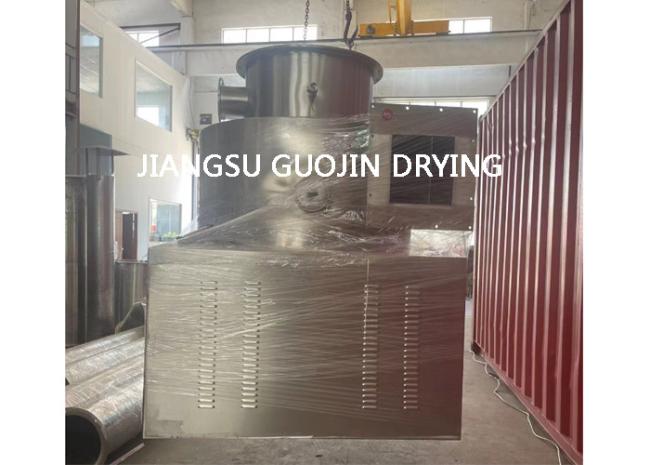

XZG-6Stirrer Spin Flash Dryer Show
