XZG-6 Stirrer Spin Flash Dryer For Filter Cake From 15% Dry To 0.5%
Price:
Negotiable
MOQ:
1 set
Delivery Time:
20-30days
Brand:
Guojin
Product Description
XZG-6 Stirrer Spin Flash Dryer For Filter Cake From 15% Dry To 0.5%
Raw material: Medical ingredients filter cake
Initial moisture: 15-16%
Final moisture: less 0.5%
Finished capacity: 500kg/h
Air inlet temperature: 180-190
Exhaust temperature: 85-90
Heat source: thermal oil
XZG-6 Stirrer Spin Flash Dryer Features
(1) Dynamic integration of cyclone, fluidized, spouted and grinding classification technologies.
(2) Equipments are compact and small-sized, enabling high efficiency and continuous production, achieving "small equipment, large-scale production".
(3) Great drying intensity, low energy consumption, high thermal efficiency.
(4) Short material residence time, good product quality, available for drying heat sensitive materials.
(5)Negative or slightly negative pressure operation, good impermeability, high efficiency, eliminating environmental pollution.
(2) Equipments are compact and small-sized, enabling high efficiency and continuous production, achieving "small equipment, large-scale production".
(3) Great drying intensity, low energy consumption, high thermal efficiency.
(4) Short material residence time, good product quality, available for drying heat sensitive materials.
(5)Negative or slightly negative pressure operation, good impermeability, high efficiency, eliminating environmental pollution.
XZG-6 Stirrer Spin Flash Dryer Application
Organic compounds: atrazine (pesticides), cadmium laurate, benzoic acid, germicide, sodium oxalate, cellulose acetate, the organic pigments, and so on;
Dye: santhraquinone, black iron oxide, indigo pigments, butyric acid, titanium hydroxide, zinc sulfide, various azo intermediate;
Inorganic: borax, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, all kinds of metallic hydroxide, all kinds of heavy metal salt, synthetic cryolite and so on;
Food: soy protein, gelatinized starch, distillers' grains, triticin, wheat starch and so on.
Dye: santhraquinone, black iron oxide, indigo pigments, butyric acid, titanium hydroxide, zinc sulfide, various azo intermediate;
Inorganic: borax, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, all kinds of metallic hydroxide, all kinds of heavy metal salt, synthetic cryolite and so on;
Food: soy protein, gelatinized starch, distillers' grains, triticin, wheat starch and so on.
XZG-6 Stirrer Spin Flash Dryer Technical Parameters
| Type | Barrel diameter(mm) | Main machine dimensions(mm) | Main machine power(kw) | Treatment wind capacity(m3/h) | Water evaporatoion(kgg/h) |
| SFD-2 | 200 | 250x2800 | 5-9 | 300-800 | 10-20 |
| SFD-3 | 300 | 4400x3300 | 8-15 | 600-1500 | 20-50 |
| SFD-4 | 400 | 500x3500 | 10-17.5 | 1250-2500 | 25-70 |
| SFD-5 | 500 | 600x4000 | 12-24 | 1500-4000 | 30-100 |
| SFD-6 | 600 | 700x4200 | 20-29-2500 | 5000 | 40-200 |
| SFD-8 | 800 | 900xx4600 | 24-35 | 3000-8000 | 60-600 |
| SFD-10 | 1000 | 1100x5000 | 40-62 | 5000-12500 | 100-1000 |
| SFD-12 | 1200 | 1300x5200 | 50-89 | 10000-20000 | 150-1300 |
| SFD-14 | 1400 | 1500x5400 | 60-105 | 14000-27000 | 200-1600 |
| SFD-16 | 1600 | 1700x6000 | 70-135 | 18700-36000 | 250-2000 |
XZG-6 Stirrer Spin Flash Dryer Flowchart

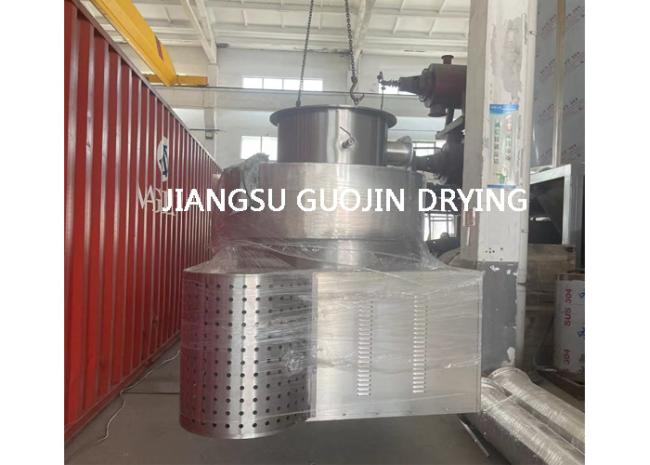

XZG-6Stirrer Spin Flash Dryer Show
