Stainless Steel 316L GMP Standard Tunnel Drying Oven 8M Length For Salt Drying
8M Length Stainless Steel 316L GMP Standard Tunnel Drying Oven For Salt Drying
Hot air circulation oven is equipped with low noise and high temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is completely closed, which makes the thermal efficiency of the oven increase from 3-7% in the traditional drying room to 35-45% at present, and the maximum thermal efficiency can reach 50%.
Working Principle
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Product Feature
Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and it is a common drying equipment.
Technical Parameters
| 1 | Raw material | Salt |
| 2 | Input capacity | 2000kg/d |
| 3 | Drying time | According to customer’s requirement |
| 4 | Electric power | 66KW |
| 6 | Heat resource |
Natural gas(RLY30,300000 kcals/h) Gas furnace size: Inner(20G steel): 800x2500x8mm Middle: 960x2500x6mm |
| 7 | Material | Complete 316 SS |
| 8 | Tunnel dryer type | Tunnel drying oven |
| 9 | Overall dimension | 8800mmX2200mmX2000mm |
| 10 | Circulation shaft fan | 0.45kw X8sets=3.6kw |
| 11 | Trolley | 16unit |
| 12 | Trays | 24pcs/unit |
| 13 | Total treys | 384pcs |
| 14 | Trey dimension | 640mmX460mmX45mm |
| 15 | Insulation thickness | 50mm |
| 16 | Insulation material | Aluminium silicate |
| 17 | Dehumidifying system | Automatic discharge via air pipe |
Product Application
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

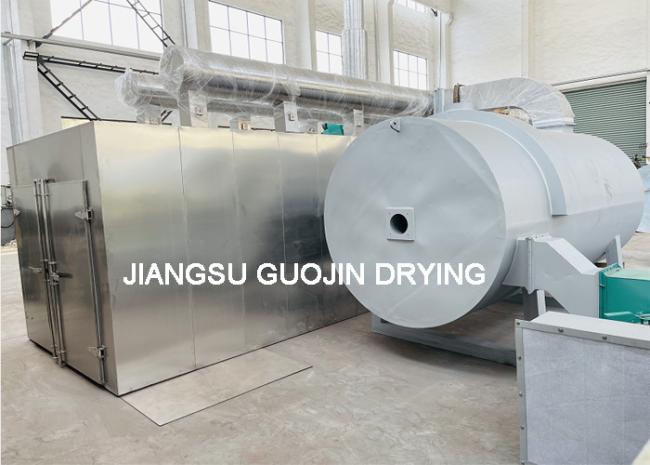

Product Show
