Industrial Ceramic Sludge KJG-5 Harrow Paddle Rotary Vacuum Dryer

Industrial Ceramic Sludge KJG-5 Harrow Paddle Rotary Vacuum Dryer

The Hollow Paddle Dryer has a metal wall which separates the process mass from the heat source (steam or hot oil). High thermal efficiency is obtained because the heat from the thermal medium goes directly into the process mass. As the material comes into contact with the heated through and agitators, the process mass is heated via conduction. With an insulated dryer, very little heat is lost. To evaporate 1kg of water only requires about 1.2kg of steam for slurry materials. Exhaust gas is minimal and at a low temperature. Therefore, the volume of non-condensable gas from the dryer, which might require treatment, is minimal.





KJG-5 Harrow Paddle Rotary Vacuum Dryer Main Feature

1. Continuously drying of sewage sludge, animal manures and industrial sludges;
2. Heating area: 3-200 M2
3. Drying capacity: 50-5000 kg/h
4. Vapor tight or vacuum designs are available
5. Heat source: steam, hot water or hot oil







KJG-5 Harrow Paddle Rotary Vacuum Dryer Product Application

• The materials from such as the medicine t food , chemical industry, etc. can be dried.

• Suitable for pulpiness, paste-like mixture or power raw material.

• Temperature sensing material requiring the low temperature to be dried.

• Raw materials that are easy to oxidize or explode and have strong irritative or toxic.

• Demand to retrieve of the organic solvent.





KJG-5 Harrow Paddle Rotary Vacuum Dryer Technical Parameters

No.	Item	Parameters	Note
1,	Model	KJG-5
2,	Paddle heat transfer area [m2]	3.5	Including shaft surface area
3,	Jacket heat transfer area [m2]	1.5
4,	Total heat transfer area [m2]	5
5,	Water evaporation [kg/h]	50
6,	Output capacity [kg/h]	15-20
7,	Diameter of paddle [mm]	260
8,	Effective volume [m3]	1
9,	Speed of rotation [rpm]	1-15
10,	Standard motor rating [kW]	3
11,	Carrier gas flow [m3/h]	300-500
12,	Carrier gas exhaust fan motor rating [kW]	0.75
13,	Machine floor space [L×W×H]	2816X760X1370
14,	Standard lifting weight [kg]	1500

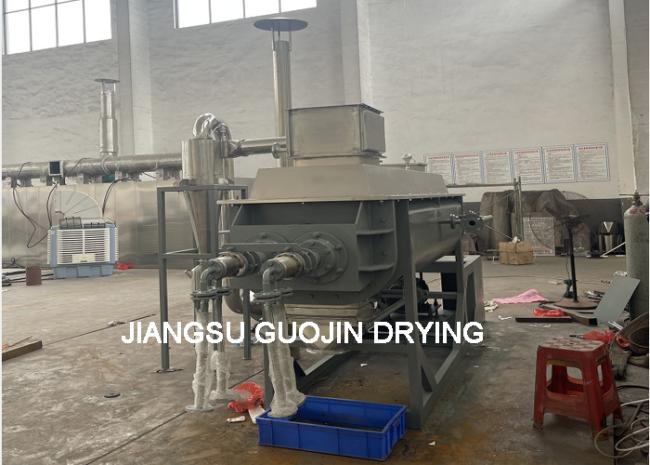

KJG-5 Harrow Paddle Rotary Vacuum Dryer Product Show
