Industrial Pigment Powder Coulter Mixer 400-600kg/Batch Capacity
400-600kg/Batch Capacity Industrial Pigment Powder Coulter Mixer
Function
Plough mixer keeps material onflow. Because of high speed and shapes of plough agitator,centrifgal vortex action,material in plough mixer makes three-dimension movement and is mixer together.
It can chopper while mixing.
Opening on Mixer
Standard flange conection
Quick-opening feeding inlet
Exhaust port
Cleaning doors
Discharge control
Manual self-lock
Pneumatic driven
Electric driven
Mateial standard
carbon steel
contact part SS 304
All mixing tank SS 304
Contact part SS 316
All mixing tank SS 316
Special material
Anti-corrosion material cladded
Abrasion proof material painted
Functional material coated.
Technical Parameters
| Model | HPM-1 |
| Mixed a mount/batch(kg) | 400-600 |
| Equipped power(kw) | 23 |
| Weight(kg) | 1800 |
Product Working Principle
After mixing machine start coulter by coulter axis rotation, made material along barrel radial circumferential turbulent, at the same time on both sides of the material along the coulter surface normal direction. When thrown and materials for weeks to turbulent flows through fly knife group, by high speed rotating rapidly and effectively scatter. Materials in the compound under the action of the coulter and throwing knives, constantly more fold, diffusion, in a short period of time to achieve uniform mixing, mixed with high precision.
For the material that need to be mixed solid - liquid, mixed liquid through spray device evenly sprayed on the cylinder body movement of the material.

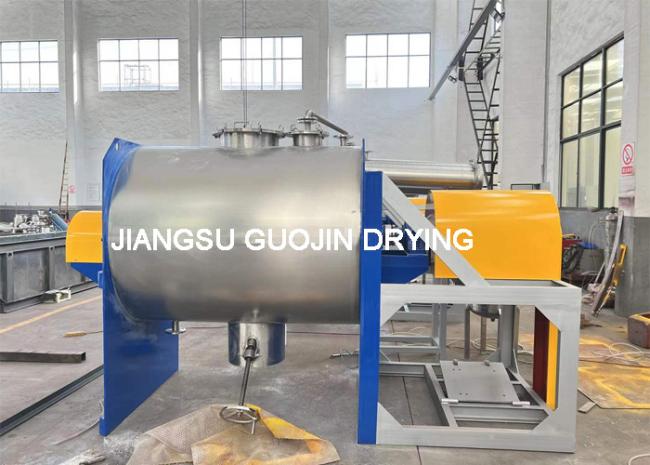

Product Show
