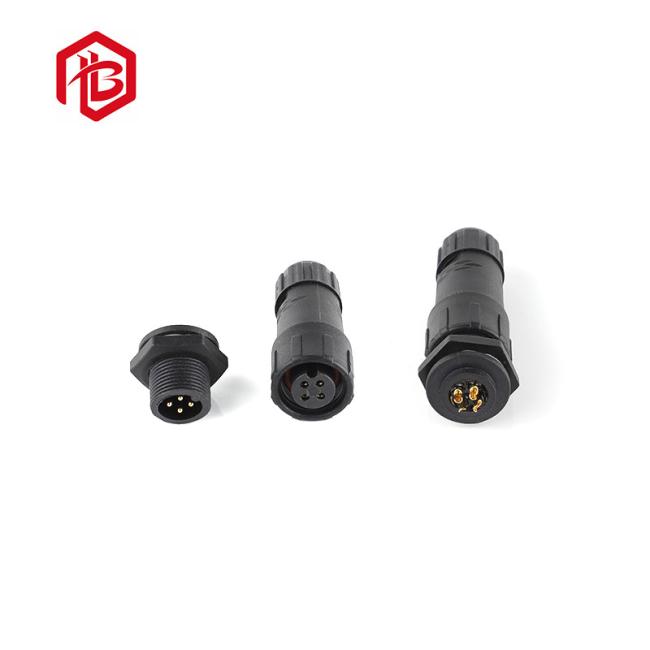

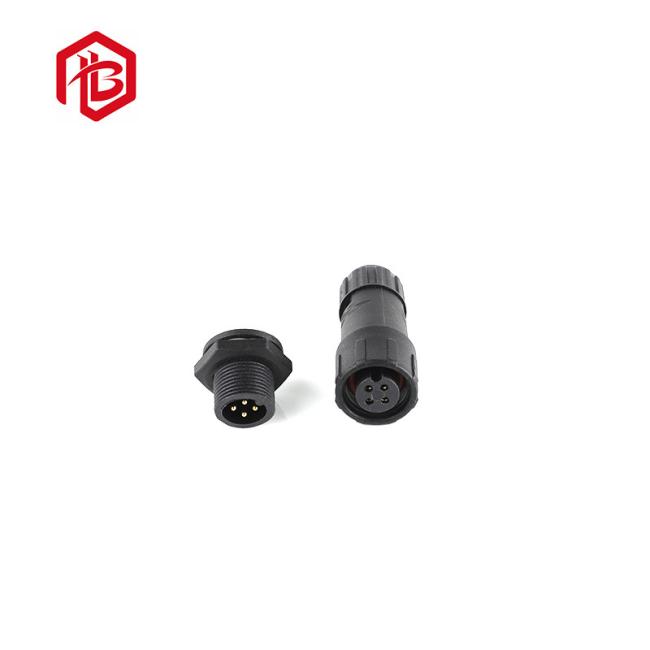

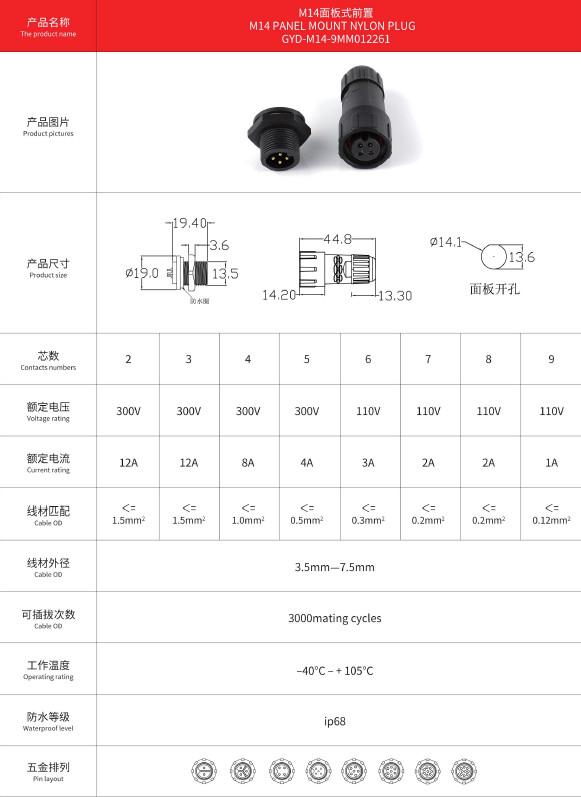

300V m14 panel mount nylon plug black Ambient lighting fixture alarms waterproof cable connector
Used for floor heating M14 Waterproof Panel Mount Connector 5pin circular connector
Detailed Product Description
| Protection Level: | IP68 | Connecting Model: | Screw Locking |
|---|---|---|---|
| Pin: | 2 to 9pin | Current Rating: | 12A |
| Model: | M14 | Voltage Rating: | 300V |
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 12A max |
| Min Wire Size OD | 3.0mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 10mm |
| Type | Adapter |
Features
- Rated current: 20A/10rms.
- IP67/68 rating
- Voltage rating: 300V
- Cable Range: 3~11mm
- UL, TUV, CB, CCC, CE, RoHS approved
Main characteristics
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- Cable assembly support
- Customized cable size and length
Applicaiton of Bett M14 Connectors
- Communications Application
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
3.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
4.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
Tips
1. Proofing: Customers provide samples or provide specifications, and we will make samples according to your samples for confirmation.
2. Production: Our sample production - the customer confirms that the sample is passed - the customer places an order - our company arranges production
3. Delivery: The normal delivery time is 5 to 10 days as agreed by both parties.
4. After-sales: If there is any quality or any other problem with the product, please give us feedback in time, and we will deal with it in time and serve you sincerely.
5. All products are customized according to customer requirements, quality assurance, samples are welcome to be customized.
