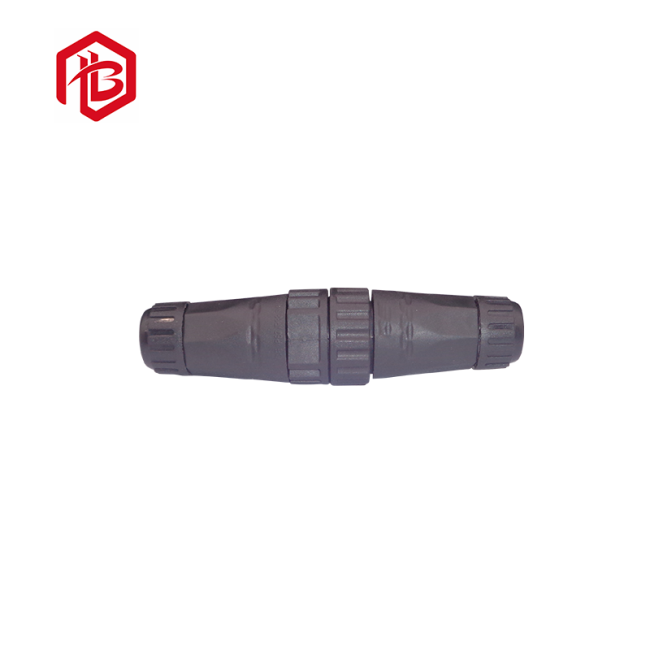

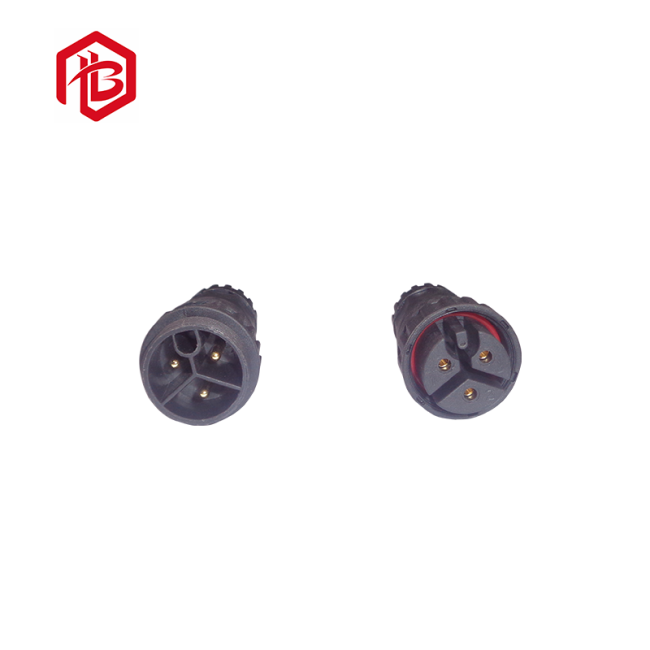

CCC CE ROHS IP68 M23 High Current Waterproof Connector
M23 High Current Waterproof Connector 2-4Pin Black Nylon Screw Locking Connector
Detailed Product Description
| Protection Level: | IP68 | Connecting Model: | Screw Locking |
|---|---|---|---|
| Pin: | 2 to 4pin | Current Rating: | 30A |
| Model: | M23 | Voltage Rating: | 300V |
This M23 waterproof power Connector has a waterproof rating of IP67. To assemble the M23 Outdoor Waterproof Connector,only a Philips Screwdriver is required to attach the two wires inside each main body. Once each side is connected, the wiring is fully protected from the elements.
Once assembled, the M23 Outdoor Waterproof Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M23 Waterproof connector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 30A max |
| Min Wire Size OD | 3.0mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 12mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 2.5mm2 |
Features:
- Rated current: 30A/10rms.
- 2-4PIN power supply, 5-9PIN signal is optional.
- IP67/68 rating
- Voltage rating: 300V
- Cable Range: 3~11mm
- UL, TUV, CB, CCC, CE, RoHS approved
Main characteristics
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
Applicaiton of Bett M23 Connectors
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
3.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
4.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
