Copper Alloy Contact Pin Push Locking Nylon 300V 10A Waterproof Connectors

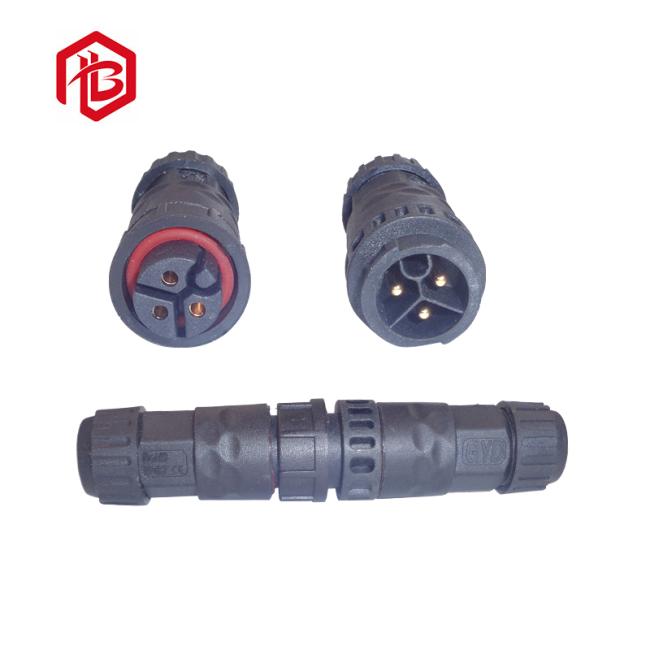

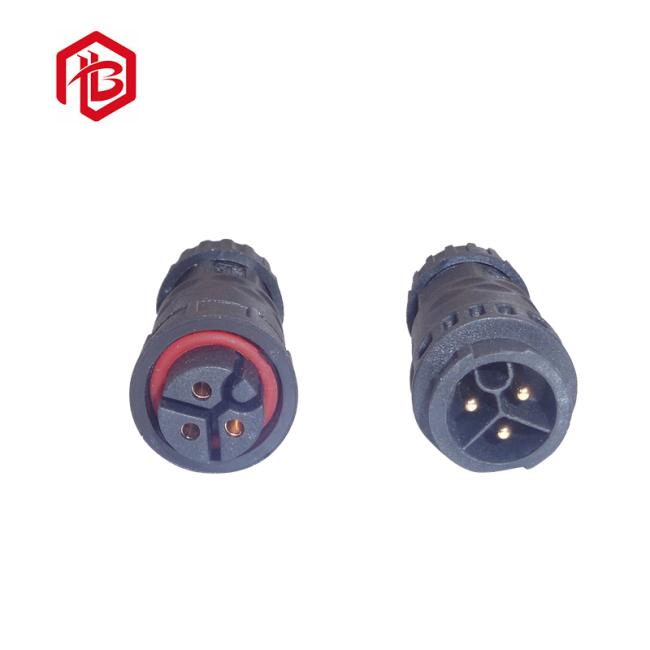

Assembled K19 10A Waterproof Connectors Nylon Black Push Locking Connector
Detailed Product Description
| Protection Level: | IP68 | Connecting Model: | Welding |
|---|---|---|---|
| Pin: | 2 to 4pin | Current Rating: | 20A |
| Model: | K19 | Voltage Rating: | 300V |
| Specifications | |
| Connecting mode | Push locking connecting |
| Protection level | IP67 |
| Cable specification | 0.3mm2 ~ 1.5mm2 /22~16AWG |
| Diameter range | Φ3.5mm ~Φ12mm |
| Contact diameter×Qty | Φ1.5x2 |
| Current rating(A) | 10A |
| Operating voltage(AC.V.rms) | 300V |
| Withstand voltage(AC.V)1min | 1500V |
| Contact resistance | <1mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~105°C |
| Method of connecting cable | Solder |
| IP Rating | IP67 |
| Material | |
| Insulated parts | High performance engineering plastics |
| Shell parts | Nylon |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
Features:
- Rated current: 20A/10rms.
- 2-4PIN power supply, 5-9PIN signal is optional.
- IP67/68 rating
- Voltage rating: 300V
- Cable Range: 3~11mm
- UL, TUV, CB, CCC, CE, RoHS approved
Main characteristics
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
Applicaiton of Bett K19 Connectors
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
3.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
4.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
