Automotive 300VAC Plug And Socket Cable Connector

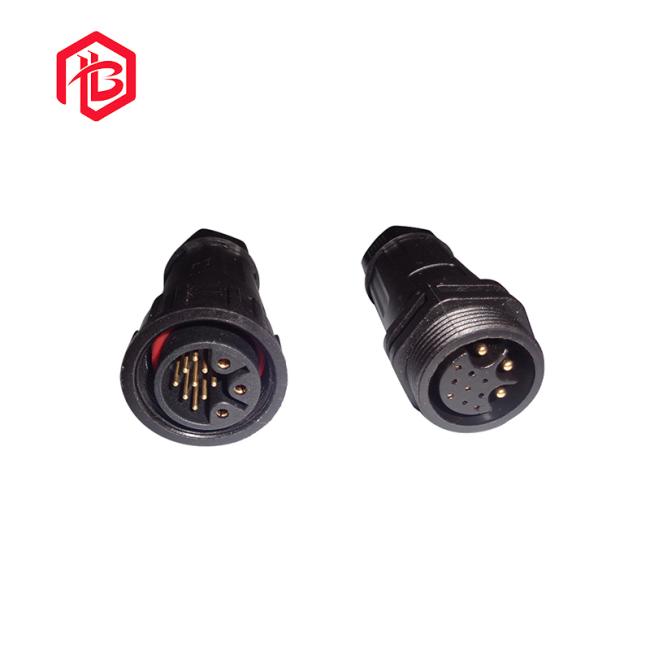

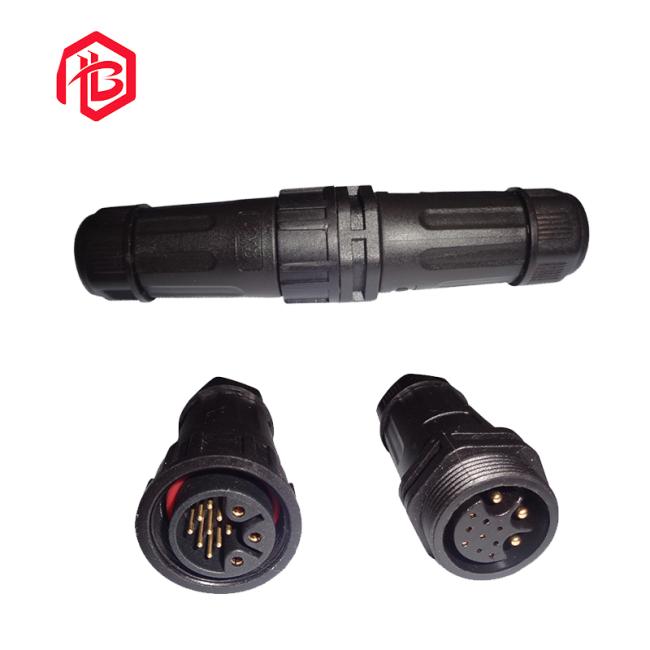

M25 Assembled Waterproof Data Connector IP67 Male Female Plug With Socket
Detailed Product Description
| Protection Level: | IP68 | Connecting Model: | Screw Locking |
|---|---|---|---|
| Pin: | 2 to 12pin | Current Rating: | 20A |
| Model: | M25 | Voltage Rating: | 300V |
Connector Features:
- Gold-plated contact, high performance of corrosion resistance and electrical
- Conductivity effectively deal with temperature rise.
- Push locking connector,easy operation and installation
- Dustproof cover design under off-working condition
- IP68 waterproof level
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 20A max |
| Min Wire Size OD | 3.5mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 2.5mm2 |
Features:
- Rated current: 20A/10rms.
- 2-4PIN power supply, 5-9PIN signal is optional.
- IP67/68 rating
- Voltage rating: 300V
- Cable Range: 3.5~18mm
- UL, TUV, CB, CCC, CE, RoHS approved
Main characteristics
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
Applicaiton of Bett M25 Connectors
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
