1.25inch～6.625inch Wireline Tubing Swage Slickline Tools

I.Overview

The Tubing Swage is a tool used to shape the tubing reducing area to ensure the smooth passage of downhole equipment. Sometimes it can also be used to open the orange peel type dead plug at the end of the tubing.

II.Structural features

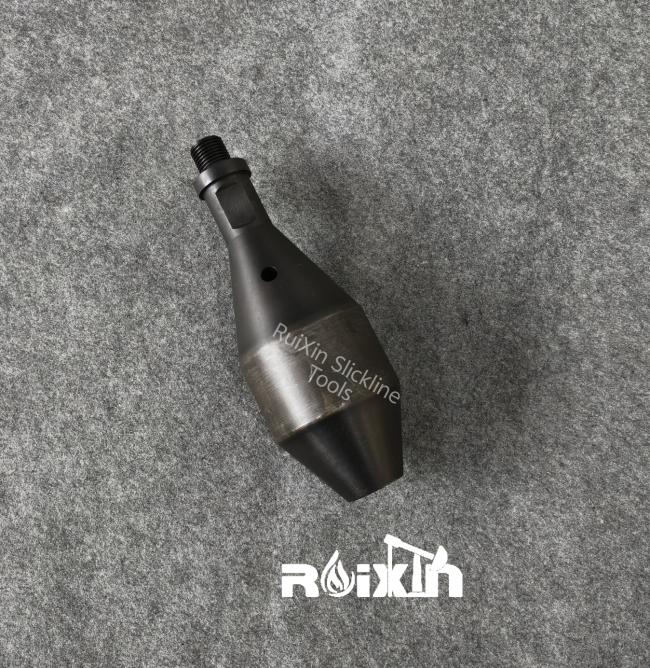

The Tubing  Swage is such a structure, the upper part of the external thread (or quick joint male end) and fishing neck; The inner diameter of the waist and the deformed tubing is roughly the same, so the middle is designed with ventilation or drainage holes, and the two ends of the waist are gradually thinner; The bottom can also be threaded to connect other tools. Tubing shaper is made of whole body alloy steel, and the parts used for shaping are quenched and tempered with a hardness of 43~45HRC.

III.Usage Connect

The tubing Swage to the lower part of the jar. When the tubing shaper goes down to the tubing reducing area and can no longer go down, the jar is used to jar downward to expand the reducing area, so as to ensure the smooth passage of the downhole device.

IIII.Any size can be customized according to customer requirements.

IIIII.Technical parameters

◆About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

◆Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

◆Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.

Welcome to contact us at any time.
