Herbal Extract 153kw Pilot Scale Spray Dryer

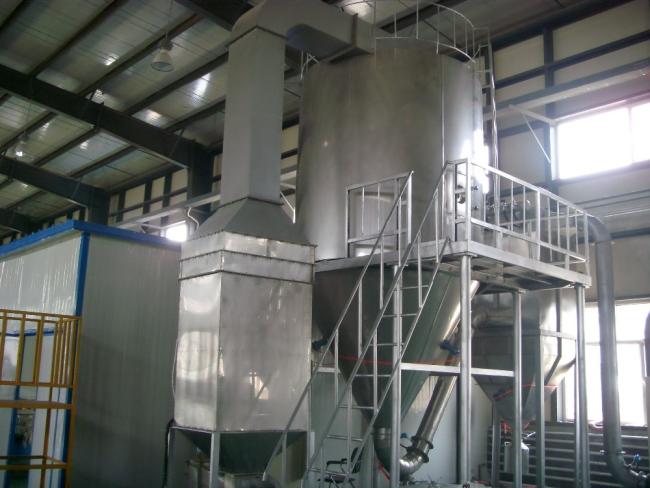

ZLPG Series Herbal Extract Spray Drying Equipment with cooling jacket
Descriptions
ZLPG Series Herbal Extract Spray Drying Equipment with cooling jacket adapts full-sealing form. It is equipped with three grades of purifying apparatus. The filtered air can meet the requirement of one hundred thousand cleanliness. The cooling jacket inside the inner tank and the top of drying chamber, which makes the wall temperature very low. So, it is suitable for material with high content of sugar or protein. Also, this spray dryer can be equipped with air sweeping device to prevent the material sticking to the inner surface.
Moreover, the phenomenon of carbonization and degeneration will not happen. Material receiving rate is raised greatly.
Working principle
ZLPG Series Herbal Extract Spray Drying Equipment with cooling jacket adopts full seal from.All parts are made of stainless steel.It is equipped with three grades of filter.The filtered air is one hundred thousand grades.The cooling device of wall is installed at the cylinder body.It makes the wall temperature less than 80℃.Air sweeping device is installed inside the drying tower. The product will not be burnt or deteriorated even stays on the way.The collection rate of powder is raised greatly.Moreover will not cause medicine mixed or wall stick.
Basic Principle:high-speed centrifuge atomizing for the extract of traditional Chinese medicine is an application of centrifuge atomizing technique.It is an high-speed atomizing dryer.The following problems are solved.
Features
1.Tower body has air cooled jacket.
2.Tower body is equipped with automatic vibration device.
3.Tower body and pipe line have cleaning hole and sewage discharge hole that can open quickly.
4.Thermostat feeding tank on request.
5.Mannal high pressure washing machine on request.
6.The parts that can contact raw material are made of stainless steel (all entirely stainless steel).
7.The collecting of raw material adopts two grades cyclone or one-grade cyclone and one-grade wet-method-deduster.
8.The temperature of inlet air can be controlled automatically and continuously.
9.Equipped with air sweeping device on request.
Technical parameters
| Type | 5 | 10 | 25 | 50 | 80 | 100 | 150 | 200 | 300 | |
| Evaporation rate( kg/h) | 5 | 10 | 25 | 50 | 80 | 100 | 150 | 200 | 300 | |
| Input capacity per hour (kg/h) | 6-7 | 12-14 | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 | |
| Solid content of raw material(%) | 18-25 | |||||||||
| Moisture of finished product(%) | 3-5 | |||||||||
| Electrical power(kw) | 36 | 45 | 63 | 99 | 132 | 153 | 204 | 246 | 330 | |
| Heating fuel | steam plus electricity | |||||||||
| collecting way and its efficiency | two-grad cyclone or grade cyclone duster and one-grade damp duster ≥95% | |||||||||
| automatic control | indicator of temperature of hot air and humidity of air exhaust | |||||||||
| temperature of air in (℃) | 150-200 | |||||||||
| temperature of air out (℃) | 80-100 | |||||||||
|
overall dimensions (mm) |
L | 5000 | 5500 | 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 |
| W | 3000 | 3500 | 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 | |
| H | 4500 | 4600 | 5200 | 6500 | 7600 | 8100 | 9000 | 9850 | 11100 | |
