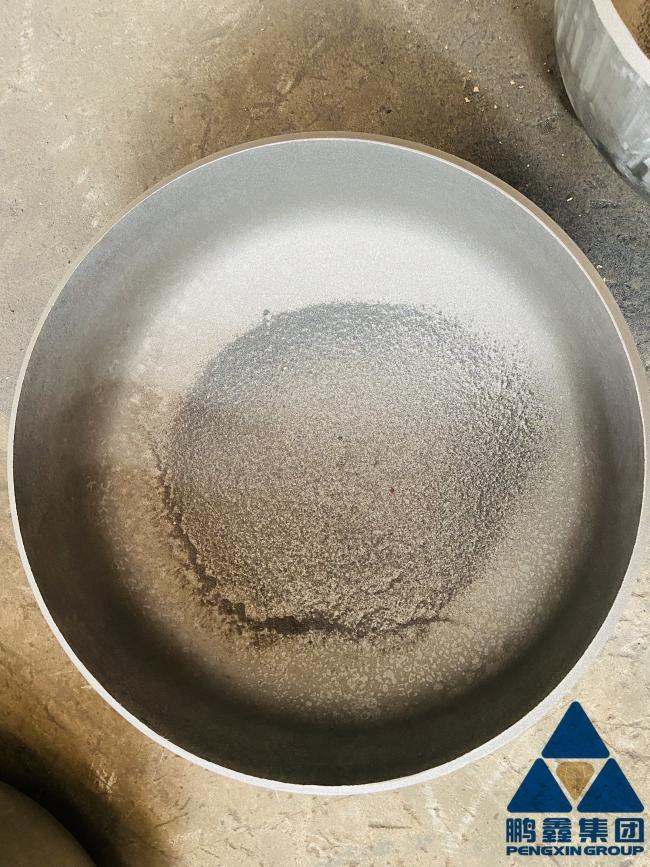

Seamless Round A234 WP5 Steel Pipe Cap , Stainless Steel Buttweld Caps DN100
Pipe cap, also known as head, plug, cover head, pipe cover and bulkhead, is a pipe fitting welded at the pipe end or installed on the external thread of the pipe end to cover the pipe. It is used to close the pipeline and has the same function as the pipe plug.
Type:
The form of blind plate is similar, except that the blind plate can be removed for plugging, while the welded pipe cap is not allowed to be removed. The design of pipe cap includes convex pipe cap, conical shell, variable diameter section, flat cover and tightening mouth.
The convex tube cap includes hemispherical cap, oval cap, disc cap and spherical cap. From the force point of view, the hemispherical cap is not good in convex pipe cap, but it is easy to manufacture in terms of manufacturing difficulty.
| Specifications | Cap |
| Pipe End Cap Pipe Fittings size | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| Pipe Cap Fittings Dimensions | ASME/ANSI B16.9, MSS-SP-43 |
| Bw Pipe Cap Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS |
| Cap Bw Sch 80 Types | Seamless / ERW / Welded |
| Bw Cap Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Pipe Cap Fittings Fittings | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9,ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Cap Bw Sch 80 Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Application |
Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc ASME B16.9 Schedule 10 Pipe Cap are an economical alternative for lower-pressure applications. ANSI B16.9 Schedule 40 Pipe Cap have a thicker wall for higher-pressure applications. |
