Six sided expansion pipeline local repair drilling tool non excavation rapid repair

Six sided expansion pipeline local repair drilling tool non excavation rapid repair

Product Description

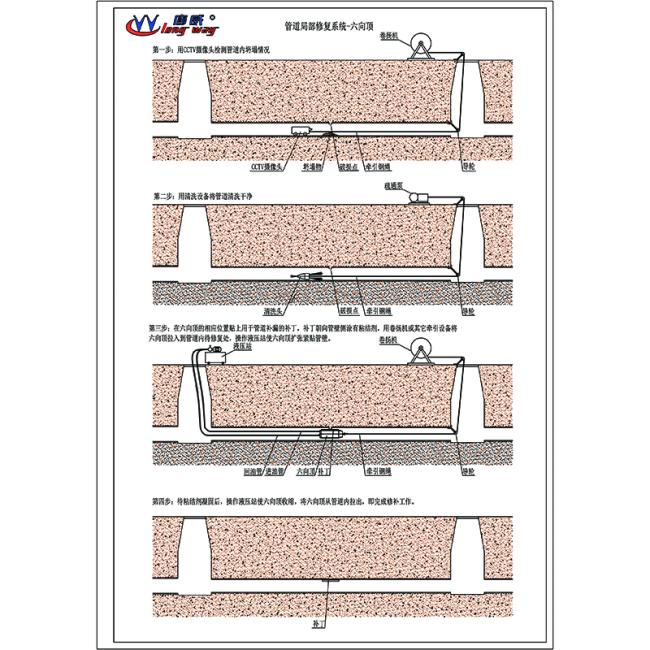

Six sided expansion local repair technology uses traction equipment to accurately deliver the six directional top to the collapsed position, and hydraulic drives six synchronously expanding top plates to uniformly apply radial force along the circumference of the pipeline, rounding the collapsed area and restoring it to the original design inner diameter, completing the structural repair of the old pipeline in one go.


Features

Using hydraulic drive, the circumference of the six sided top expands to the corresponding diameter at the same frequency, making the pipe wall evenly stressed. At the same time of expansion, the center of the six sided top automatically corrects to be concentric with the center of the old pipeline, thereby reducing damage to the pipe wall.

Compared with the traditional duckbill expansion repair method, the duckbill expansion method only has two symmetrical expansion forces, which can easily cause uneven stress on the entire circumference of the old pipeline and damage the inner wall of the pipeline.

Six sided expander applies forces uniformly in six directions around the circumference of the old pipeline, ensuring even stress distribution and effectively avoiding the risk of secondary damage to the old pipeline caused by uneven stress distribution at local locations.

This device can flexibly adjust the expansion size according to different pipe diameter specifications, with strong adaptability and high repair efficiency. It can achieve fast and accurate local repair operations, greatly shorten the construction period, and reduce labor and material costs.





FAQ

Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).

Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.

Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.

Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.

Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
