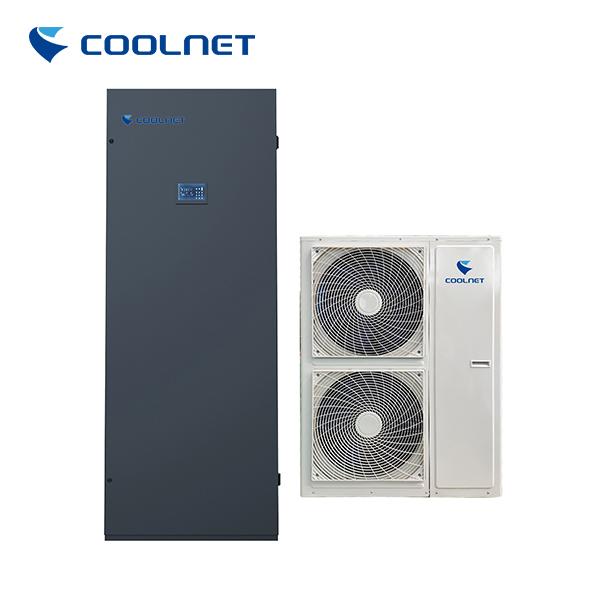

R410A Refrigerant 6-20KW Floor Standing Precision Air Conditioning Unit for Computer Rooms
Refrigerant R410a Computer Room 6-20KW Precision Air Conditioning
Product Introduction
|
The Cool-smart series computer room precision air conditioner is designed for small and medium-sized computer rooms, base stations, equipment rooms, etc. Micro-cool has the characteristics or high air volume and small enthalpy with high reliablity, high efficiency, long working life and energy saving advantages. Benifits
|
|
Advantages
 |
R410AHigh-efficiency Comprossor • Adopt environmentally friendly refrigerant R410A, high performance • The compressor has strong ability to withstand impurities and liquid shock • Powerful built-in protection functions, including built-in motor disconnection protection (temperature and current), built-in pressure relief valve, built-in exhaust temperature protection, built-in anti-stop reverse stop valve, etc.
Condenser stepless speed regulation • Stepless speed regulation of condenser • Energy saving • Anti-corrosion and long-life design • The condenser is easy to install and can be installed on the roof or foundation platform • Small size and light weight • Ultra low noise
Large area hydrophilic evaporator • Large area • 25% larger than the comfort air conditioner in the same power section • Large pipe diameter design, less pressure loss, high efficiency • Internal thread • Hydrophilic membrane • High-efficiency heat exchange aluminum fins • High withstand voltage design
|
Applications
|
Computer room; Small and medium data center; Base Station; Storage room, testing room; 4G/5G communication base station; Equipment room with High precision control of temperature and humidity. |
 |
Product Parameters
|
Model |
M04 |
M06 |
M08 |
M13 |
M16 |
M20 |
|
|
Power Supply |
220V1Ph-50Hz |
380V3Ph-50Hz |
|||||
|
Air discharge |
Up Front/Down |
||||||
|
Technical Data Sheet |
|||||||
|
AC Fan |
Total cooling capacity-KW |
4.2 |
6.4 |
7.5 |
12.5 |
16.8 |
20.2 |
|
Sensible cooling capacity-KW |
3.9 |
5.8 |
6.9 |
11.3 |
15.3 |
18.3 |
|
|
Unit FLA-A(heating, humidifying type) |
20.0 |
25.0 |
16.8 |
22.0 |
23.5 |
28.6 |
|
|
Compressor Quantity |
1 |
||||||
|
Fan Quantity |
1 |
||||||
|
Air Volume-m3/h |
1600 |
1900 |
2300 |
3600 |
5100 |
6500 |
|
|
Heater Capacity-KW |
3.0 |
3.0 |
6.0 |
6.0 |
6.0 |
6.0 |
|
|
Humidification-kg/h |
3 |
3 |
3 |
3 |
6 |
6 |
|
|
Power of humidifier-KW |
2.3 |
2.3 |
2.3 |
2.3 |
4.5 |
4.5 |
|
|
Outdoor Condenser |
|||||||
|
Model |
SCA020 |
SCA020 |
SCA030 |
SCA030 |
SCA050 |
SCA050 |
|
|
Standard unit operating temperature range-℃ |
-15-45℃ |
||||||
|
Low Temperature Components Operating Temperature Range-℃ |
-40-45℃ |
||||||
