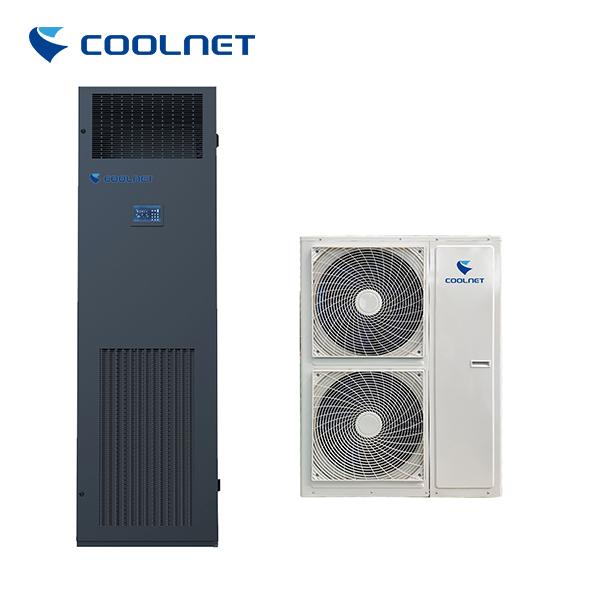

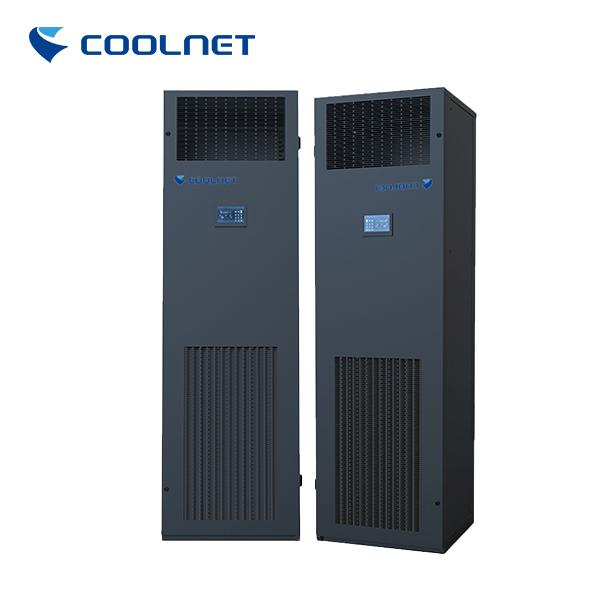

6KW 50HZ 6000W Precision Air Conditioner for Data Center and IT Room Cooling
6KW Data Center Precision Air Conditioner,50HZ Data Center Precision Air Conditioner,6000W IT Room Air Conditioning
Product Introduction
|
Cool-smart series constant temperature and humidity precision air conditioner is with modular design, high EER, large screen human-computer interface and intelligent control system. It has options of air-cooled, water-cooled, chilled water and double source cooled.
The Cool-Smart Series computer room air conditioner is designed for small and medium-sized computer rooms, base stations, equipment rooms, etc., Cool-Smart has the characteristics of high air volume and small enthalpy with high reliablity , high efficiency, long working life and energy saving advantages.
|
 |
Component with High-Quality Control
|
|
Cabinet The cabinet ensures the protection of the unit under any shipping situation and operational environment with its distinctive frame design and black steel frame, which showcases impeccable manufacturing technology, professional design, and exquisite look.
Expansion valve Expansion valve uses highly reliable, stable, and exact thermal expansion valves to precisely control the delivery of refrigerant. We use cutting-edge electronic expansion valves in high-performance, precise air conditioning systems in order to reduce the energy consumption for refrigeration equipment. |
Advantages
|
High energy efficiency Heat ratio is up to 91%. Compressor energy efficiency ratio is over 3.1, and chilled water cooled unit’s cooling energy efficiency is larger than 25. The optimal and high efficiency compressor and fans. “W/M” type evaporator with super large heat exchange area. Independent air duct design can reduce air resistance significantly and minimize fans power. Variable frequency design on ODU is more efficient and has longer working life. Advanced control logic can effectively avoid competitive running and output cooling capacity according to actual cooling capacity demand.
High reliability Provide Constant temperature & humidity, cleanness precision environment to ensure the main equipment in good running condition. 24-hour running design guarantee main equipment operation safety. All units had passed a severe running test before delivery, which can ensure units’ high reliability.
|
|
Technical Parameter
|
Model |
M04 |
M06 |
M08 |
M13 |
M16 |
M20 |
|
|
Power Supply |
220V1Ph-50Hz |
380V3Ph-50Hz |
|||||
|
Air discharge |
Up Front/Down |
||||||
|
Technical Data Sheet |
|||||||
|
AC Fan |
Total cooling capacity-KW |
4.2 |
6.4 |
7.5 |
12.5 |
16.8 |
20.2 |
|
Sensible cooling capacity-KW |
3.9 |
5.8 |
6.9 |
11.3 |
15.3 |
18.3 |
|
|
Unit FLA-A(heating, humidifying type) |
20.0 |
25.0 |
16.8 |
22.0 |
23.5 |
28.6 |
|
|
Compressor Quantity |
1 |
||||||
|
Fan Quantity |
1 |
||||||
|
Air Volume-m3/h |
1600 |
1900 |
2300 |
3600 |
5100 |
6500 |
|
|
Heater Capacity-KW |
3.0 |
3.0 |
6.0 |
6.0 |
6.0 |
6.0 |
|
|
Humidification-kg/h |
3 |
3 |
3 |
3 |
6 |
6 |
|
|
Power of humidifier-KW |
2.3 |
2.3 |
2.3 |
2.3 |
4.5 |
4.5 |
|
|
Outdoor Condenser |
|||||||
|
Model |
SCA020 |
SCA020 |
SCA030 |
SCA030 |
SCA050 |
SCA050 |
|
|
Standard unit operating temperature range-℃ |
-15-45℃ |
||||||
|
Low Temperature Components Operating Temperature Range-℃ |
-40-45℃ |
||||||
