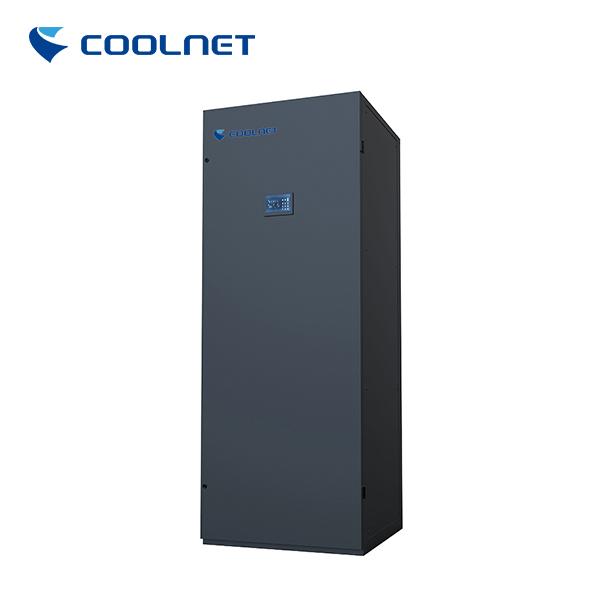

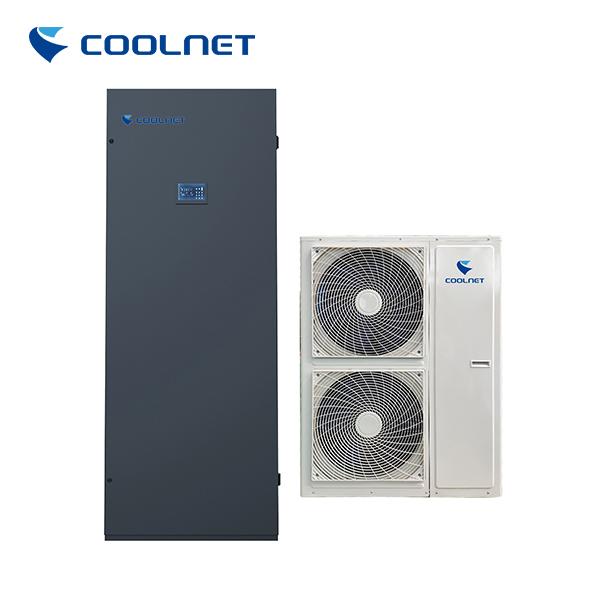

High Energy Efficiency Close Control Unit CCU Air Conditioning with 4-20KW Cooling Capacity Floor Standing
High Energy Efficiency Close Control CCU Air Conditioning
Products Introduction
|
Coolnet power, the leading provider of critical power supply and cooling system, specializes in manufacturing of precision air conditioner, UPS uninterrupted power supply and data center integrated solution in China .
Benefits  |
 |
Product Features
 |
Cyber Master series large and medium-sized air-cooled room-level precision air conditioners cover a cooling capacity of 20kW~120kW and optional environmentally friendly refrigerant R4 10a. Chilled water room-level precision air conditioners have a coolino canacitf 30-200kW. Cyber Master series precision air conditioner adopts modular structure, which can realize different cooling canacitv bv combining diferentmodules. herearea vanely ot ar supply and return methods, which can be selected and matched according to the site |
Application Range
|
„ Computer room and data center „ Switch room and mobile center station in telecommunication „ High-tech environment and lab „ Industrial automation control room and precision manufacturing workshop „ Standard test room and calibration center „ UPS and battery room „ Test room in hospital „ Biochemical culture chamber |
 |
Technical Parameters
| Model: CYA | T26D/U | T31D/U | T35D/U | T41D/U | T45D/U | T50D/U | T55D/U | T61D/U | T70D/U | T76D/U | T85D/U | T90D/U | T100D/U | |
| Power Supply | 380V 3Ph-50HZ | |||||||||||||
| Air Discharge | Upflow/Downflow | |||||||||||||
| Cooling Capacity :24℃/50%RH | ||||||||||||||
| Total Capacity (1) | KW | 26.9 | 31.9 | 35.9 | 41.9 | 45.3 | 50.5 | 55.4 | 61.4 | 70.5 | 76.2 | 85.5 | 90.8 | 102 |
| Sensible | KW | 24.8 | 29.5 | 33.1 | 38.8 | 42.5 | 47.8 | 51.6 | 57.5 | 65.2 | 71.2 | 79.5 | 84.5 | 95.7 |
| AEER | W/W | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.7 | 3.7 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 |
| Air Flow | m3/h | 8000 | 9500 | 10000 | 11500 | 13000 | 15500 | 16000 | 17500 | 18500 | 20500 | 22500 | 23500 | 24200 |
| Compressor Hermetic scroll | ||||||||||||||
| Refrigerant | R407C | |||||||||||||
| Compressor quantity | PC | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Fan Section Centrifugal fan (Optional EC) | ||||||||||||||
| Fan quantity | PC | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Rated current | A | 4.3 | 4.3 | 4.3 | 4.4 | 4.4 | 4.4 | 5 | 5.2 | 5.2 | 6.5 | 16.5 | 16.5 | 16.5 |
| Rated power | W | 1600 | 1600 | 1800 | 1800 | 2000 | 2000 | 3000 | 3300 | 3900 | 3900 | 5400 | 6300 | 6300 |
| Total heating capacity | KW | 6 | 6 | 6 | 9 | 9 | 9 | 9 | 9 | 9 | 12 | 12 | 12 | 12 |
| Material | PTC | |||||||||||||
| Humidifier Section Electrode type | ||||||||||||||
| Capacity | Kg/h | 5 | 5 | 5 | 5 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Rated Current | A | 6 | 6 | 6 | 6 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Condenser Model | 2*58 | 2*58 | 2*58 | 2*58 | 2*80 | 2*80 | 2*100 | 2*100 | 2*120 | 2*150 | 2*150 | 2*165 | 2*180 | |
