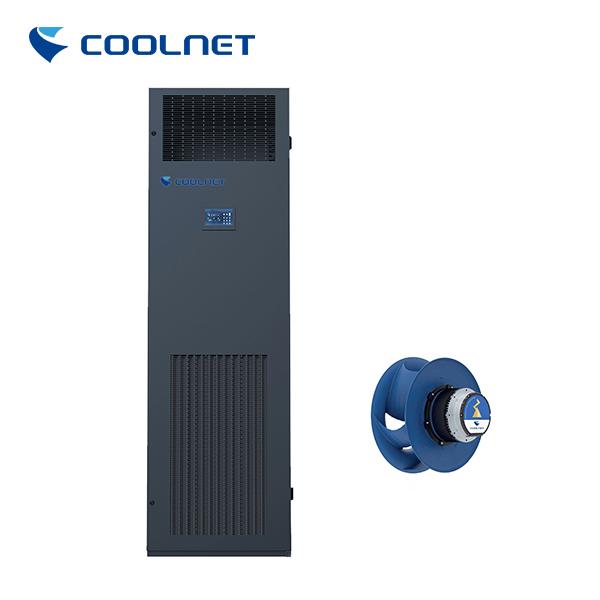

Coolnet precise air conditioning is dedicated to the equipment room and machinery room that place communication apparatus, computers, precise instruments, etc. Coolnet precise air conditioning can achieve efficiency controlling of the ambient temperature and humidity with more precision than normal type of air ocnidtioners, in this way, the long-term stable and continuously run of the unit can be guaranteed.

Coolnet has rich research and manufacturing experience in the field of data center equipment, with world一class laboratories, production testing equipment and a complete Iike of key equipment rooms. And passed the ISO9001 quality management system certification,18014001 environmental management system certification, and the products have passed CE certification, CCC certification, CQC certification, CRAA quality certification, etc.

It is equipped with cutting-edge electric control technology, rigorously conforms with CE and IEC requirements, and can function with a power supply of 380V±20%. It also has a power supply protection module fitted, allowing it to choose a protective value in a range of 380V±50%. It will automatically safeguard the unit if the voltage exceeds the set range. The device will automatically resume as soon as the voltage returns to normal.

Expansion valve

Expansion valve uses highly reliable, stable, and exact thermal expansion valves to precisely control the delivery of refrigerant. We use cutting-edge electronic expansion valves in high-performance, precise air conditioning systems in order to reduce the energy consumption for refrigeration equipment.

Humidifier

An internationally advanced electrode steam humidification system under which the amount of humidification and water inflow and outflow are all controlled by computer, the auto cleaning program for the humidifier cylinder ensures normal humidification efficiency of the cylinder.

Comprossor

Model

M04

M06

M08

M13

M16

M20

Power Supply

220V1Ph-50Hz

380V3Ph-50Hz

Air discharge

Up Front/Down

Technical Data Sheet

AC Fan

Total cooling capacity-KW

4.2

6.4

7.5

12.5

16.8

20.2

Sensible cooling capacity-KW

3.9

5.8

6.9

11.3

15.3

18.3

Unit FLA-A(heating, humidifying type)

20.0

25.0

16.8

22.0

23.5

28.6

Compressor Quantity

1

Fan Quantity

1

Air Volume-m3/h

1600

1900

2300

3600

5100

6500

Heater Capacity-KW

3.0

3.0

6.0

6.0

6.0

6.0

Humidification-kg/h

3

3

3

3

6

6

Power of humidifier-KW

2.3

2.3

2.3

2.3

4.5

4.5

Outdoor Condenser

Model

SCA020

SCA020

SCA030

SCA030

SCA050

SCA050

Standard unit operating temperature range-℃

-15-45℃

Low Temperature Components Operating Temperature Range-℃

-40-45℃
