DC Server Rack Mount Air Conditioner with 3.5KW-9KW Cooling Capacity for Telecom Cabinets in 220V/380V
Telecom Cabinet DC Server Rack Mount Air Conditioner

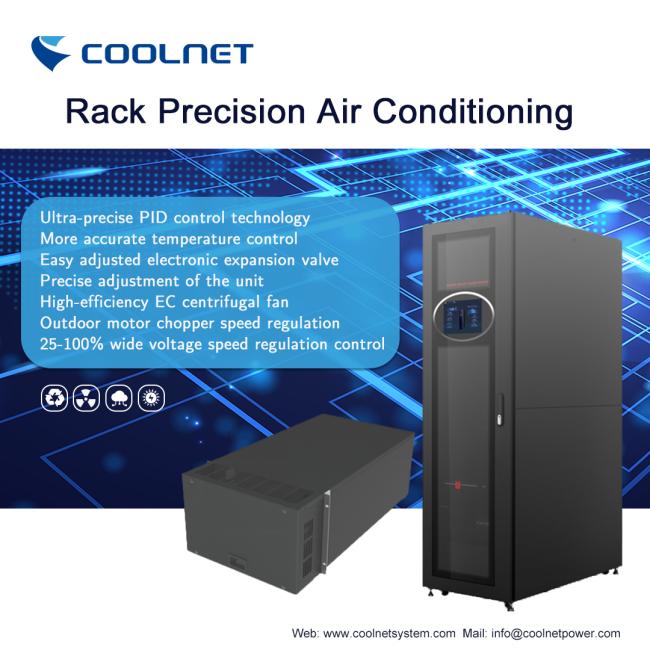

Product Introduction
|
The Rack Mounted Precision Air Conditioner for Large Data Centers is a state-of-the-art cooling solution designed to meet the rigorous demands of modern data centers. This advanced air conditioner provides efficient and reliable cooling, ensuring optimal conditions for critical IT infrastructure. With its compact design and flexible installation options, it is the perfect choice for maximizing space utilization in large data centers.
Features
|
 |
Product Advantages
 |
Precise Cooling:
The air conditioner offers precise temperature control, maintaining a stable and consistent environment for sensitive equipment within the data center.
High Cooling Capacity:
With its high cooling capacity, this unit effectively dissipates heat generated by servers, switches, and other components, preventing overheating and ensuring reliable performance.
Intelligent Humidity Regulation:
It incorporates intelligent humidity regulation to prevent static electricity buildup and minimize the risk of equipment failure due to moisture-related issues.
Space-Saving Design:
The rack-mounted design allows for easy integration into server racks, optimizing space utilization and reducing the footprint within the data center.
Redundancy and Reliability:
This air conditioner is equipped with redundant components to ensure continuous cooling, even in the event of a component failure, minimizing downtime and maximizing uptime.
|
Indoor Unit Parameters
| Model-CJA | 0003 | 0005 | 0007 | 0012 | |||
| Phase/Function | 1.5P,Single Phase | 2P,Single Phase | 3P,Single Phase | 5P,Single Phase | |||
| Parameters | |||||||
| Cooling capacity kW | 3.5 | 5 | 7.5 | 12.5 | |||
| Sensible cooling capacity k | W 3.5 | 5 | 7.5 | 12.5 | |||
| Air volume m³/h | 800 | 1150 | 1600 | 2300 | |||
| Sensible heat ratio % | 100 | 100 | 100 | 100 | |||
| Heating kW (Option) | 1 | 1 | 2 | 3 | |||
| Maximum operating current A | 15 | 15 | 25 | 34 | |||
| Power Cord Cable Specifications | mm 3×2.5 | 3×2.5 | 3×4 | 3×6 | |||
| Indoor/outdoor unit shut-off valve | |||||||
| Refrigerant gas pipe φ mm | 12.7 | 12.7 | 12.7 | 15.88 | |||
| Refrigerant liquid pipe φ mm | 9.52 | 9.52 | 9.52 | 9.52 | |||
| Indoor unit structural parameters | |||||||
| Dimension:W×D×H mm | 442×714×175 (4U) 442×714×218 (5U) |
442×714×218 (5U) | 442×714×351 (8U) | 442×714×440 (10U) | |||
| Outdoor Unit | |||||||
| Type-CJT | 3005 | 3005 | 3008 | 3013 | |||
| Quantity | 1 | 1 | 1 | 1 | |||
Outdoor Unit Parameters
| Type- CJT | 3005 | 3005 | 3008 | 3013 | |||
| Power supply | 220Vac/1Ph/50Hz | ||||||
| Installation | Vertical | ||||||
| Speed mode | Stepless speed regulation | ||||||
| Noise dBA | 54 | 55 | 56 | 58 | |||
| Rated current A | 6 | 6 | 10 | 15 | |||
| Power Cord Cable Specifications | mm 4×1.5 | 4×1.5 | 4×2.5 | 4×4 | |||
| Communication cable specificati mm (with shielding function) | on 3×1 | 3×1 | 3×1 | 3×1 | |||
| Structural parameters of outdoor unit | |||||||
| Dimension:W×D×H mm | 840×285×610 | 840×285×610 | 880×360×800 | 930×390×1270 | |||
① The power cord of the outdoor unit must be connected from the indoor unit;
