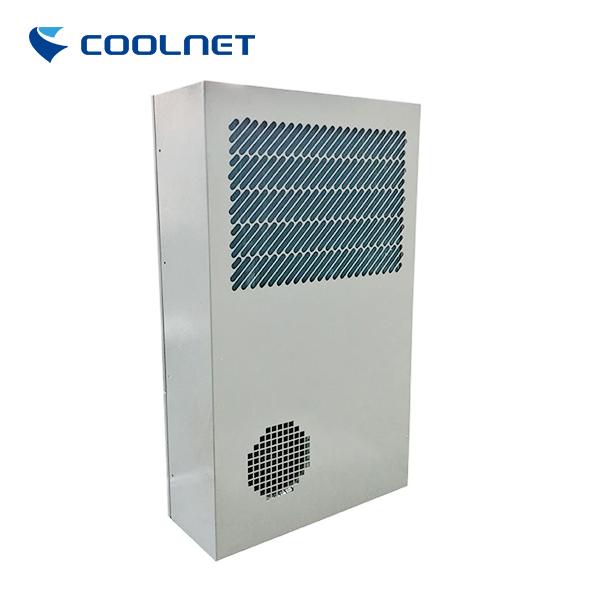

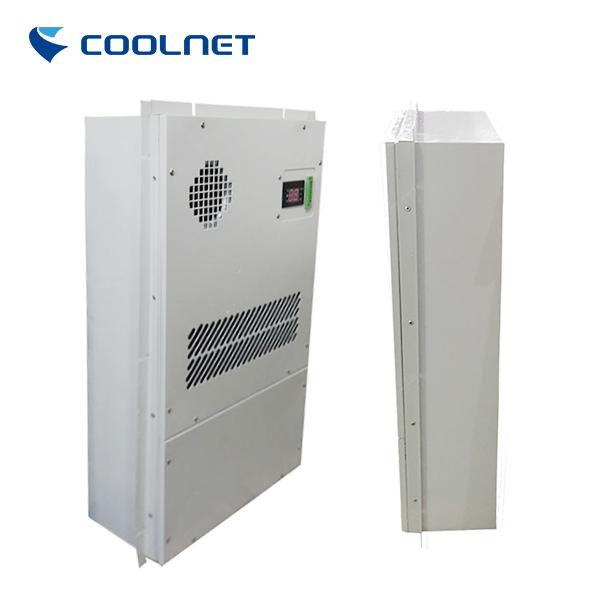

4000W Cabinet Type Air Conditioner with Cabinet Door Embedded and R410A Environmentally Friendly Refrigerant
4000W Cabinet Type Air Conditioner Door / Side Embeded
Product Introduction
| Cabinet air conditioner service object is mainly electrical, mechanical equipment. Electrical equipment at work due to the role of current will usually heat, and the temperature is too high will affect the service life and reliability of electrical components, and will make the insulation device premature aging, or reduce the insulation value, so that a part of the conductor resistance becomes large, heat and burn. Usually electrical components will be marked with the maximum service temperature, or different temperature corresponding to different performance. The service object of the cabinet air conditioner is electrical, electronic or mechanical components, rather than people, so the setting temperature can be set very high, between 30℃~45℃, the general default temperature is 35 ℃, and the electrical components of wind speed, noise has no requirements, in fact, the larger air circulation in the cabinet can reduce the local heat island phenomenon of electrical components, contribute to the heat dissipation of electrical components. In addition to outdoor cabinets, most cabinets are installed indoors, and some production environments are complex, such as high temperature, high humidity, high dust, and even oil pollution or corrosive gas. In particular, the phenomenon of high temperature and high dust is relatively common. The working environment temperature of cabinet air conditioners is usually higher than 42℃, and the maximum temperature is 70~80℃, and the following grade requirements should be met: For example, it can work continuously for 24 hours, stronger than civil products, more extensive voltage requirements and so on, which also requires that the cabinet air conditioner must be able to meet the reliability requirements for use in this complex environment. |
 |
Features
 |
Energy efficient |

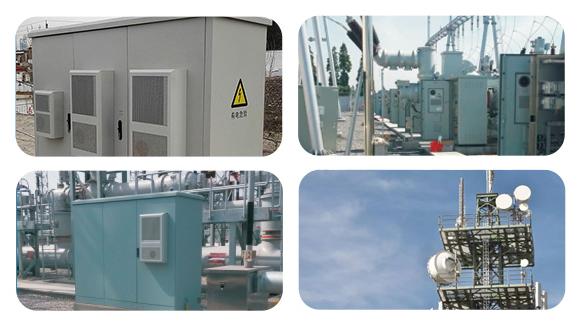

Application
| Computer room and small data center; Computer room cabinets of government enterprises and institutions; Residential, community cabinets; Communication base station, machine room cabinet. |
 |
Technical Specification
| Model | EA-300 | |
| Power Supply( V,Hz) | 1P 220,50 | |
| Dimension (mm) | W | 286 |
| H | 445 | |
| D | 175 | |
| Cooling Capacity | 300W | |
| Running Current | 1.48A | |
| Starting Current | 6.5A | |
| Power | 287W | |
| Refrigerant Type | R134a | |
| Noise Level | 55dB | |
| Cabinet Protection Ration | internal circuit | IP34 |
| external circuit | IP33 | |
| Cabinet Temperature Limits | 25℃~38℃(Factory Set 30℃) | |
| Ambient Temperature Limits | -5℃~43℃ | |
| Power Connection | Triangle Power Plug( 2 Meters Length) | |
| Weight | 15Kg | |
| Color | RAL 7035(Light Gray) | |
| Flow Rate | internal circuit | 70m3/h |
| external circuit | 150m3/h | |
| Temperature Control Type | Digital Display | |
|
Test condition: dry bulb temperature inside the cabinet 35 ℃, wet bulb temperature 26 ℃; dry-bulb temperature outside the cabinets 35 ℃ |
||
Factory View

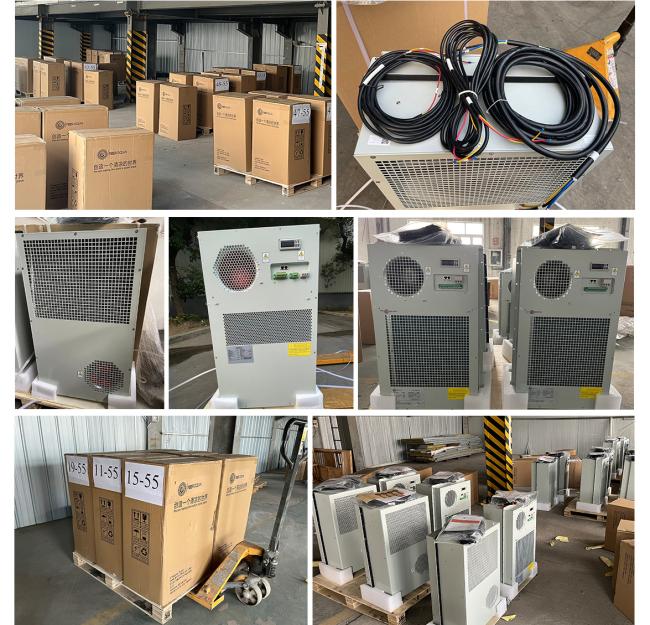

Packing&Delivery

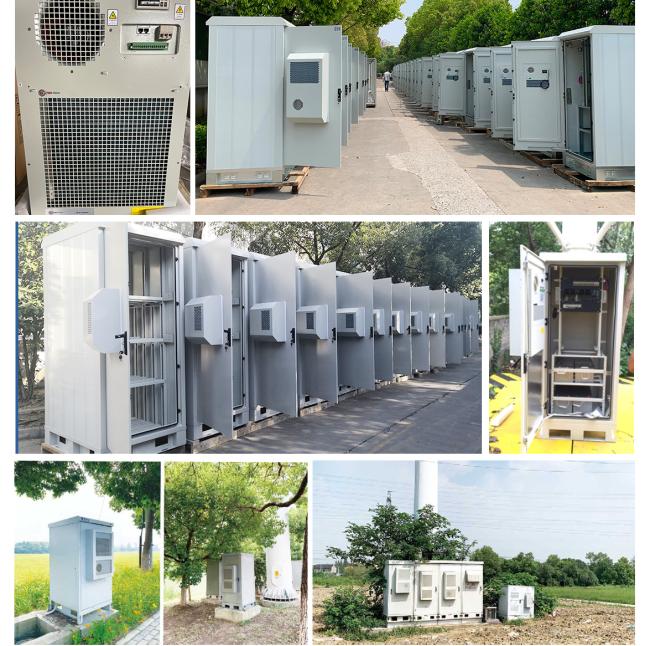

Case
