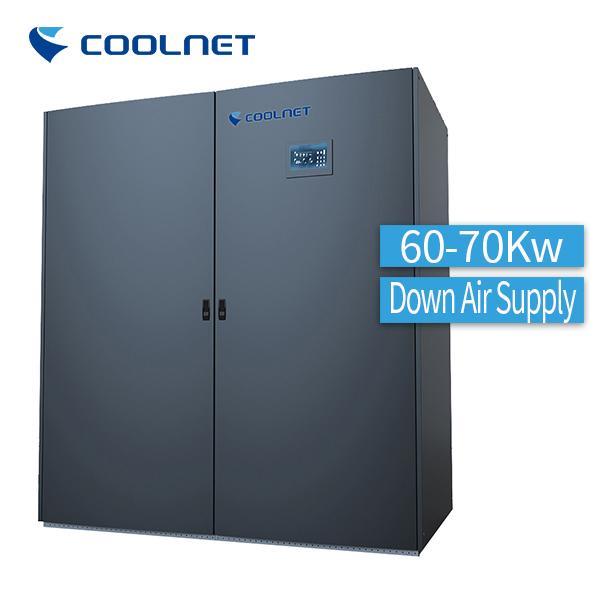

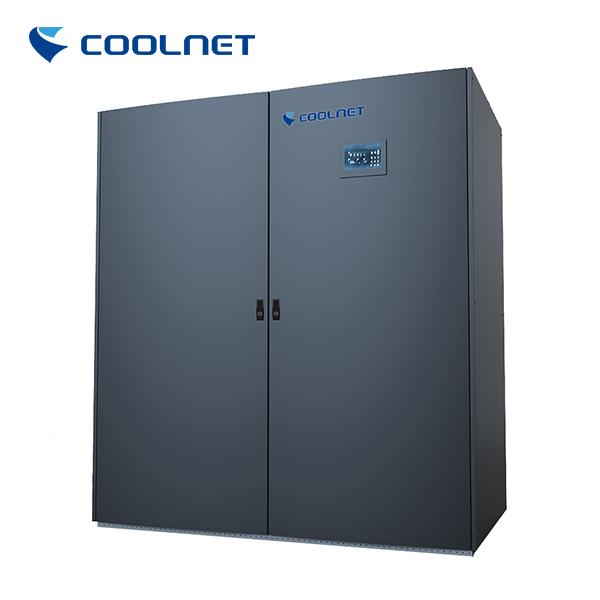

High Reliable 60-75KW Precision Air Conditioner with Floor Standing Mounting for Data Centers

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 4W
Brand: Coolnet
Product Description

High Reliable Precision Air Conditioners For Data Centers Server Rooms 60-75KW



Product Introduction

Coolnet precision air conditioners is also called a constant temperature and humidity air conditioner, which is characterized by having a large air volume and adapting to various changes in thermal load. And coolnet precision air conditioner can control the temperature difference range to 0.1 degrees Celsius or even higher. Similarly, this series of precision air conditioners can use a larger circulating air volume to reduce the enthalpy difference under a certain cooling capacity, so usually the unit can only operate under a relatively high sensible heat ratio.



Applications

  • Mobile base station.
  • Network management center.
  • Small computer room.
  • Small laboratory.
  • Wine cellar, etc
  • server room,computer room
  • workshop, exhibition hall, precision machine manufacture, metering room



Technical Features

Fan

Use the efficient and low-noise EBM backward tilt centrifugal wind motorized balance test to ensure long life, high energy efficiency, low energy consumption and low noise operation. Compared with equipment with the same air volume in the industry, the power consumption is the lowest.

Condenser

The air-cooled condenser is made of marine grade corrosion-resistant materials, has outstanding rigidity and anti-corrosion functions, and is accustomed to various environmental conditions. Fully adjustable speed electric fans are used to achieve energy saving and low noise.

Compressor

Use a scroll compressor with a high energy efficiency ratio. The reduction of the moving parts of the scroll compressor reduces the noise and sensation of the unit a lot; the compression process of the compressor is continuous and stable

  • Advantages





    1. Cooling capacity measurement conditions: inlet air dry bulb temperature 23°C, wet bulb temperature 17°C; condenser inlet air dry bulb temperature 35°C, wet bulb temperature 24°C.
    2. Reasonable refrigeration cycle, convenient maintenance, compact structure, small appearance, all maintenance and maintenance can be carried out frontally, which effectively reduces the installation and maintenance space, and is convenient for installation, transportation and maintenance.

Technical Parameters

Model: CYA T26D/U T31D/U T35D/U T41D/U T45D/U T50D/U T55D/U T61D/U T70D/U T76D/U T85D/U T90D/U T100D/U
Power Supply 380V 3Ph-50HZ
Air Discharge Upflow/Downflow
Cooling Capacity :24℃/50%RH
Total Capacity (1) KW 26.9 31.9 35.9 41.9 45.3 50.5 55.4 61.4 70.5 76.2 85.5 90.8 102
Sensible KW 24.8 29.5 33.1 38.8 42.5 47.8 51.6 57.5 65.2 71.2 79.5 84.5 95.7
AEER W/W 3.6 3.6 3.6 3.6 3.6 3.7 3.7 3.6 3.6 3.6 3.6 3.6 3.6
Air Flow m3/h 8000 9500 10000 11500 13000 15500 16000 17500 18500 20500 22500 23500 24200
Compressor Hermetic scroll
Refrigerant R407C
Compressor quantity PC 2 2 2 2 2 2 2 2 2 2 2 2 2
Fan Section Centrifugal fan (Optional EC)
Fan quantity PC 2 2 2 2 2 2 2 2 2 3 3 3 3
Rated current A 4.3 4.3 4.3 4.4 4.4 4.4 5 5.2 5.2 6.5 16.5 16.5 16.5
Rated power W 1600 1600 1800 1800 2000 2000 3000 3300 3900 3900 5400 6300 6300
Total heating capacity KW 6 6 6 9 9 9 9 9 9 12 12 12 12
Material PTC
Humidifier Section Electrode type
Capacity Kg/h 5 5 5 5 13 13 13 13 13 13 13 13 13
Rated Current A 6 6 6 6 15 15 15 15 15 15 15 15 15
Condenser Model   2*58 2*58 2*58 2*58 2*80 2*80 2*100 2*100 2*120 2*150 2*150 2*165 2*180



Certificates



Factory Details



Packing & Delivery

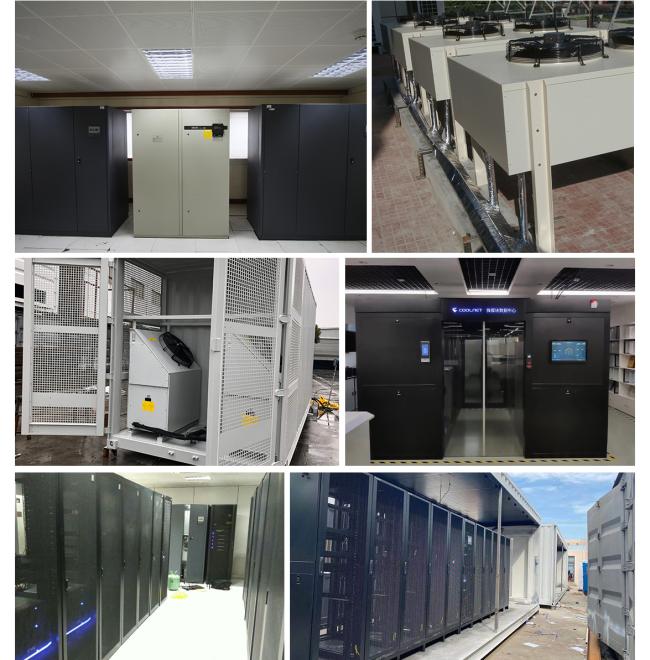

Case
