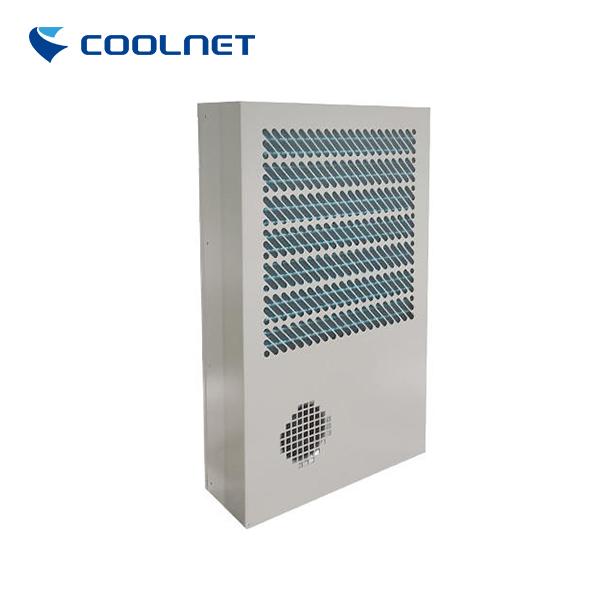

Door Mounted 220VAC Cabinet Air Conditioner with 3000W Cooling Capacity for Telecom Sites
Electric Cabinet Air Conditioner/Air Conditioner/Cooling System 3000W
Product Introduction
|
Coolent is a professional thermal control solutions provider for outdoor cabinets. Coolnet has accumulated rich technological experience and lots of application in this field. The EA series is the result of Coolent technology applied in AC and DC dual powered outdoor cabinet.The cooling range is 1000~3000W, heat exchanger range is 80w/k~120w/k. Coolnet also has many other series products for outdoor cabinet and base station usage. Such as AC air conditioner, DC air conditioner and heat exchanger.
Benefits
|
 |
Advantages
 |

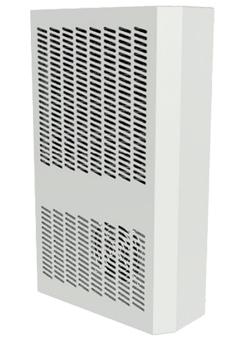

The EA 300 is a compact, high efficient hybrid air conditioner with heat exchanger. The design is optimized for applications with limited space available, but where functionality and performance still cannot be compromised. Ø 220VAC for air conditioner, -48VDC for heat exchanger Ø 3000W cooling capacity @L35L35 Ø 120w/k heat exchanger Ø Compact design Ø Door mounted – easy integration in outdoor cabinets and enclosures Ø Wide working temperature range: -40ºC to +55 ºC Ø Air conditioner and heat exchanger system as backup Ø Energy saving, different cooling mode for varied ambient conditions Ø Low noise, the noise level of unit can be reduced according to the heat load, silently operating in most time Ø Lifetime >10 years – minimum maintenance Ø Environmental friendly – R134a and RoHS compliant Ø IP55 and Corrosion Proof Ø Dedicated design by delay start Ø RS485 for remote control |

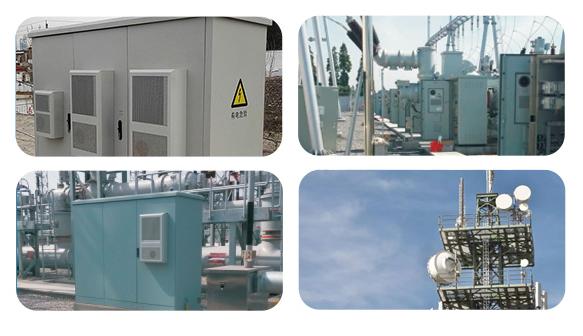

Application
|
Ø Outdoor Radio Base Stations / Telecom Cabinets Ø Outdoor Solar Powered Telecom Cabinets Ø Outdoor Power Supply Cabinets Ø Outdoor Wind Power Control Cabinets / Shelters |
 |
Technical Specification
| Model | EA-300 | |
| Power Supply( V,Hz) | 1P 220,50 | |
| Dimension (mm) | W | 286 |
| H | 445 | |
| D | 175 | |
| Cooling Capacity | 300W | |
| Running Current | 1.48A | |
| Starting Current | 6.5A | |
| Power | 287W | |
| Refrigerant Type | R134a | |
| Noise Level | 55dB | |
| Cabinet Protection Ration | internal circuit | IP34 |
| external circuit | IP33 | |
| Cabinet Temperature Limits | 25℃~38℃(Factory Set 30℃) | |
| Ambient Temperature Limits | -5℃~43℃ | |
| Power Connection | Triangle Power Plug( 2 Meters Length) | |
| Weight | 15Kg | |
| Color | RAL 7035(Light Gray) | |
| Flow Rate | internal circuit | 70m3/h |
| external circuit | 150m3/h | |
| Temperature Control Type | Digital Display | |
|
Test condition: dry bulb temperature inside the cabinet 35 ℃, wet bulb temperature 26 ℃; dry-bulb temperature outside the cabinets 35 ℃ |
||
Certification

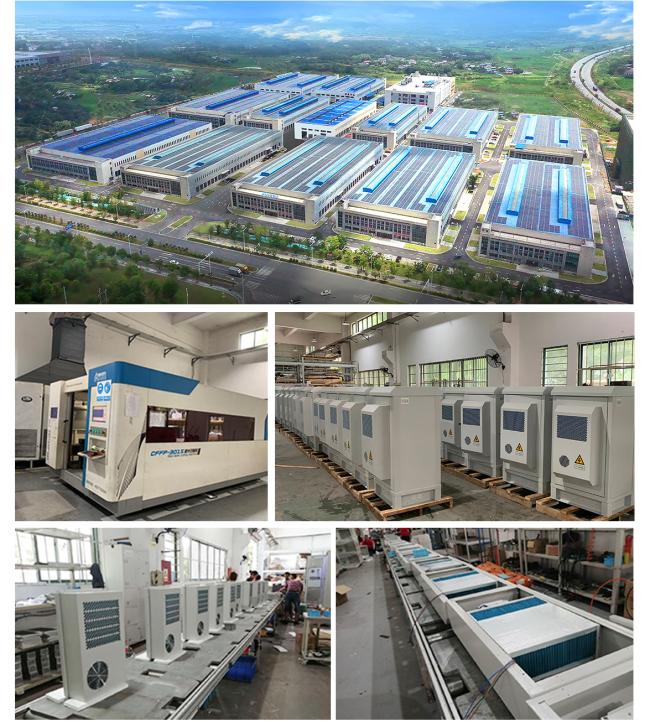

Factory View

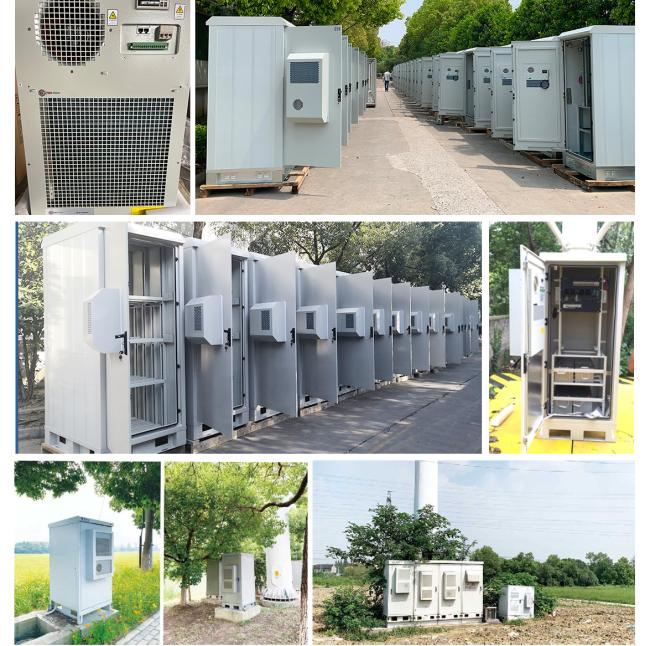

Case
