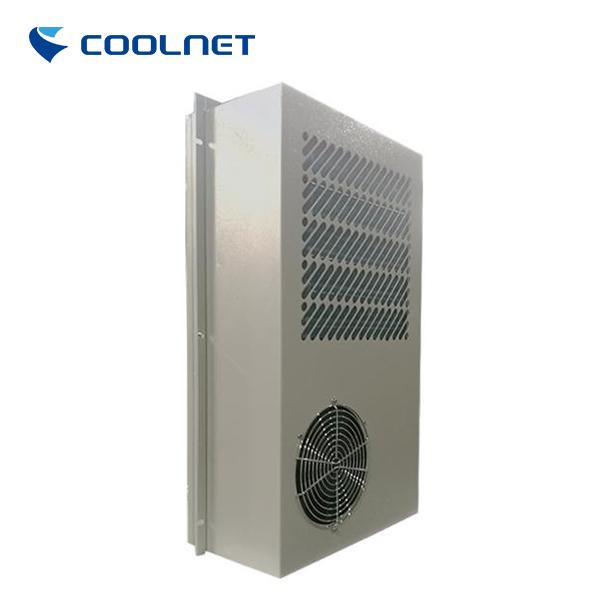

IP55 2000W Door Mounted Cabinet Air Conditioner for Telecom and Industrial Use
IP55 2000W Outdoor Electric Telecom Door Mounted AC220V Industrial Cabinet Air Conditioner
Product Introduction
|

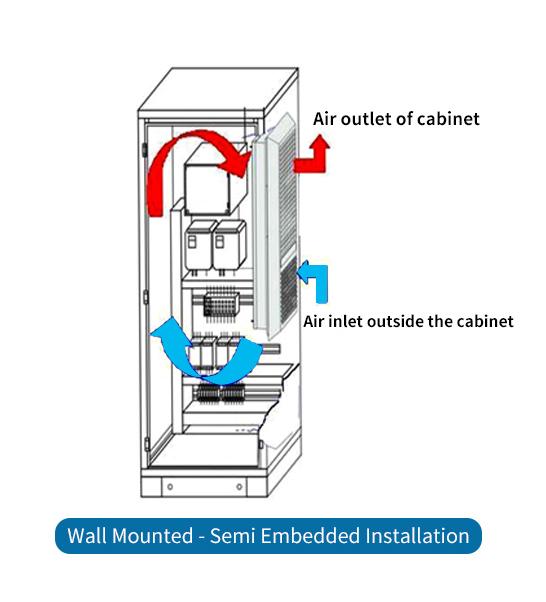

Coolnet EA series air conditioner has short air duct, well distributed airflow and close loop cooling design. The protective cover is integrated, thus no air conditioner cover is needed on cabinet. The benefits result from using cabinet air conditioner is greater operating efficiency, lower power consumption and longer life for heat sensitive equipment.
|
 |
 |
1.Good design,sable structure and easy maintenance.
2.Widely used for outdoor telecommunction cabinets,battery cabinets,electric cabinets and industry cabinets etc. 3.Door mounted,side mounted and top mounted available,cooling capacity ranges from 300W-5000W. 4.The protective level is IP55,can protect cabinet from moisture,dust and water.It can be installed indoor and outdoor,run at high ambient temperature of 55℃. 5.Digital temperature controller and high precision of temperature control. 6.The main components have CE certifications,which can meet EU RoHS requirements. With rotary compressor, high reliability, less energy consumption No air exchange between the cabinet air and cabinet air Direct drive high-static pressure centrifugal fan, low-noise, big volume, and efficiency
The reasonable structure of the return air, avoid air cycle short circuit
Small volume, light weight; easy to installation,use and maintenance.
|
Technical Specification
| Model | EA-300 | |
| Power Supply( V,Hz) | 1P 220,50 | |
| Dimension (mm) | W | 286 |
| H | 445 | |
| D | 175 | |
| Cooling Capacity | 300W | |
| Running Current | 1.48A | |
| Starting Current | 6.5A | |
| Power | 287W | |
| Refrigerant Type | R134a | |
| Noise Level | 55dB | |
| Cabinet Protection Ration | internal circuit | IP34 |
| external circuit | IP33 | |
| Cabinet Temperature Limits | 25℃~38℃(Factory Set 30℃) | |
| Ambient Temperature Limits | -5℃~43℃ | |
| Power Connection | Triangle Power Plug( 2 Meters Length) | |
| Weight | 15Kg | |
| Color | RAL 7035(Light Gray) | |
| Flow Rate | internal circuit | 70m3/h |
| external circuit | 150m3/h | |
| Temperature Control Type | Digital Display | |
|
Test condition: dry bulb temperature inside the cabinet 35 ℃, wet bulb temperature 26 ℃; dry-bulb temperature outside the cabinets 35 ℃ |
||
