220VAC 50Hz 300W Cooling Capacity Door Mounted Electrical Cabinet Air Conditioner for Telecom Sites
220VAC 300W 1000BTU 50Hz Electric Thermoelectric Cabinet Air Conditioner
Product Introduction
| Outdoor integrated energy-saving cabinet is a good product with safety, reliability, strong anti-theft performance, low noise, good heat dissipation and small space occupation. Another feature of this product is that it can meet the rapid construction of the station, the product delivery to the site, the three pods after the installation is complete, the power lines and reserved for good terminal docking, power supply, heat exchangers, air conditioning, and other equipment can be used, without on-site installation of wiring. The integrated cabinet is suitable for outdoor realm, such as highway side, park, building roof, mountainous area, flat land installation of the cabinet, the cabinet can be installed inside the base station equipment, power supply equipment, battery, temperature control equipment, transmission equipment and other supporting equipment or for the above equipment reserved installation space and heat exchange capacity, can provide reliable mechanical and environmental protection for the normal operation of internal equipment cabinet. The integrated cabinet is composed of battery cabinet, power supply cabinet and equipment cabinet, making full use of the available space inside each cabinet. |  |
Benefits
 |
The EA 300 is a compact, high efficient hybrid air conditioner with heat exchanger. The design is optimized for applications with limited space available, but where functionality and performance still cannot be compromised. Ø 220VAC for air conditioner, -48VDC for heat exchanger Ø 3000W cooling capacity @L35L35 Ø 120w/k heat exchanger Ø Compact design Ø Door mounted – easy integration in outdoor cabinets and enclosures Ø Wide working temperature range: -40ºC to +55 ºC Ø Air conditioner and heat exchanger system as backup Ø Energy saving, different cooling mode for varied ambient conditions Ø Low noise, the noise level of unit can be reduced according to the heat load, silently operating in most time Ø Lifetime >10 years – minimum maintenance Ø Environmental friendly – R134a and RoHS compliant Ø IP55 and Corrosion Proof Ø Dedicated design by delay start Ø RS485 for remote control |
Technical Specification
| Model | EA-300 | |
| Power Supply( V,Hz) | 1P 220,50 | |
| Dimension (mm) | W | 286 |
| H | 445 | |
| D | 175 | |
| Cooling Capacity | 300W | |
| Running Current | 1.48A | |
| Starting Current | 6.5A | |
| Power | 287W | |
| Refrigerant Type | R134a | |
| Noise Level | 55dB | |
| Cabinet Protection Ration | internal circuit | IP34 |
| external circuit | IP33 | |
| Cabinet Temperature Limits | 25℃~38℃(Factory Set 30℃) | |
| Ambient Temperature Limits | -5℃~43℃ | |
| Power Connection | Triangle Power Plug( 2 Meters Length) | |
| Weight | 15Kg | |
| Color | RAL 7035(Light Gray) | |
| Flow Rate | internal circuit | 70m3/h |
| external circuit | 150m3/h | |
| Temperature Control Type | Digital Display | |
|
Test condition: dry bulb temperature inside the cabinet 35 ℃, wet bulb temperature 26 ℃; dry-bulb temperature outside the cabinets 35 ℃ |
||
Factory View

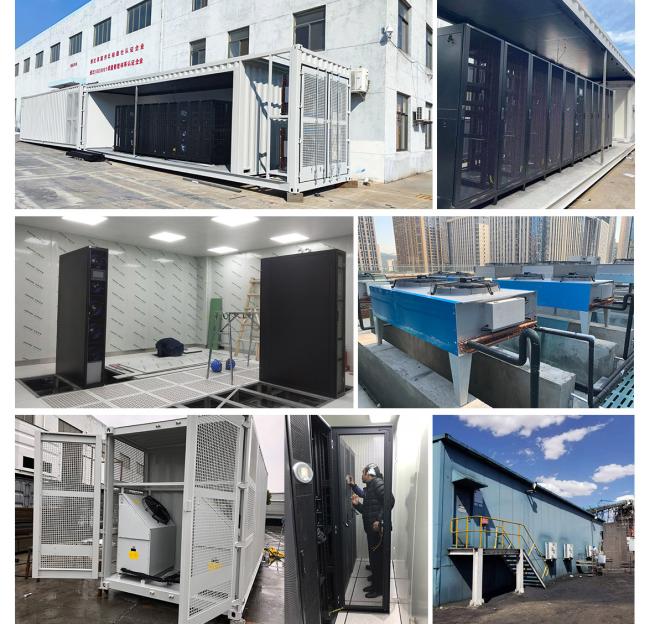

Case
