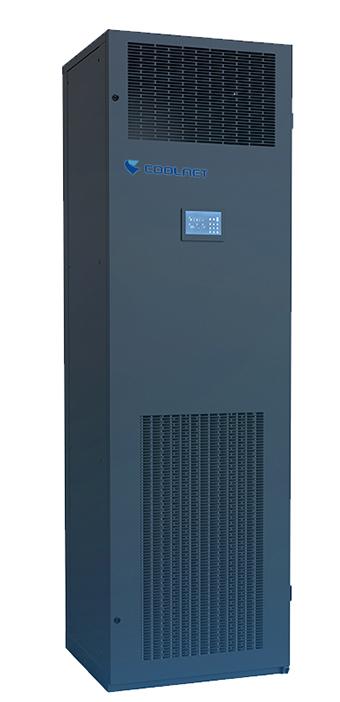

380V Floor Standing Computer Room Air Conditioner with R407C Refrigerant for Telecommunications Exchange
380V Computer Room Air Conditioners For Telecommunications Exchange Room
|
Product Introduction Coolnet power precision air conditioning units are widely used in such special places as telecom, bank, museum, laboratory, wafer fab and hospital operating room where ambient temperature, humidity and clealiness are highly demanding. Cool-smart series have the following features: Fully intelligent and precise control of constant temperature and humidity function, high sensible heat ratio, high energy efficiency refrigeration system design, large air volume, small enthalpy difference design, to meet the professional temperature control needs of the computer room, ultra-wide grid adaptability, phase sequence fault-tolerant wind.
Applications
|
 |
|

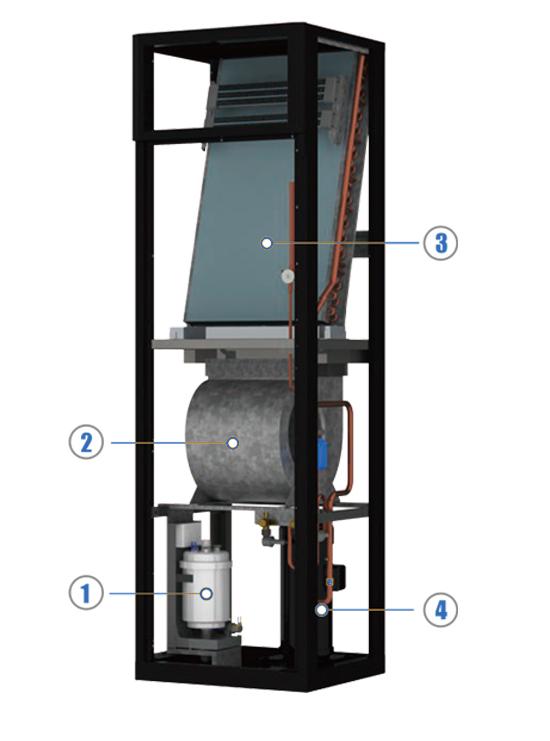

Structure & Componenets |
 |
Comprossor • Adopt environmentally friendly refrigerant R410A, high performance
• The compressor has strong ability to withstand impurities and liquid shock
• Powerful built-in protection functions, including built-in motor disconnection protection (temperature and current), built-in pressure relief valve, built-in exhaust temperature protection, built-in anti-stop reverse stop valve, etc.
Fan
• Backward centrifugal fan
• Efficient, improve the energy efficiency ratio of the whole machine
• Low noise
• The air volume is more than 35% higher than the air volume of the comfort air conditioner with the same cooling capacity
Humidifier
• Direct electrode humidifier
• Fuzzy logic control humidification program
• Removable for cleaning
• Microcomputer-controlled automatic flushing cycle process
• Low noise water supply solenoid valve to ensure quietness
• Automatic failure prevention during operation
|
|
Technical Parameters |
| Model | M04 | M06 | M08 | M13 | M16 | M20 | |
| Power Supply | 220V1Ph-50Hz | 380V3Ph-50Hz | |||||
| Air discharge | Up Front/Down | ||||||
| Technical Data Sheet | |||||||
| AC Fan | Total cooling capacity-KW | 4.2 | 6.4 | 7.5 | 12.5 | 16.8 | 20.2 |
| Sensible cooling capacity-KW | 3.9 | 5.8 | 6.9 | 11.3 | 15.3 | 18.3 | |
| Unit FLA-A(heating, humidifying type) | 20.0 | 25.0 | 16.8 | 22.0 | 23.5 | 28.6 | |
| Compressor Quantity | 1 | ||||||
| Fan Quantity | 1 | ||||||
| Air Volume-m3/h | 1600 | 1900 | 2300 | 3600 | 5100 | 6500 | |
| Heater Capacity-KW | 3.0 | 3.0 | 6.0 | 6.0 | 6.0 | 6.0 | |
| Humidification-kg/h | 3 | 3 | 3 | 3 | 6 | 6 | |
| Power of humidifier-KW | 2.3 | 2.3 | 2.3 | 2.3 | 4.5 | 4.5 | |
| Outdoor Condenser | |||||||
| Model | SCA020 | SCA020 | SCA030 | SCA030 | SCA050 | SCA050 | |
| Standard unit operating temperature range-℃ | -15-45℃ | ||||||
| Low Temperature Components Operating Temperature Range-℃ | -40-45℃ | ||||||
|
Certificates
Factory Details

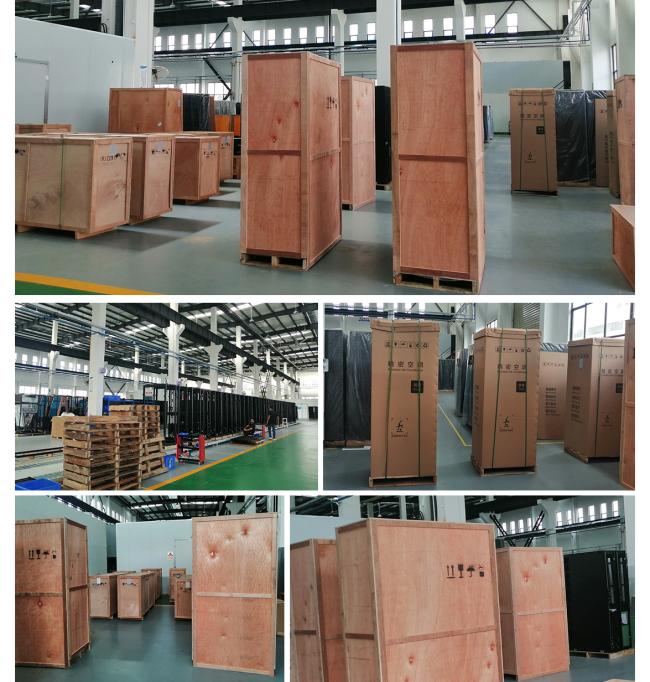

Packing & Delivery
|

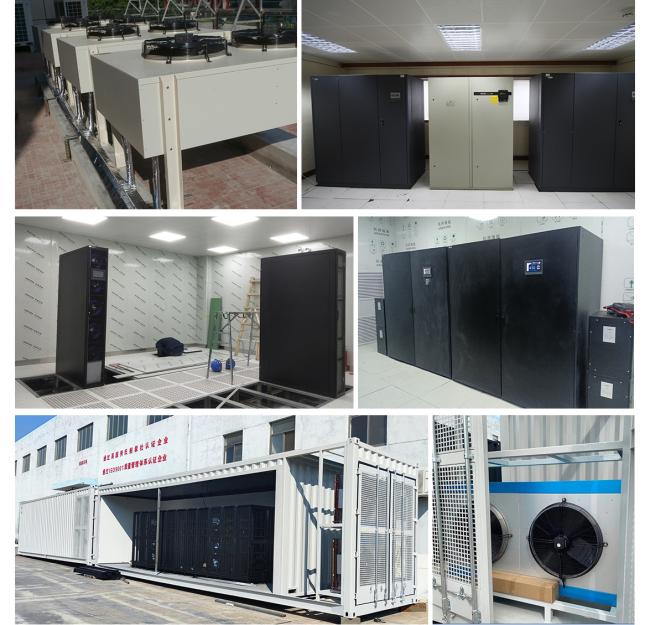

Case
