R407C Refrigerant 10-20KW Server Room Air Conditioning Unit Floor Standing for Computer Rooms
R407C 10-20KW Server Room And Power Distribution Room Dedicated Air Conditioning Units
| Product Introduction
Computer room air conditioners are dedicated to computer rooms with communication equipment, computers, precision equipment, etc.. They can realize the high-efficiency control of ambient temperature and humidity more accurately than traditional air conditioners. Only in this way can the equipment ensure long-term stable and continuous operation. Cool-Smart series CARC are designed for small and medium computer rooms, base stations, computer rooms, etc. Cool-Smart has the advantages of high air volume, low enthalpy, high reliability, high efficiency, long working life and energy saving.
Application
|
 |

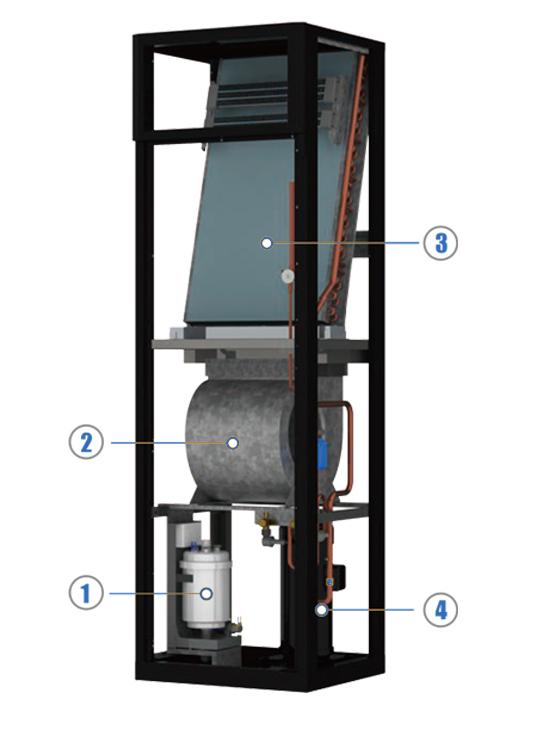

Structure & Components
 |
Comprossor • Adopt environmentally friendly refrigerant R410A, high performance
• The compressor has strong ability to withstand impurities and liquid shock
• Powerful built-in protection functions, including built-in motor disconnection protection (temperature and current), built-in pressure relief valve, built-in exhaust temperature protection, built-in anti-stop reverse stop valve, etc.
Fan
• Backward centrifugal fan
• Efficient, improve the energy efficiency ratio of the whole machine
• Low noise
• The air volume is more than 35% higher than the air volume of the comfort air conditioner with the same cooling capacity
Humidifier
• Direct electrode humidifier
• Fuzzy logic control humidification program
• Removable for cleaning
• Microcomputer-controlled automatic flushing cycle process
• Low noise water supply solenoid valve to ensure quietness
• Automatic failure prevention during operation
|
| Features |
|
High Reliability
High Adaptability
High Energy-saving
Computer Room Dedicated
|
|
Product Specification
| Model | M04 | M06 | M08 | M13 | M16 | M20 | |
| Power Supply | 220V1Ph-50Hz | 380V3Ph-50Hz | |||||
| Air discharge | Up Front/Down | ||||||
| Technical Data Sheet | |||||||
| AC Fan | Total cooling capacity-KW | 4.2 | 6.4 | 7.5 | 12.5 | 16.8 | 20.2 |
| Sensible cooling capacity-KW | 3.9 | 5.8 | 6.9 | 11.3 | 15.3 | 18.3 | |
| Unit FLA-A(heating, humidifying type) | 20.0 | 25.0 | 16.8 | 22.0 | 23.5 | 28.6 | |
| Compressor Quantity | 1 | ||||||
| Fan Quantity | 1 | ||||||
| Air Volume-m3/h | 1600 | 1900 | 2300 | 3600 | 5100 | 6500 | |
| Heater Capacity-KW | 3.0 | 3.0 | 6.0 | 6.0 | 6.0 | 6.0 | |
| Humidification-kg/h | 3 | 3 | 3 | 3 | 6 | 6 | |
| Power of humidifier-KW | 2.3 | 2.3 | 2.3 | 2.3 | 4.5 | 4.5 | |
| Outdoor Condenser | |||||||
| Model | SCA020 | SCA020 | SCA030 | SCA030 | SCA050 | SCA050 | |
| Standard unit operating temperature range-℃ | -15-45℃ | ||||||
| Low Temperature Components Operating Temperature Range-℃ | -40-45℃ | ||||||
