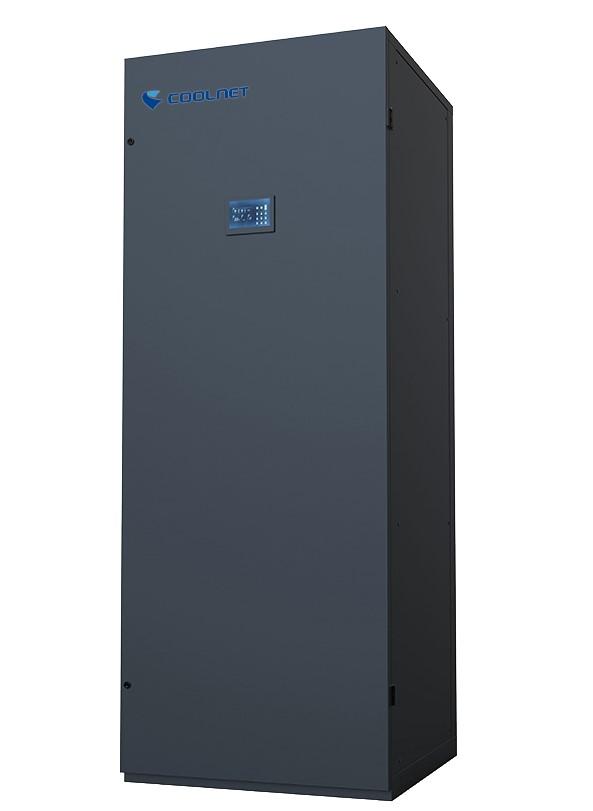

R407C Refrigerant Precision Air Conditioner with 8-20KW Cooling Capacity for Floor Standing Computer Room Air Conditioning Units
Low Energy Consumption Precise Air Conditioners For Small Size Industrial Clean Rooms
|
Product Introduction The high-efficiency PAC in the equipment room ensures the cleanliness, temperature and humidity of the equipment room, and effectively reduces the PUE of the equipment room. Cool-smart series has the following characteristics: full intelligent and precise control of constant temperature and humidity, high sensible heat ratio, large air volume, and small enthalpy difference. In addition, Coolnet-smart has a small footprint and low energy consumption, which can meet the environmental control of small and medium-sized computer rooms for professional needs.
Features & Benefits
|
 |
||
 |

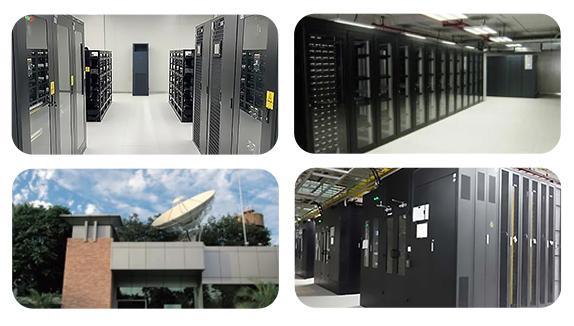

Applications
|
||
 |

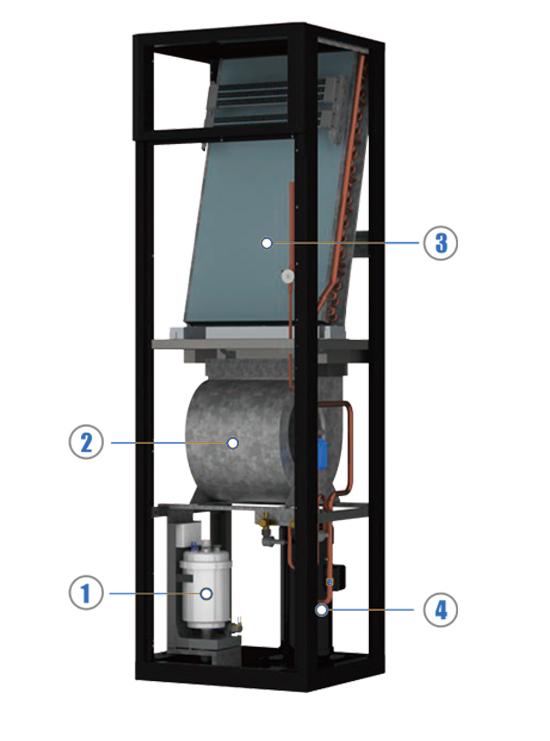

R410AHigh-efficiency Comprossor • Adopt environmentally friendly refrigerant R410A, high performance
• The compressor has strong ability to withstand impurities and liquid shock
• Powerful built-in protection functions, including built-in motor disconnection protection (temperature and current), built-in pressure relief valve, built-in exhaust temperature protection, built-in anti-stop reverse stop valve, etc.
Condenser stepless speed regulation
• Stepless speed regulation of condenser
• Energy saving
• Anti-corrosion and long-life design
• The condenser is easy to install and can be installed on the roof or foundation platform
• Small size and light weight
• Ultra low noise
Large area hydrophilic evaporator
• Large area
• 25% larger than the comfort air conditioner in the same power section
• Large pipe diameter design, less pressure loss, high efficiency
• Internal thread
• Hydrophilic membrane
• High-efficiency heat exchange aluminum fins
• High withstand voltage design
|
||
Product Parameters
| Model | M04 | M06 | M08 | M13 | M16 | M20 | |
| Power Supply | 220V1Ph-50Hz | 380V3Ph-50Hz | |||||
| Air discharge | Up Front/Down | ||||||
| Technical Data Sheet | |||||||
| AC Fan | Total cooling capacity-KW | 4.2 | 6.4 | 7.5 | 12.5 | 16.8 | 20.2 |
| Sensible cooling capacity-KW | 3.9 | 5.8 | 6.9 | 11.3 | 15.3 | 18.3 | |
| Unit FLA-A(heating, humidifying type) | 20.0 | 25.0 | 16.8 | 22.0 | 23.5 | 28.6 | |
| Compressor Quantity | 1 | ||||||
| Fan Quantity | 1 | ||||||
| Air Volume-m3/h | 1600 | 1900 | 2300 | 3600 | 5100 | 6500 | |
| Heater Capacity-KW | 3.0 | 3.0 | 6.0 | 6.0 | 6.0 | 6.0 | |
| Humidification-kg/h | 3 | 3 | 3 | 3 | 6 | 6 | |
| Power of humidifier-KW | 2.3 | 2.3 | 2.3 | 2.3 | 4.5 | 4.5 | |
| Outdoor Condenser | |||||||
| Model | SCA020 | SCA020 | SCA030 | SCA030 | SCA050 | SCA050 | |
| Standard unit operating temperature range-℃ | -15-45℃ | ||||||
| Low Temperature Components Operating Temperature Range-℃ | -40-45℃ | ||||||
|
